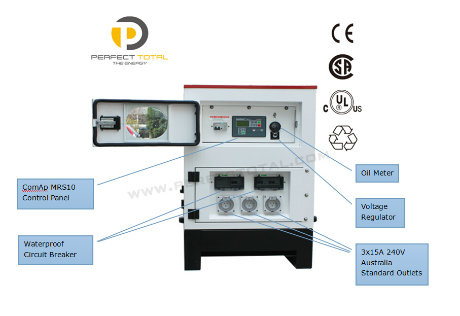

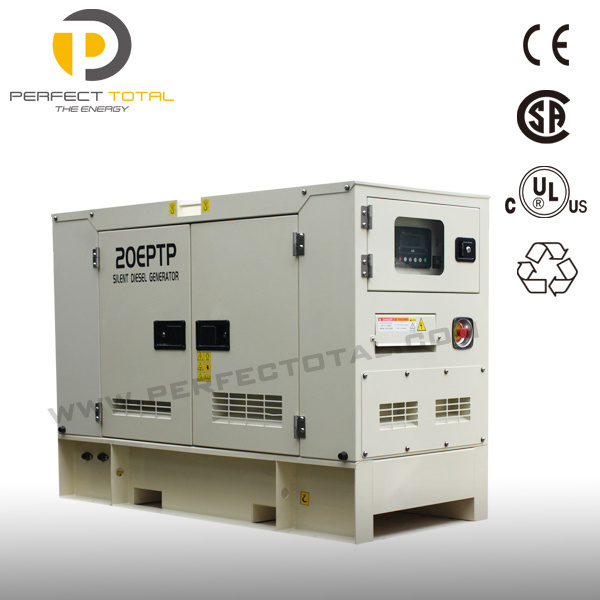

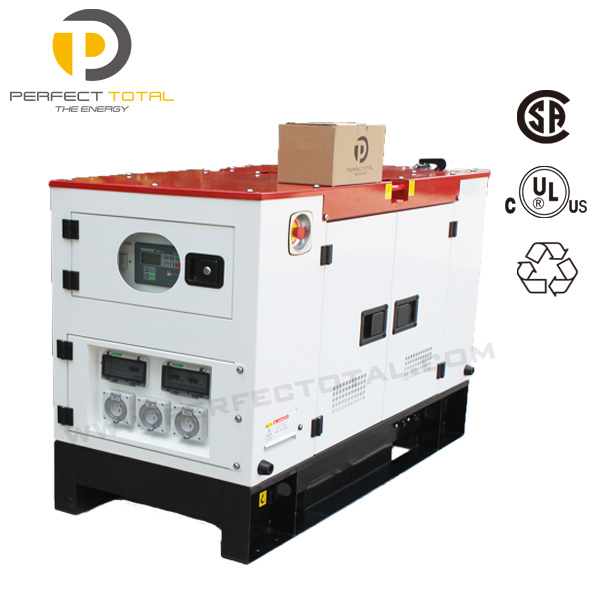

SILENT DIESEL GENERATOR1. ISUZU Engine
2. STAMFORD or LEORY SOMER Alternator
3. 3 phase 4 wire
4. 50Hz,
5. 1500RPM
6. 20 days delivery time
| Genset Model Soundproof type | 30EPTI |
| SET | Rated power(Kw/kva) | 24KW/30KVA |
| Frequency(Hz) | 50 |
| Pahse | 3 phase |
| Voltage(V) | 230/400v |
| Current(A) | 43 |
| Fuel capacity(L) | 82 |
Fuel consumption(L/Hour)
| 4.5 |
| Dimension (mm) | L | 2000 |
| W | 850 |
| H | 1060 |
| Weight(kg) | 820 |
| Noice level for silent type (Db/7m) | 58 |
| ENGINE | Model | 4JB1T |
| Prime power(kw/kva) | 24/30 |
| Cylinders | 4 |
| Bore× stroke(mm) | 93× 102 |
| Intake Method | Turbo Charge |
| Displacement(L) | 2.771 |
| Speed governing | Mechanical governor |
| Cooling starting method | Water cooling |
| ALTERNATOR | Model | 184G STAMFORD |
| Rated power(kw/kva) | 25/31.3 |
| Insulation class | H |
| Alternator enclosure | IP23 |
| THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50° C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION. |
HANGZHOU PERFECT TOTAL MACHINERY Co., Ltd. Built at 2014 Year and we have 14 years experience of doing Diesel Generator, Light Tower. We are Specialized in production and sales of diesel generators, super-silent generator, REEFER CONTAINER generator, mobile light tower, plant oil generator, message signs, construction machine, and the development of new products. We have much experience in manufacture and have strong technical strength. All products are of good quality and we are able to offer the efficient service, therefore the products are popular in our clients and enjoy and excellent reputation. We have big market in Dubai, Australia, Canada, USA, Malaysia, ...etc market. Offering OCEA power system equipment and high-quality service to over 200contries. We can do Generator power ranges from 5kVA to2200kVA. According to the functions, we offer common type (standard), automation, trailers, Van, low noise, and other series. We can design and manufacture the special specification and models in accordance with the customers' requirements. We would like to invite reliable partner join us!
