Shandong Lvhuan Power Equipment Co., Ltd is a pioneer and practitioner in green energy and renewable resources.
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Scope of application: Biogas generator set is widely used in the many area where can generate biogas, like rubbish landfill, livestock excrement disposal, industrial organism disposal.
|

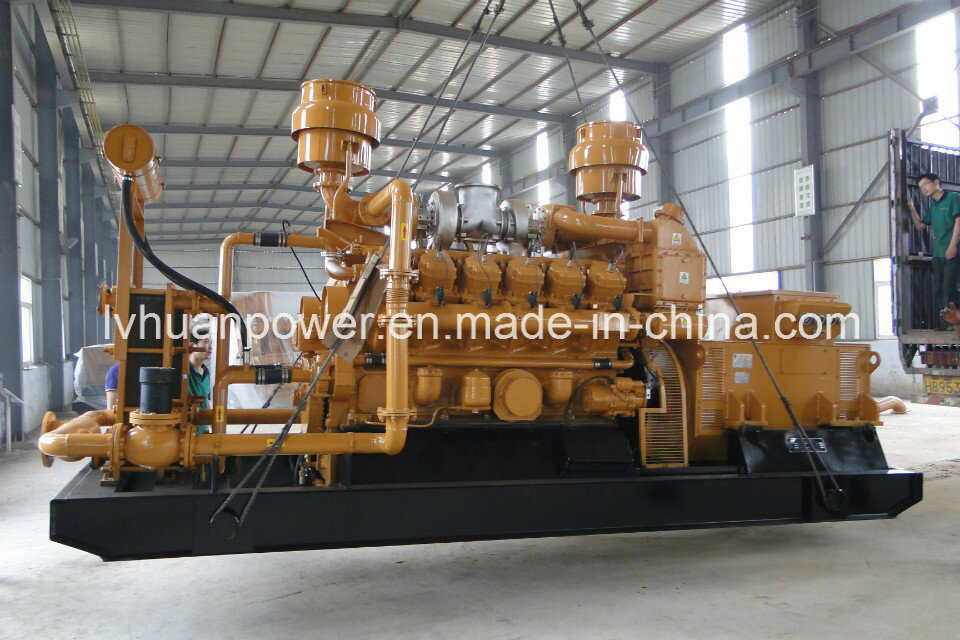

Parameter of Coal Gas Generator Set |
|
Model Number (Engine Type) |
LHCG500 |
|
Brand Name |
LVHUAN |
|
Prime Power/Standby Power |
400KW/500KW |
|
Rated Speed |
1000/1200RPM |
|
Rated Frequency |
50/60Hz |
|
Rated Voltage |
400V/230V |
|
Phase |
AC 3-Phase, 4 wire |
|
Voltage Stability |
≤±2% |
|
Voltage transient |
≤±10% |
|
Voltage Stable time |
≤1s |
|
Heat consumption |
≤11mj/kw.h |
|
Lubricant Consumption |
≤1.0g/kw.h |
|
Engine Capacity |
71.4L |
|
Cylinder Number |
12-V |
|
Cylinder Bore |
190mm |
|
Stroke |
210mm |
|
Starting System |
DC 24V electric motor |
|
Cooling method |
water cooler |
|
Lubricant method |
Passive and flying lubricant |
|
Isolation class |
H |
|
Protection |
IP23 |
|
Alternator |
Siemens |
|
Power Factor |
0.8 lagging |
|
Exciting method |
brushless |
|
Colour |
your choice |
|
Certificates |
ISO 9001:2008, CE |
|
Warranty |
1 year or 1000 running hours which arrives first |
|
Type |
Open |
|
Control system |
Automatic alarm system |
|
Size |
6200x2100x2800mm |
|
Weight |
12500kg |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
