ISO CE approve engine power natural gas generatorPower arrang from 10kw--1000kw Brand can provide:
Lvhuan: 10kw-600kw
Cummins: 20kw-500kw
MWM: 400kw-800kw
Jichai: 800kw-1200kw
natural gas generator Conditions for Using 1. within 1m from pressure regulating valve of gas intake.
2. the ratio of CH4 in natural gas not less than 70%;
3.Pressure of natural gas :80-200kpa,rate of pressure change less than 1kpa/min
4.H2S should not more than 200mg/Nm³.
5. impurity particle size not more than 5µm ,impurity content not more than 30mg/Nm³.
6. Moisture content not more than 40g/Nm³. Why you chioce Shandong Lvhuan Power equipment Co.,Ltd. natural gas generator?
1. we are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2. products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw ;
3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc. certificats.And passed many patents.
4. Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.5. we have many cooperation companies :like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
Service for natural gas generator:1.pre-sale service:(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings.
2.Sale service:(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Or send your staff to our company train you till you can operate the generator set.
3.After-sale service:(1)our engineers are in charge of different area,we will response periodically and support you technical service free of charge.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
4.Spare parts service:
(1)Please provide parts No.s We can supply to you all engine/generator spare parts as your demand,
(2)All parts were from original factories or professional factories,complete in specification,keep good quality.

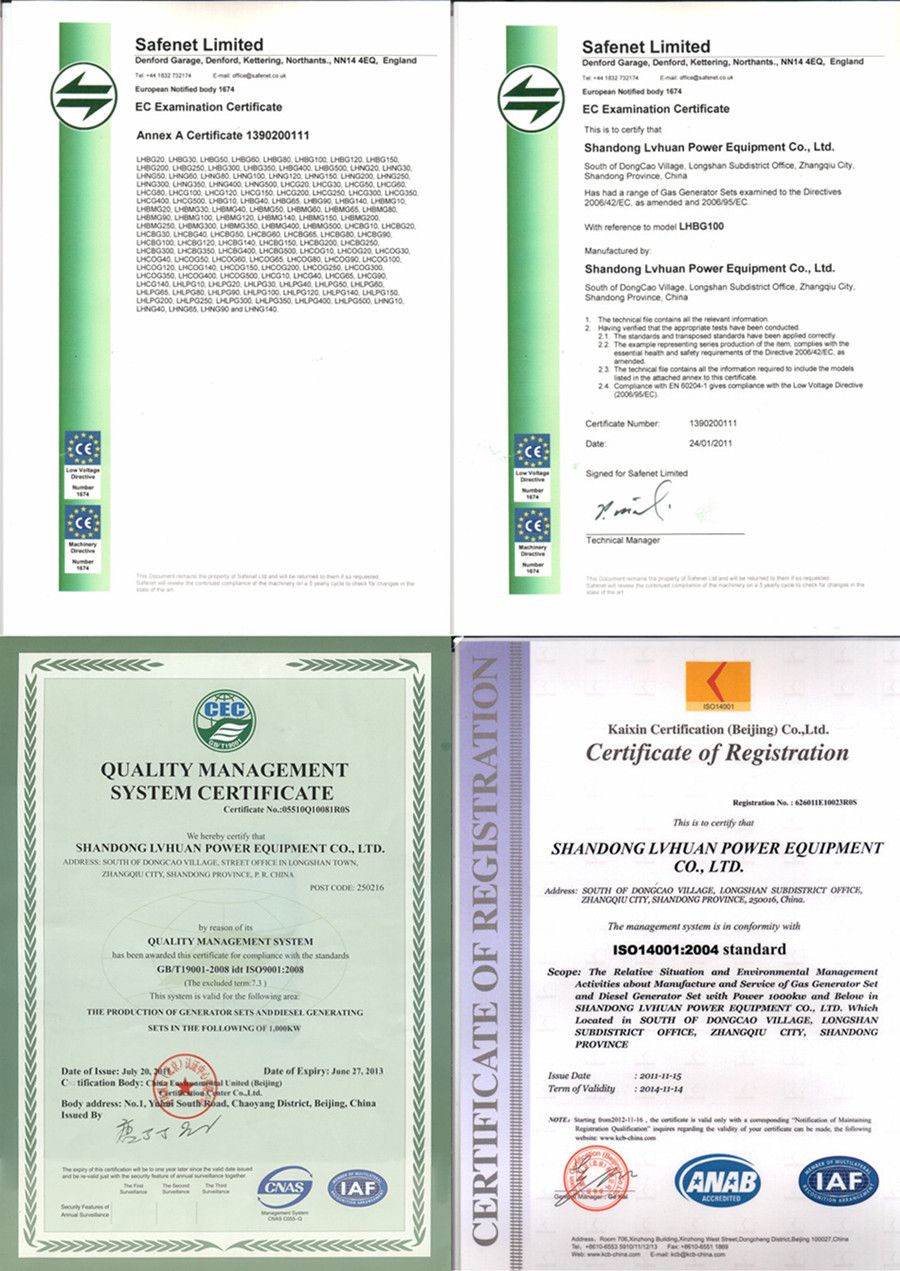

Certifications for natural gas generator:
natural gas generator main parameter:Model Number | LHNG20-600 |
Brand Name | LVHUAN |
Engine Type | 2105L-12V190ZLDT1 |
Continuous Power | 20kw-600kw |
Rated Speed | 1000r/min-1200r/min |
Rated Frequency | 50HZ/60Hz |
Rated Voltage | 400/230V |
Phase | AC 3-Phase, 4 wire |
Voltage Stability | ≤±2% |
Voltage transient | ≤±10% |
Voltage Stable time | ≤1 s |
Heat consumption | ≤9800 KJ/Kw.h |
Gas consumption | ≤0.3 m3 |
Engine Capacity | 71.4 L |
Cylinder Number | 2L-12V |
Cylinder Diameter | 190mm |
Range | 210mm |
Starting System | 24V electic motor |
Cooling method | closed/opened |
Lubricant method | Passive and flying lubricant |
Isolation class | H |
Protection | IP23 |
Alternator | Leory Somer/Siemens |
Power Factor | 0.8 lagging |
Exciting method | brushless |
Colour | your choice |
Certificates | ISO 9001, ISO14001, CE Certificate |
Warranty | 1 year or 1000 running hours |
Type | Open |
Control system | Automatic alarm system |
Size | 6200x2040x2780mm |
Weight | 12000 |
More details please feel free to asked.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
