The parameter of electrolyzer of Hydrogen Generator for Power Plant
Model |
Main Part Frame |
Length (mm) |
Width (mm) |
Height(mm) |
Frame Description |
DQ-5/3.2 |
Frame I |
3000 |
2000 |
2150 |
Electrolizer, gas-liquid treatment and gas product purifier |
Frame II |
1740 |
1100 |
270 |
hydrogen pressure reducing and distributing frame |
Frame III |
1500 |
1100 |
1500 |
Feed water tank, lye tank, and feed water pump |
DQ-10/3.2 |
Frame I |
3000 |
2000 |
2450 |
Electrolizer, gas-liquid treatment and gas product purifier |
Frame II |
1800 |
1700 |
270 |
hydrogen pressure reducing and distributing frame |
Frame III |
1740 |
1100 |
1360 |
Feed water tank, lye tank, and feed water pump |
The parameter of Hydrogen Generator for Power Plant
Model |
Hydrogen output
(m3/h) |
Oxygen output
(m3/h) |
Operating pressure (MPa) |
DC power consumption (KW.h/m3) |
Hydrogen purity (%) |
Hydrogen Dew Point (degrees Centigrade) |
Control method |
Overhaul life of electrolyzer |
DQ-5/3.2 |
5 |
2.5 |
3.2 |
≤4.9 |
99.8~99.999 |
≤-50 |
PLC |
5-10 years |
DQ-10/3.2 |
10 |
5 |
3.2 |
≤4.9 |
99.8~99.999 |
≤-50 |
PLC |
5-10 years |
Product features

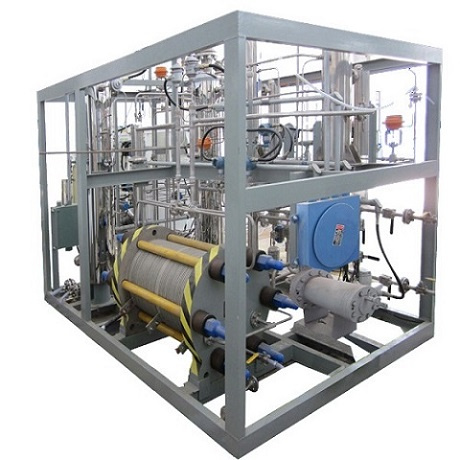

Hydrogen Generator for Power Plant Product Introduction:
1. Equipment composition:
Main equipment: |
Mechanical equipment: Electrolyzer, gas-lye separation frame |
Electrical equipment: Rectifier cabinet, control cabinet |
Auxiliary equipment |
feed water tank, lye tank and feed water pump. |
2. The type of electrolyzer: bi-polar filter.
3. Features:
- Compact skid-mounted structure
- Easy installation and operation
- Advanced design
- Reliable performance
- Ultra pure gas
- Adjustable output
- Lower power consumption
- Complete automatic control
Suzhou Jingli Hydrogen Production Equipment Co., Ltd ("SJH" for short) was founded in Suzhou, China in 1993 with 25 million RMB registered capital and more than 160 million RMB assets. It is a new and high-tech enterprise of Jiangsu province, which integrates R&D, manufacture of water electrolysis hydrogen generator and hydrogen treatment equipment. SJH currently employs more than 180 people, and over 40 percent of them are professional technicians. It has 80 sets of hydrogen generator production capacity annually, and is equipped with complete series of machining, assembly, electric control, instruments, cold-forming, gaskets pressing workshops and facilities.
Till now, SJH has developed 8 series hydrogen generator with 30 models (hydrogen capacity 0.3m³ /h-1000m³ /h), and all the major technical performance index reach or approach the international advanced level. SJH has gained "CE" certification and achieved many national patents regarding electrolyzer, gas-liquid separators, and diaphragm gasket and so on.
In 1995, SJH successfully developed the first largest hydrogen generator (200m3/h) controlled automatically by PLC in China, and won the "Top China" title. In 2005, another bigger one (375m3/h) passed the test, which was approved to be new technology and achievement by provincial economic information council and department of science & technology in 2006. In 2010 SJH developed successfully another biggest plant (500 m3/h), which also received the aforesaid approval.
Our products are widely used in many fields, such as new energy, chemical engineering, non-ferrous metals, building materials, power plant, glass industry, iron & steel, aerospace industry. Our customers are all over China and we also have exported to more than 20 countries and regions, such as the USA, Turkey, Vietnam, India, Korea, Nigeria, South Africa. SJH has become a professional hydrogen generator manufacturer with largest market share in China.
