The Parameter of hydrogen equipment Electrolyzer
Model |
H2 output
(m3/h) |
Pressure
(MPa) |
DC current
(A) |
DC voltage (V) |
DC power
consumption
(KW.h/m3) |
Dimension
ø* L*W(mm) |
Weight
(kg) |
DQ-30/3.2 |
30 |
3.2 |
1670 |
86 |
≤4.8 |
ø1048*2387*1162 |
4500 |
DQ-40/3.2 |
40 |
3.2 |
2480 |
78 |
≤4.7 |
ø1260*2265*1366 |
6500 |
DQ-50/3.2 |
50 |
3.2 |
2480 |
94 |
≤4.7 |
ø1260*2509*1366 |
7500 |
DQ-60/3.2 |
60 |
3.2 |
2480 |
114 |
≤4.7 |
ø1260*2813*1366 |
8600 |
DQ-80/1.6 |
80 |
1.6 |
4600 |
80 |
≤4.6 |
ø1560*2336*1720 |
8500 |
DQ-100/1.6 |
100 |
1.6 |
4600 |
102 |
≤4.6 |
ø1560*2670*1720 |
10000 |
DQ-150/1.6 |
150 |
1.6 |
4600 |
156 |
≤4.6 |
ø1560*3400*1720 |
12000 |
DQ-200/1.6 |
200 |
1.6 |
6600 |
142 |
≤4.5 |
ø1790*3150*1926 |
15000 |
DQ-250/1.6 |
250 |
1.6 |
6600 |
174 |
≤4.5 |
ø1790*3700*1926 |
18000 |
DQ-300/1.6 |
300 |
1.6 |
6600 |
210 |
≤4.4 |
ø1830*4355*1978 |
25000 |
DQ-350/1.6 |
350 |
1.6 |
6600 |
242 |
≤4.4 |
ø1830*4835*1978 |
28000 |
DQ-400/1.6 |
400 |
1.6 |
6600 |
276 |
≤4.4 |
ø1830*5315*1978 |
30000 |
DQ-500/1.6 |
500 |
1.6 |
8200 |
280 |
≤4.4 |
ø2036*5620*2178 |
40000 |
DQ-800/1.6 |
800 |
1.6 |
10200 |
376 |
≤4.4 |
ø2250*6880*2400 |
49200 |
DQ-1000/1.6 |
1000 |
1.6 |
10200 |
468 |
≤4.4 |
ø2250*8200*2400 |
61500 |

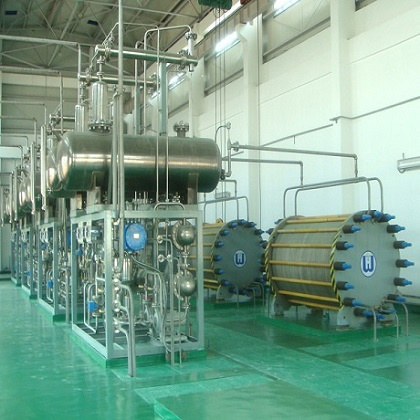

Detailed Images
Features for our hydrogen equipment
1. Product H2 purity can reach Minimum 99.8% , Dew point -60°c ,with medium-pressure 3.2Mpa.
2. All the process equipments are assembled in a frame, so it's easy for delivery and installaltion.
3. The entire process of H2 making and purifying are complete PLC automatic control, so startup and stop with one button is achieved.
4. PLC control makes high safety, which monitors pressure,temperaure, flow etc. of hydrogen equipment online .
5. The output can be adjusted from 50% to 100 %.
6. The design lifetime of electrolyzer is for 30 years, which overhaul period is for 5-10 years.
7. The whole H2 equipment can be designed and manufactured as per customer's requirement.
8. Stable performance, reasonable structure, easy installation.
9. we are the largest professional manufacturer of water electrolysis hydrogen equipment
in China.
Electrolyzer is the key part of a hydrogen equipment, electrolyzer manufactured by our company features:
1 Excellent appearance with compact structure.
2 Ultra specific surface area of the negative electrode
3 Perfect soft connection
4 Longer service life
Our company has many patents regarding the manufacturing of water electrolyzer, such as
Item |
Description |
Patent Type |
Patent Series N0. |
Issuing Authority |
1 |
Manufacture process for diaphragm gasket |
Invention Patent |
ZL97106875.5 |
China Patent Bureau |
2 |
Pressed filter bi-polar plate |
Utility Model Patent |
ZL97207307.8 |
China Patent Bureau |
3 |
Electrolyzer |
Utility Model Patent |
ZL94241768.2 |
State Intellectual Property Office |
4 |
Anti-corrosion vessel for hydrogen generating plant |
Utility Model Patent |
ZL200620076824.8 |
State Intellectual Property Office |
5 |
Welding equipment for water electrolysis electrode plate |
Utility Model Patent |
ZL201020668648.3 |
State Intellectual Property Office |
Suzhou Jingli Hydrogen Production Equipment Co., Ltd ("SJH" for short) was founded in Suzhou, China in 1993 with 25 million RMB registered capital and more than 160 million RMB assets. It is a new and high-tech enterprise of Jiangsu province, which integrates R&D, manufacture of water electrolysis hydrogen generator and hydrogen treatment equipment. SJH currently employs more than 180 people, and over 40 percent of them are professional technicians. It has 80 sets of hydrogen generator production capacity annually, and is equipped with complete series of machining, assembly, electric control, instruments, cold-forming, gaskets pressing workshops and facilities.
Till now, SJH has developed 8 series hydrogen generator with 30 models (hydrogen capacity 0.3m³ /h-1000m³ /h), and all the major technical performance index reach or approach the international advanced level. SJH has gained "CE" certification and achieved many national patents regarding electrolyzer, gas-liquid separators, and diaphragm gasket and so on.
In 1995, SJH successfully developed the first largest hydrogen generator (200m3/h) controlled automatically by PLC in China, and won the "Top China" title. In 2005, another bigger one (375m3/h) passed the test, which was approved to be new technology and achievement by provincial economic information council and department of science & technology in 2006. In 2010 SJH developed successfully another biggest plant (500 m3/h), which also received the aforesaid approval.
Our products are widely used in many fields, such as new energy, chemical engineering, non-ferrous metals, building materials, power plant, glass industry, iron & steel, aerospace industry. Our customers are all over China and we also have exported to more than 20 countries and regions, such as the USA, Turkey, Vietnam, India, Korea, Nigeria, South Africa. SJH has become a professional hydrogen generator manufacturer with largest market share in China.
