Main Technical Specifications:
Gas Treatment: (10-500)Nm3/h
Adsorption Pressure: 0.8Mpa-2.4Mpa
H2 Purity: 99.9-99.999%
Dew Point: -60º C

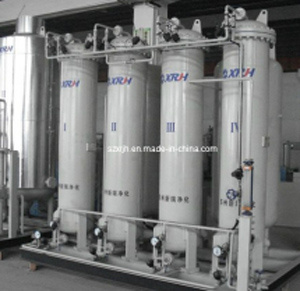

The Principle of PSA Hydrogen Generator
Under certain pressure, take advantage of the adsorption bed composed of many absorbent like activated carbon, silicon dioxide, molecular sieve and alumina, the hydrogen generator selectively adsorbs the impure components in the gas source with hydrogen included such as dissociated methanol, gas released from synthesis ammonia pool, catalytic cracking dry gas in the oil refinery, shift gas, water gas and semi-water gas under pressure, while hydrogen which is difficult to adsorb is put out from the entrance of adsorption tower as the product gas. Therefore, hydrogen purification is realized.
The Flow chart
Model |
Capacity
(Nm³/h) |
Feed Gas |
Product Gas:Nitrogen as |
Gas source |
Pressure
(Mpa) |
Dew point
(ºC) |
Dew point
(ºC) |
Purity
(%) |
Pressure
(Mpa) |
Temperature |
XRFH29 |
5-3000 |
Mixed gas of hydrogen and nitrogen from ammonia decomposition or methanol cracking |
0.8-2.4 |
≤-60 |
≤-60 |
≥99 |
0.7-2.3 |
Ambient temperature |
XRFH39 |
≥99.9 |
XRFH49 |
≥99.99 |
XRFH59 |
≥99.9999 |
Suzhou Xinrui Purification Equipment Co., Ltd is a share-holding high-tech enterprise, which is located in Xuguan Industrial Park in New & High-tech Zone of Suzhou. Specializing in researching&producing, developing, designing, producing, manufacturing and selling as well as services of all kinds of industrial gas equipment, it provides professional industrial gas resource and matching products.
The company, always sticking to the concept of "people-oriented, practical-minded and innovation, customer foremost and quality first", is keeping on exploring actively and developing new crafts and technologies and constantly bringing in advanced technologies and scientific achievements home and broad. Several unique technologies of the company, such as Molecular sieve filling technology and systemic fully automatic technology, are widely used in dominating field of Petrochemical, chemical fiber, heat treatment, metallurgy, glass, food, medicine, electronics, national defense and aerospace, so on and so forth. Through new and advanced technologies, stable and reliable quality, rapid and professional service, strict and effective management, the company can provide the customers with more valuable techniques and products. Xinrui products bring in service concept from the beginning of designing, while sale is only the beginning of customer service. Taking clients as center, Xinrui reinforce each service work and fully implement the "customers satisfying project" to provide each single customer with professional, rapid and satisfying service.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
