Nitrogen offers a wide range of applications such as purging, firefighter, creating inert atmosphere, carrier gas, blanketing, packing, filling, plastic molding, so on and so forth, so nitrogen generation plant is alwaly used in many industries like refinery, metals, oil&gas, food, electronics, chemical industry, petrochemical, glass. And etc. Nitrogen generation plant by PSA(pressure swing adsorption)is a favorable choice for many users as it is an easy and reliable way for them to save money and give free control over the nitrogen gas use.
Technological Process

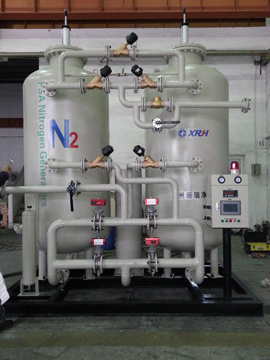

Nitrogen generation plant from our company are designed and manufactured based on the principle of Pressure Swing Adsorption(PSA) to separate nitrogen and oxygen from the compressed air. The separation takes place in two adsorption towers (A and B) filled with carbon molecular sieve. The process is based on the fact of faster kinetic diffusion of oxygen molecules into the pore structure of the carbon molecule sieve than that for nitrogen molecules.
Ambient air, having being compressed and purified to remove oil, water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with carcon molecular sieve(CMS). The compressed air flow to the adsorption tower from the bottom to up. In the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption tower and then enters then buffer tank for impure nitrogen. After a period of time, the CMS in the adsorption tower is saturated by the oxygen adsorbed. At this time, regeneration is needed. It is realized by stopping adsorbing step and reduce pressure in the adsorption tower. Adsorption and regeneration are conducted alternatively in the two adsorption towers to ensure the consecutive output of nitrogen gas.
In summary it consists of two main mechanisms
---Pressurization/adsorption
---Depressurization/ adsorption
The main features include:
-Automatic operation of the entire nitrogen generation plant
-Supervision of the technical parameters with safety show down and alarm in case of abnormal operation.
-Control of the process valve on a display.
-Sophisticated diagnostics
-The impurity /purity of the product is being check continuously by an automatic online-O2 analyzer.
Start up and shut down.
-The start up of the N2 generation plant is simply to push down operation. The product is being delivered within a short time from start up.
-At shut-down of the plant, a precisely defined program cycle continues to run for a few minutes before completes shut-down is reached. The absorbers are then in regeneration conditions and prepared for restart of operation. After restart product in accordance with specification can be produced within a few minutes.
-The PLC adjusts the process parameters accordingly.
The advantages:
-Quality oriented, low nitrogen product cost, high reliability, easy start-up and shutdown
-Fully automatic operation
-low investment-easy maintenance, modelar skid design.
-short delivery, installation and commissioning time.
Enhancement: To ensure the better quality, the main parts such as CMS and PLC, we use world famous brand of Japan.
Delivery Details:
Packaging details: Standard export packaging
Delivery details: Within 60-90days after receipt of the deposit
Model |
Capacity
(Nm³/h) |
Feed Gas |
Product Gas:Nitrogen Gas |
Pressure
(Mpa) |
Dew point
(ºC) |
Residual oil
(ppm) |
Dew point
(ºC) |
Purity
(%) |
Pressure
(Mpa) |
Temperature |
|
XRFD98 |
5-2000 |
0.7-1.0 |
≤-17 |
≤0.003 |
≤-40 |
≥98 |
0.6-0.9 |
Ambient Temperature |
|
XRFD29 |
≥99 |
|
XRFD295 |
≥99.5 |
|
XRFD39 |
≥99.9 |
|
XRFD49 |
≥99.99 |
Suzhou Xinrui Purification Equipment Co., Ltd is a share-holding high-tech enterprise, which is located in Xuguan Industrial Park in New & High-tech Zone of Suzhou. Specializing in researching&producing, developing, designing, producing, manufacturing and selling as well as services of all kinds of industrial gas equipment, it provides professional industrial gas resource and matching products.
The company, always sticking to the concept of "people-oriented, practical-minded and innovation, customer foremost and quality first", is keeping on exploring actively and developing new crafts and technologies and constantly bringing in advanced technologies and scientific achievements home and broad. Several unique technologies of the company, such as Molecular sieve filling technology and systemic fully automatic technology, are widely used in dominating field of Petrochemical, chemical fiber, heat treatment, metallurgy, glass, food, medicine, electronics, national defense and aerospace, so on and so forth. Through new and advanced technologies, stable and reliable quality, rapid and professional service, strict and effective management, the company can provide the customers with more valuable techniques and products. Xinrui products bring in service concept from the beginning of designing, while sale is only the beginning of customer service. Taking clients as center, Xinrui reinforce each service work and fully implement the "customers satisfying project" to provide each single customer with professional, rapid and satisfying service.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
