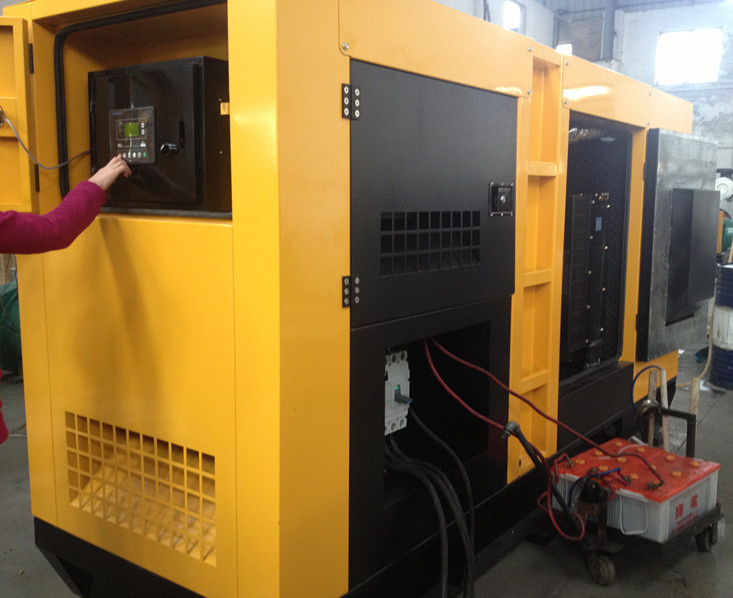

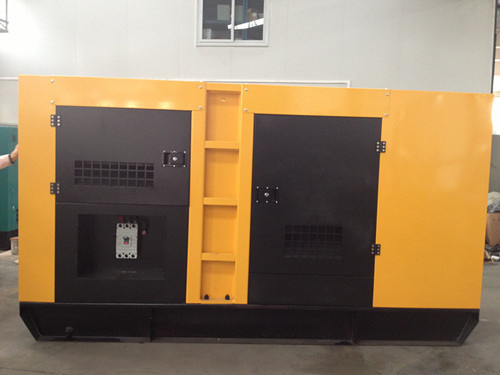

Hot Sale Cummins Diesel Generator 80kw Super Silent Type
Price: |
US $ 10200/Piece |
Trade Terms: |
FOB,EXW,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Description
1.International Warranty Service
2. Short delivery time
3. With ISO9001 SGS & CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
KVA | KW | KVA | KW |
OCL-110 | 110 | 88 | 100 | 80 | 6BT5.9-G2 | LTG274C1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wires Generator set specificationsGovernor Class | ISO8528 G3 |
Potential Drop | 1% |
Steady Voltage Regulation | 1% |
Frequency Drop | Synchronous(0%) |
Steady-state Frequency | 0.25% |
R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
Fuel Consumption Rate ,g/kw.h(L/hr) | 215(22) |
Starting Battery Capacity ,A/hrhhr | 80*2 |
Total Coolant Capacity ,L | 27 |
Fuel Capacity (base tank),L | N/A |
Engine DataModel | 6BT5.9-G2 |
Type | In-line 6 Cylinder,4 Cycle |
Displacement ,L | 5.9 |
Compression Ration | 17.5:1 |
Aspiration | Turbo |
Fuel System | A/AD type Fuel Pump,EFC Electronic Governor |
Bore*Stroke(mm) | 102*120 |
Rated Speed ,rpm | 1500 |
Governor Type | Electronic |
Starting Voltage | 24V ,Negative ground |
Battery Charging System | 24V 35A |
Lubricant Capacity ,L | 16.4 |
Coolant Capacity, L | 27 |
Alternator DataProtection Class | IP21 |
Insulation Class | Class H |
Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
Excitation Type | Brushless & Self-excited |
Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
Telephone Interference(TIF) | <50 |
Telephone Interference(THF) | <2% |
Exhaust SystemExhaust air flow | 16.8m3/min |
Exhaust Temperature | 565ºC |
Max Back Pressure | 10kPa |
Air Intake SystemMax Intake Restriction | 6.35kPa |
Burning Capacity | 6.48m3/min |
Air Flow | 158m3/min |
Lubricant System Total Lubricant Capacity | 16.4L |
Lubricant Consumption | ≤4g/kwh |
Engine Oil Tank Capacity | 14.2L |
Oil Pressure at Rated Speed | 345kPa |
Our service quality assurance1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.4)Spare parts supply: We provide all kinds of spare parts and technical support.5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance serviceContact Details:FOSHAN ORIPO POWER ENGINEERING CO.,LTD
Contact person:Janet
Mobile:+86-18923200408
Fax:0757-28791208
Web:en.oripo.com
Prod Model: |
OCL-110 |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Dimension: |
3100*1150*1820mm |
Alternator: |
Leateck/Stamford |
Controller: |
Smartgen/Deep Sea |
Insulation Grade: |
H |
Protection Grade: |
IP21-23 |
Start System: |
Electric Start |
Type: |
Micro-Computer Control Automatic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
