CE Approved Methane Gas Power Generator Biomass Generator Set 500kw
Company Introduction
Shandong lvhuan power equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.
Our main products are gas generator set, diesel engine and diesel generator set. It forms a series of products, including: Biogas gen-set, Coal mine gen-set, Natural gas gen-set, Biomass gen-set, Coke oven gas gen-set, Gas gen-set, Diesel gen-set and the entire building machine. These products cover almost all the range of power, and their power performance, economical efficiency and reliability are all in the advanced level of this field.
We have attained ISO9001, ISO14001 and CE certifications, and carries them out in every production procedure. With the strong capacity of researching and designing, we can not only provide you with quality products , but also your good partnership in the general Power Generation Program, including: consulting service, project designing, construction, installation ,adjustments and facilities maintenance
Services
1.Pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you technical service free of charge
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
Accessories
1.Application scope of the Accessories,such as 12v190,8v190,6190,6135 and other engine types.
2.All parts were from original factories or professional factories,complete in specification,keep good quality.

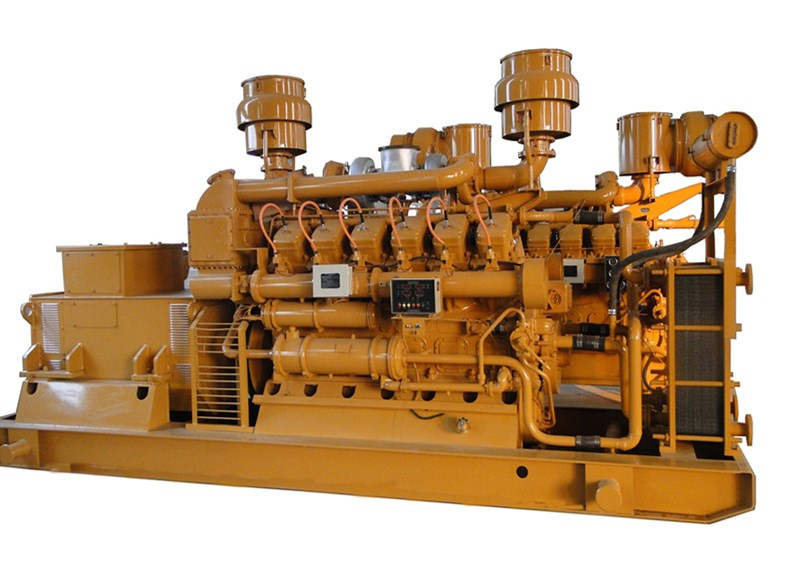

500kw Biomass Generator Set
| Model Number (Engine Type) | LHBMG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.4L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |
Main technical advantages:
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control, long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
Application areas:
Rubbish landfill disposal, animal husbandry and livestock breeding delectation disposal, industrial disposal
Worksite requirements:
Worksite needs to meet following basic requirements:
Ambient temperature between -40 to 40°C
Relative humidity less than 95% (35°C)
Site elevation not higher than 2500m
For outdoor installation, simple rain shelter is required
Fuel gas requirement:
Genset will be able to output at its full power with fuel gas with the specification as below:
Biogas must be purified before burning in engine
Suitable biogas conditions for genset
1m distance away from genset's pressure regulating valve of inlet
Temperature of biogas: ≤40°C
Pressure 3-10kPa, velocity of pressure ≤1kPa/minute
H2S: ≤200mg/Nm3
NH3: ≤20mg/Nm3
Impurities particle size: ≤5μm, impurity content: ≤30mg/Nm3
Moisture content : ≤40g/Nm3
Heat value ≥40MJ/Nm3
Note: excessive sulfur contents can do serious damage to engine elements
Purification of biogas has a significant impact on machine life and continuous running time
Packing and shipping:
Genset would be covered with plywood case or plastic film cover
Control panel, batteries, electric cables are packed with plywood boxes or cartons
Exhaust pipes, engine mufflers are put in the container without packing
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
