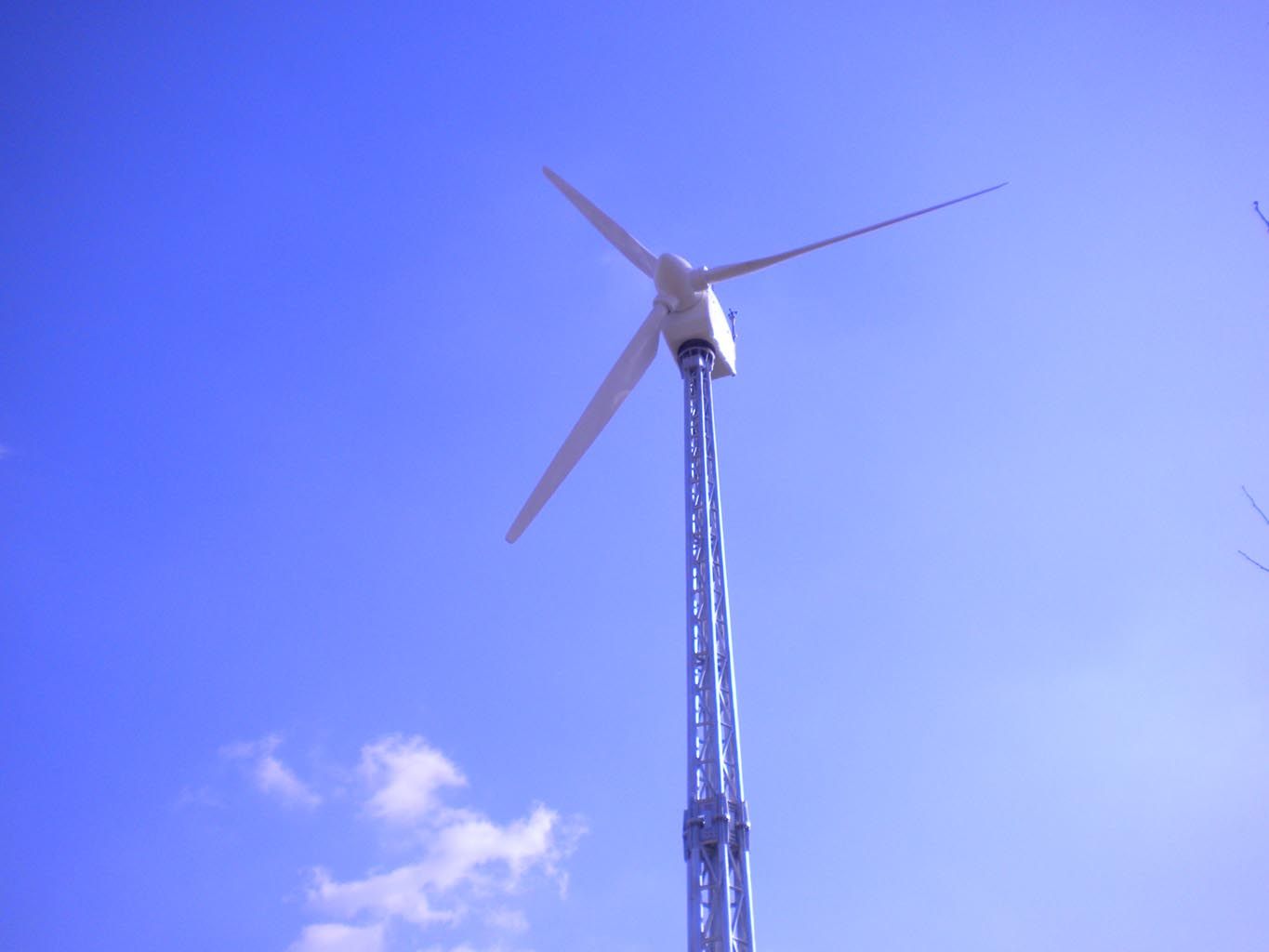

This 20kw horizontal axis wind turbine with the pitch control system, CE \ISO \SGS CERTIFICATION
We offer you the on grid connected systems or off grid system. You are welcome to send the inquiry to us
Rated power(W)20000Blades materialFRP/3
Max power (W)22000Speed regulation Variable pitch & brake system
Rated wind speed(m/s)10Generator type Three-phase AC PM
Startup wind speed(m/s)2Tower height (m)15M(optional)
Working speed(m/s)2.5~25Tower styleFree standing tower
Survival wind(m/s)45Control ModePitch+brake
Rated rpm(r/min)160Pitch ModeAir pitch
Blade diameter (m)10.42Brake ModeAir brake
Rated Voltage384/560Yaw ModeActive yaw
Turbine main body weight kg1500Working VoltageAC380
Power supply method Three-phase whole-wave bridge rectifier constant DC charger
|
MSFD_20KW technical parameter |
|
Rated power (w) |
20000 |
Blades material |
FRP/3 |
|
Max power (W) |
22000 |
Speed regulation |
|
Variable pitch & brake system |
|
Rated wind speed(m/s) |
10 |
Generator type |
|
Three-phase AC PM |
|
Startup wind speed(m/s) |
2 |
Tower height (m) |
15M(optional) |
|
Working speed(m/s) |
2.5~25 |
Tower style |
Free standing tower |
|
Survival wind(m/s) |
45 |
Control Mode |
Pitch+brake |
|
Rated rpm(r/min) |
160 |
Pitch Mode |
Air pitch |
|
Blade diameter (m) |
10.42 |
Brake Mode |
Air brake |
|
Rated Voltage |
384/560 |
Yaw Mode |
Active yaw |
|
Turbine main body weightkg |
1500 |
Working Voltage |
AC380 |
|
Power supply method |
Three-phase whole-wave bridge rectifier constant DC charger |
|
Tower type);Free standing tower |
|
|
|
Material):Q345B |
|
|
|
|
Height of tower):15M |
|
|
|
|
7.5M/Partsections of tower 2) |
|
|
|
|
|
|
|
|
|
|
|
section 1:thickness 10MM;top size diameter580MM;bottom1000MM |
|
|
|
section 1:thickness 12MM;top size diameter1000MM;bottom1720MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Surface treatment:hot dipped galvanized |
|
|
type of generator): |
|
|
|
|
|
|
direct drive 3-phase permanent-magnet AC |
|
stator):Silicon steel sheet |
|
(Magnet steel): |
|
|
|
|
Wire package:copper wire) |
|
Weight of generator mainbody) |
|
1500KGS |
|
Generator shell material):FRP |
|
|
|
2350 X 810 X1227 |
|
|
|
|
The main body size:2350 x 810 x 1227 MM |
|
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
For our company, the purpose is to serve the community and benefit to mankind. The spirit is to be pragmatic and aggressive; The philosophy is to keep promises and share benefits, our goal is to keep pace with the times and pursue the excellence. Then warmly welcome the domestic and foreign merchants to our company, we are looking forward to close cooperation hand in hand.
