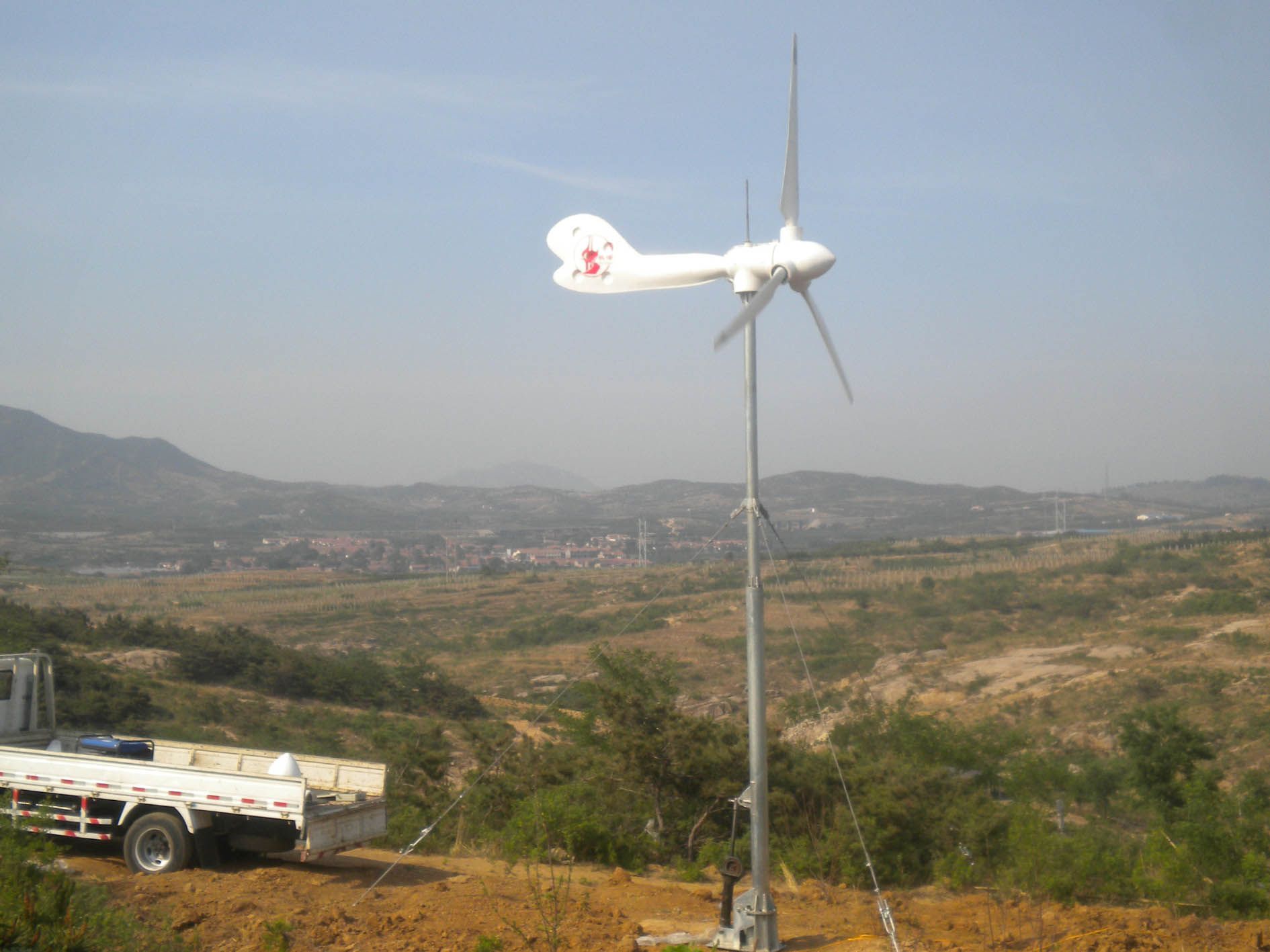

1KW PMG horizontal axis wind turbine generator system
This wind turbine generator system with pitch control, high power efficiency, lower start wind speed, with CE SGS ISO CERTIFICATE;
The better quantity and best price, it is your best choice
Introduction; Technical parameter,
Rated power (W): 1000
Max power (W): 1300
Cut-in wind speed: 2.5 M/S
Rated wind speed: 9 M/S
Cut-out wind speed: 25 M/S
Survival wind speed: 45M/S
Operating wind speed: 2.5-25M/S
Rated rotating speed(RPM): 450
Rated voltage (V): 48V AC
Inverter out-put voltage (V): 120/220V
Frequency: 50/60Hz
Protect grade: IP54
Blades material: FRP
Blade diameter: 3.30M
Pitch system: Variable Pitch by Mechanical Centrifugal Force
Height of tower: 6M
Pls feel free to contact me if you're interested in it. Then I will offer you the detail information.
Mobile: +86-18266622567; 18753245275
|
MSFD_1KW technical parameter |
|
Rated power(W) |
1000 |
Blades material |
FRP/3 |
|
Max power (W) |
1300 |
Speed regulation |
|
Variable pitch & brake system |
|
Rated wind speed(m/s) |
9 |
Generator type |
|
Three-phase AC PM |
|
Startup wind speed(m/s) |
2 |
Tower height (m) |
6M(optional) |
|
Working speed(m/s) |
2.5~25 |
Tower style |
Free standing tower |
|
Survival wind(m/s) |
45 |
Control Mode |
Pitch+brake |
|
Rated rpm(r/min) |
450 |
Pitch Mode |
Mechanical centrifugal pitch |
|
Blade diameter (m) |
3.3 |
Brake Mode |
Solenoid brake |
|
Rated Voltage |
48 |
Yaw Mode |
Passive yaw |
|
Turbine main body weightkg |
170 |
Working Voltage |
AC220V/380V |
|
The batteries |
12V 100AH 4PCS optional |
|
Power supply method |
Three-phase whole-wave bridge rectifier constant DC charger |
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
For our company, the purpose is to serve the community and benefit to mankind. The spirit is to be pragmatic and aggressive; The philosophy is to keep promises and share benefits, our goal is to keep pace with the times and pursue the excellence. Then warmly welcome the domestic and foreign merchants to our company, we are looking forward to close cooperation hand in hand.
