Foshan Oripo Power Engineering co.,ltd.

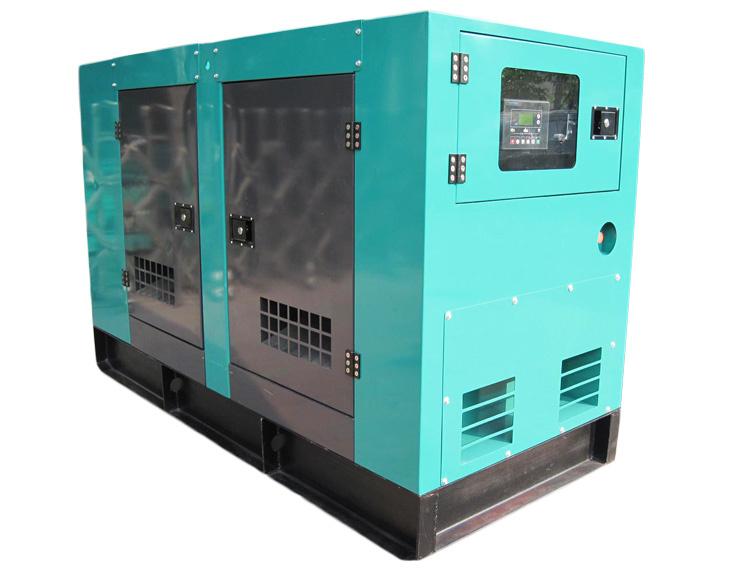

The Cummins engine powering ORIPO diesel generator set offer the best fuel economy, best warranty terms and lowest cost of maintenance thereby proving to be the most economical power solution. With the superior designed engine and world class alternator, the genset eqipped with intelligent controller for ease of use and monitoring generator performance.
The ORIPO Cumins diesel gensets are smaller and lighter than other engine genset in its class, thus giving you the advantage of optimizing your valuable space.
The ORIPO genset offers you environment friendly power and low operating costs. You can easy to get 24 hours CUMMINS service and its spare parts on line.
GENERATOR SET STANDARD SCOPE
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL-35 | 35 | 28 | 31 | 25 | 4BT3.9-G2 | LTG184H1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wires
Generator set specifications
| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 215(7) |
| Starting Battery Capacity ,A/hrhhr | 60*2 |
| Total Coolant Capacity ,L | 21 |
| Fuel Capacity (base tank),L | N/A |
Engine Data
| Model | 4BT3.9-G2 |
| Type | In-line 4 Cylinder,4 Cycle |
| Displacement ,L | 3.9 |
| Compression Ration | 16.5:1 |
| Aspiration | Natural |
| Fuel System | A type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 102*120 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 11 |
| Coolant Capacity, L | 21 |
Alternator Data
| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
Exhaust System
| Exhaust air flow | 6.48m3/min |
| Exhaust Temperature | 487ºC |
| Max Back Pressure | 10kPa |
Air Intake System
| Max Intake Restriction | 6.35kPa |
| Burning Capacity | 2.69m3/min |
| Air Flow | 146m3/min |
Lubricant System
| Total Lubricant Capacity | 11L |
| Lubricant Consumption | ≤4g/kwh |
| Engine Oil Tank Capacity | 9.5L |
| Oil Pressure at Rated Speed | 345kPa |
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
