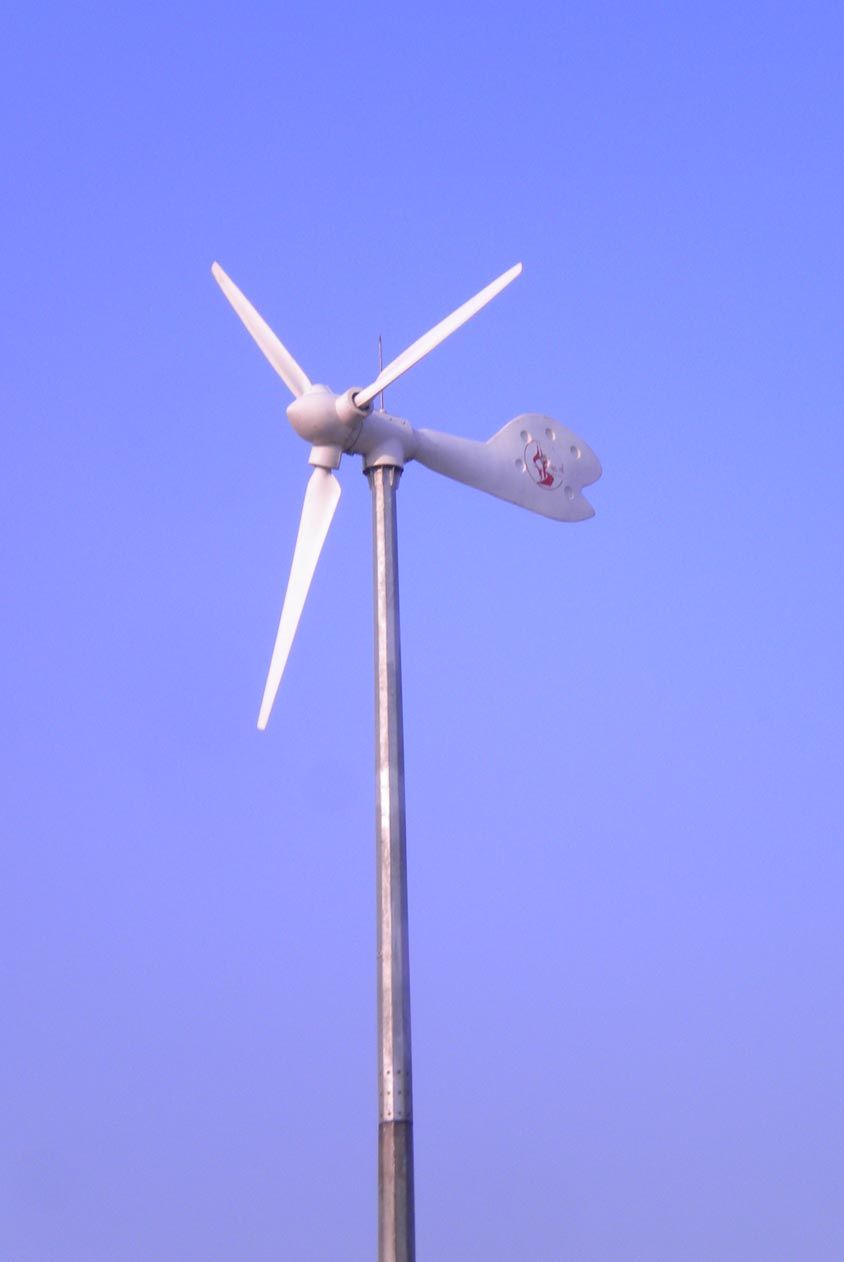

Home Grid or off Horizontal Axis 1kw Wind Turbine
This wind turbin with pitch control sysems, this wind turbine have good appearance
Introduction:
Rated power(W): 1000
Blades material: FRP/3
Max power (W): 1300
Speed regulation: Variable pitch & brake system
Rated wind speed(m/s): 9
Generator type: Three-phase AC PM
Startup wind speed(m/s): 2
Tower height (m): 6M(optional)
Working speed(m/s): 2.5~25
Survival wind(m/s): 50
Shut down method: Hand/Electric winch
Rated rpm(r/min): 400
Turbine main body weight(kg): 95
Blade diameter (m): 3.3
Working voltage (v): DC24V/48V-----AC220V
Power supply method: Three-phase whole-wave bridge rectifier constant DC charger
Battery bank(Optional): [12V. 150AH]× 4
|
Rated power |
1000W |
|
Max Power |
1300W |
|
Cut-in wind speed |
2.5M/S |
|
Rated wind speed |
9M/S |
|
Cut-out wind speed |
25M/S |
|
Security wind speed |
45M/S |
|
Operating wind speed |
2.5-25M/S |
|
Rated RPM |
450 |
|
Rated Voltage |
48V |
|
Working Voltage |
120/220V |
|
Frequency |
50/60HZ |
|
Protection degree |
IP54 |
|
Material of Blades |
FRP |
|
Blade diameter |
3.30M |
|
Height of Tower |
6M |
|
Type of Tower |
guyed-tower/free stand tower |
|
Brake system |
active brake |
|
Pitch system |
by Mechanical centrifugal force |
|
Top quality except tower |
163KGS |
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
For our company, the purpose is to serve the community and benefit to mankind. The spirit is to be pragmatic and aggressive; The philosophy is to keep promises and share benefits, our goal is to keep pace with the times and pursue the excellence. Then warmly welcome the domestic and foreign merchants to our company, we are looking forward to close cooperation hand in hand.
