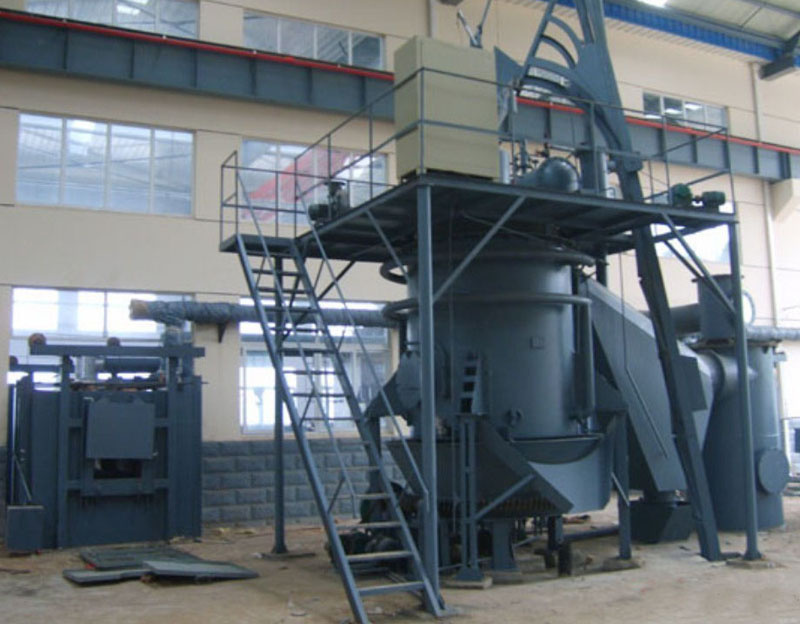

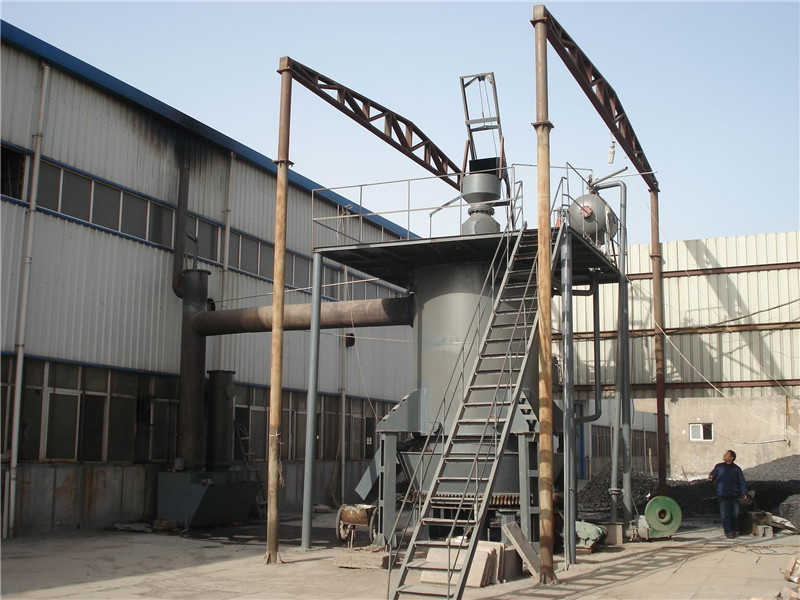

30% energy saving coal gasifier generator

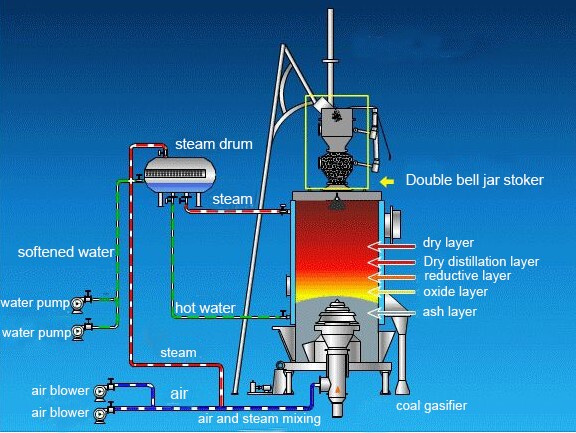

This model coal gasifier is new intelligent high-effect environment-friendly products put forward by our company, in which patent slag-removing revolving ash pan and automatically slag removing structure are use. Special pagoda-shaped heat-resistant iron grate, furnace wall always protected by slags, strong effect to breaking slag, slag loosing and ventilation, Abandon the concept that coal gasifier is the same as pressure vessel basically, heating temperature auto-controlled Coal gasifier operating principles: coal gasifier uses 10 to 50mm pea coal as ideal fuel, which largely increases the
gasification intensity, accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapor to form combustive air such as carbon
monoxide and hydrogen, so as to reach complete gasification and produce gas
continuallyand steadily. Environment-friendly target: This model coal gasifier as was testified by Henan environment testing center, it has no smoke when the coal is burned and the discharge amount of both sulfur dioxide and soot complies with the GB9078-1996 environment-friendly standard Safe and reliable: coal gasifier uses national invention patent technology, eliminating the hidden trouble of traditional coal gasifier's easy explosionQM-2 COAL GASIFIER SPECIFICATON items | unit | type & certification |
|
| QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 |
I.D.of chamber | mm | 800 | 1000 | 1200 | 1500 | 1600 |
Hearth effect area | M2 | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 |
Applicable fuel | Non-caking or weak-caking anthracite, bituminous coal, coke, coal property should comply with the requirement of GB9143 |
Fuel size | mm | 13-25 25-50 |
Fuel consumption | Kg/h | 40~100 | 70~140 | 120~190 | 160~350 | 350~460 |
Air agent | Air, stream |
Gas output | Nm3/h | 140~350 | 245~490 | 420~670 | 560~1200 | 1200~1600 |
Net heating value | Kj/Nm3 | 5020~5670 (related to coal sorts) |
Gas exit temperature | ºC | 300-500 |
Gas exit pressure | Pa | <1000 |
Air pressure | Pa | <3000 |
Saturated temperature | ºC | 50-60 |
Ash tray speed | R/H | 0.177-1.77 |
Air entrance diameter | mm | 108 | 108 | 133 | 165 | 219 |
Complete machine power | kw | <6 | <6 | <6 | <7 | <8 |
Equipment weight | T | 3.5 | 4.5 | 5 | 7.5 | 10 |
