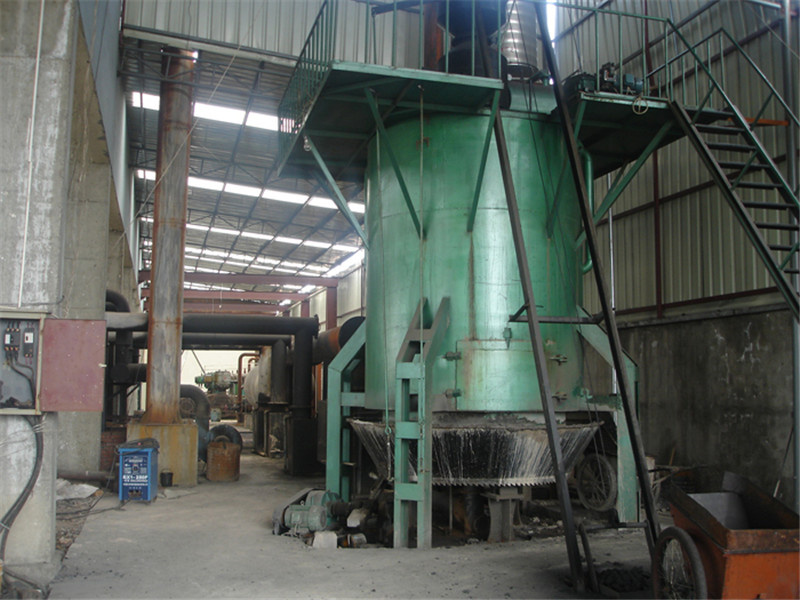

Professional supplier of coal gasifier with low consumption
This series coal gasifier is developed on the basis of dry-ash bottle ash handling gas stove, this new type coal gasifier are new intelligent high-effect
environment-friendly products put forward by our company, in which patent slag-removing
revolving ash pan and automatically slag removing structure are use.
The coal gasifier with special pagoda-shaped heat-resistant iron grate, furnace wall always
protected by slags, strong effect of slag breaking, slag loosing and ventilation,
the concept abandoned that gas furnace is the same as pressure vessel basically,
heating temperature auto-controlled
Operating principles of Qm-2 coal gasifier:
continual coal gasifier uses 10 to 50mm pea coal as ideal fuel, which largely increases the gasification intensity, accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with
vapor to form combustive air such as carbon monoxide and hydrogen, so as to reach complete
gasification and produce gas continually and steadily
Environment-friendly target of Qm-2 coal gasifier:
This series coal gasifier as was testified by Henan environment testing center, it has no smoke when the coal is burned and the discharge amount of both sulfur dioxide and soot complies with the GB9078-1996 environment-friendly standard
Safe and reliable of Qm-2 coal gasifier:
continual coal gasifier uses national invention patent technology, eliminating the hidden trouble of traditional coal gasifier's easy explosion
QM-2 COAL GASIFIER SPECIFICATON
| items | unit | type & certification |
|
| QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 |
| I.D.of chamber | mm | 800 | 1000 | 1200 | 1500 | 1600 |
| Hearth effect area | M2 | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 |
| Applicable fuel | Non-caking or weak-caking anthracite, bituminous coal, coke, coal property should comply with the requirement of GB9143 |
| Fuel size | mm | 13-25 25-50 |
| Fuel consumption | Kg/h | 40~100 | 70~140 | 120~190 | 160~350 | 350~460 |
| Air agent | Air, stream |
| Gas output | Nm3/h | 140~350 | 245~490 | 420~670 | 560~1200 | 1200~1600 |
| Net heating value | Kj/Nm3 | 5020~5670 (related to coal sorts) |
| Gas exit temperature | ºC | 300-500 |
| Gas exit pressure | Pa | <1000 |
| Air pressure | Pa | <3000 |
| Saturated temperature | ºC | 50-60 |
| Ash tray speed | R/H | 0.177-1.77 |
| Air entrance diameter | mm | 108 | 108 | 133 | 165 | 219 |
| Complete machine power | kw | <6 | <6 | <6 | <7 | <8 |
| Equipment weight | T | 3.5 | 4.5 | 5 | 7.5 | 10 |
