Our company supply high quality: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter. And high efficiency: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter And low price: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter.
Features
*Wide DC input voltage range
*DSP controller
*High efficiency by using advanced IGBT and IPM
*MPPT(Maximum power point tracking) technology
*Transformerless, High efficiency
*In accordance with international standards
*Quick and easy installation
*Operation parameters can be adjusted via LCD and keys
*The perfect protection function
*Designed to suitable for critical grid environment
|

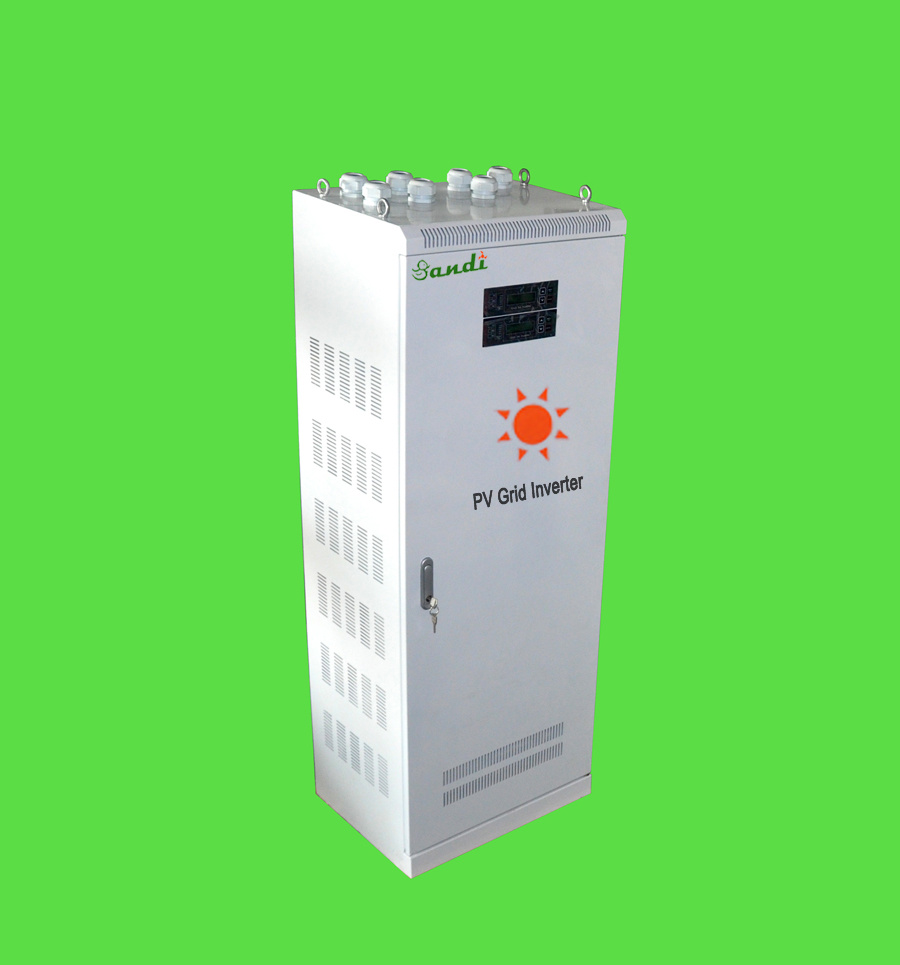

Model |
SDS-20KW |
|
Isolation type |
Transformerless |
DC Input |
MPPT Voltage Range |
DC100-500V |
|
Rated DC Voltage |
200-400V |
|
Control System |
MPPT |
AC Output |
Output Power |
20KW |
|
Rate voltage |
AC380V |
|
voltage range |
AC 342 - 418 V |
|
Normal Grid Frequency |
50/60Hz Grid frequency |
|
Night-time consumption |
<0.25W |
|
Phases |
3 phase 4 wire |
|
Power Factor |
0.95 |
|
Current THD |
At rated power and in the sine wave <5% |
|
Control System |
PWM |
|
Anti-islanding |
≤0.5 sec |
|
Output Overload |
100% |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
Structure |
Protection Class |
IP20 |
|
Cooling system |
Natural cooling |
|
Noise |
60dB |
|
Data Interfaces |
External RS232C/RS485 |
|
Web Module( Option) |
RS232C to TCP/IP |
|
Display |
LCD |
|
Dimensions(W*H*D) |
550*1300*700mm |
|
Weight |
80kgs |
Protection |
Inverter |
Input overvoltage, output short circuit, overheat, output DC component. |
|
Grid |
Anti-islanding, over/under voltage of grid, over/under frequency of grid. |
Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
|
Operation temperature |
-10-40 |
|
Stored temperature |
-20-65 |
|
Relative humidity |
0-100% (Do not wet with dew) |
|
CE-Standards Complied |
EN61000-6-2, EN61000-6-4(EMC), EN61558-1, EN61558-2-17, EN50178, EN61000-1, |
