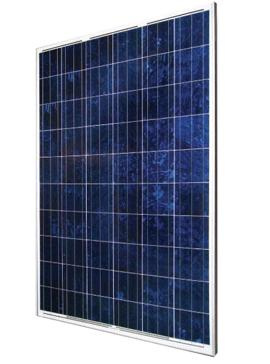

Solar Module
1. With advanced materials and equipments, our panels are designed and manufactured in consistency with the IEC 61215: 1993 standards which guarantees excellent electrical performance and the product life span of 25 years.
2. A film of PECVD is coated on the upper surface as antireflection measure which the characteristic of deep blue color.
3. The modules are embedded with a sheet of imported strong transparent glass, two sheets of long endurance EVA, a high efficiency poly-crystalline cells sheet and a sheet of antihumidity TPT for different weather conditions.
4. High quality anodized aluminum frame which is the choice for strong wind resistance and mountain terrain.
5. A multifunction box can safeguard safe connection.
6. The exterior design and electrical performance of each every module are fully tasted to guarantee superior quality.
|
Description of Specification |
Units |
Model |
NES60-6-230P |
|
General Data |
|
Nominal Power |
W |
230 |
|
Application |
|
DC 18V System |
|
Surface Maximum Load Capacity |
kg/m 2 |
200 |
|
Storage & Operating Temperature |
Deg C |
-40 to +80 |
|
Standard Test Conditions |
|
1000W/M² , 1.5AM, 25 |
|
Dimensions(L*W*H) |
mm |
1650*992*45 |
|
Weight |
kg |
19.5 |
|
Solar Cell |
|
Cell Type |
|
Poly |
|
Wafer Diameter |
mm 2 |
156*156 |
|
Number of Cells |
|
60 (6*10) |
|
Maximum Power |
W |
230 |
|
Watt Tolerance |
% |
+/-3 |
|
Voltage & Ampereage |
|
Maximum System Voltage |
Volts |
1000 |
|
Maximum Operating Voltage(Vmp) |
Volts |
30.0 |
|
Maximum Operating Current(Imp) |
Amps |
7.67 |
|
Open Circuit Voltage(Voc) |
Volts |
37.0 |
|
Short Circuit Current(Isc) |
Amps |
8.18 |
|
Operational Temperatures |
|
Temp Coefficent of Isc(TK Isc) |
% per deg. C |
+0.05 |
|
Temp Coefficent of Voc(TK Voc) |
% per deg. C |
-0.34 |
|
Temp Coefficent of Pmax(TK Pmax) |
% per deg. C |
-0.45 |
|
Normal Op. Cell Temp (NOCT) |
deg. C |
45± 2 |
|
Materials & Accessories Data (All Certified by CE and TUV) |
|
Cable |
Connerctors |
|
IP65 |
|
Length |
M |
0.9 |
|
Wire Diameter |
mm 2 |
4 |
|
Frame |
|
Anodzed Aluminum |
|
Glass |
Thickness |
mm |
3.2 |
|
Low lron, High Transmisson, Toughness |
|
YES |
|
EVA resin |
mm |
0.5 |
|
Backsheet(TPT) |
mm |
0.3 |
Warranty
(Output) |
10 years |
% |
90 |
|
20 - 25 years |
% |
80 |
|
Whols Panel |
Years |
5 |
