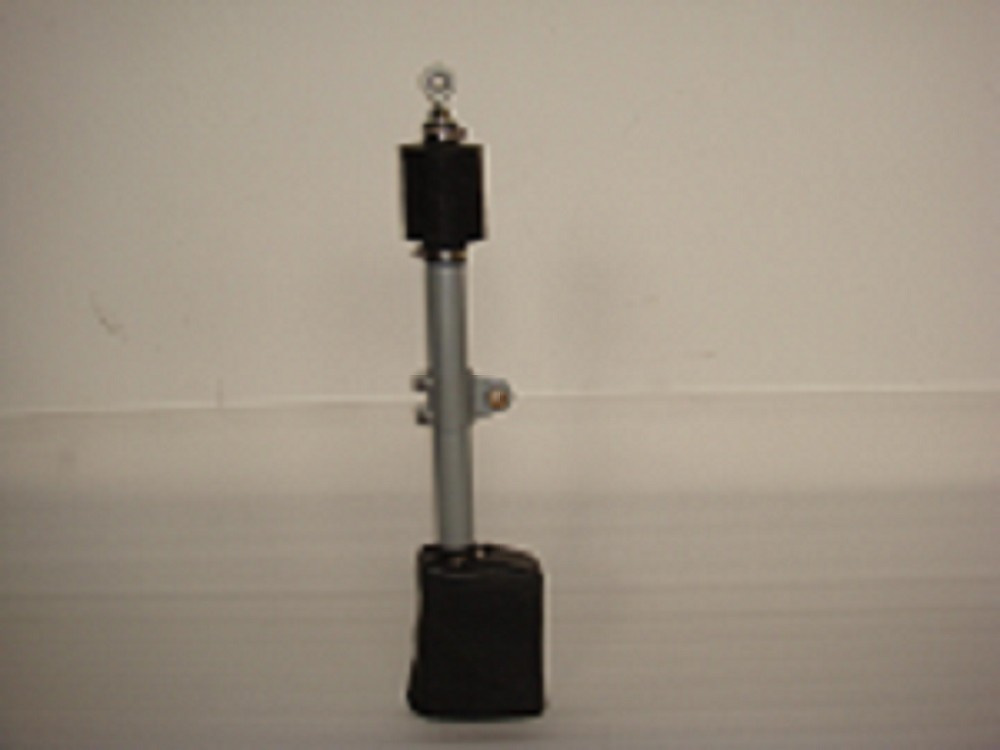

HSA
(Heartpower Solar Actuator)
Best solution for solar tracker
@Benefits/Features
1. Excellent for PV, Thin Film, HCPV module solar tracking system
2. Available for Single-axis and Dual-axis solar tracker
3. Good for Concentrated solar power system, Concentrated heat and power, Tracking street light
4. High reliability & Life expectancy & Cost effective
5. Ambient temperature -30° C to +70° C
6. Super-grip heavy duty bracket
7. Industrial grade rod end (universal joint/flat connector)
8. Electronic limit switch, adjustable throughout the whole stroke
9. Antirust material
10. Optional weather protection boot & accordion
@Specification
Model ACME screw Ball screw
Voltage 12VDC/24VDC/36VDC
Stroke Length 450mm(18")/600mm(24")/900mm(36")
Dynamic Load 1000kgs 1200kgs
Static Load 1500kgs 1500kgs
Speed 2mm/sec~2.7mm/sec 2.4mm/sec~3.5mm/sec
Duty Cycle 10%
Protection Class IP65(with Boot & Accordion)/IP54(without Boot & Accordion)
CE RoHS
We have over 40 years experience in shaft, screw(spindle), gear reducer, motor, actuator and controller in Taiwan enables us to provide excellent solution with competitive price. Currently, we have three factories, one has 100 employees in Taichung, Taiwan, another has 250 employees in Guangdong, China and the other has 350 employees in Taicang, Jiangsu, China. All of our factories pass the ISO certification. Advanced production equipment, precise inspection equipment, trained employees and ISO QC processes to ensure quality products delivered. The total sales volume is around US$36, 000, 000 in 2009.
We are engaged in solar tracking business since 2007. It is our pleasure to introduce a better solution in efficiency, economic and environment friendly for solar tracking system. Our Heartpower Solar Actuator(HSA), Heartpower Slewing Drive(HSD) and Heartpower Solar Controller(HSC) are best solution for solar tracker, high reliability and cost effective. Experiencing our technology and achieving "Grid Parity" wherever you are as early as possible. Let's make something great to save the Earth!
