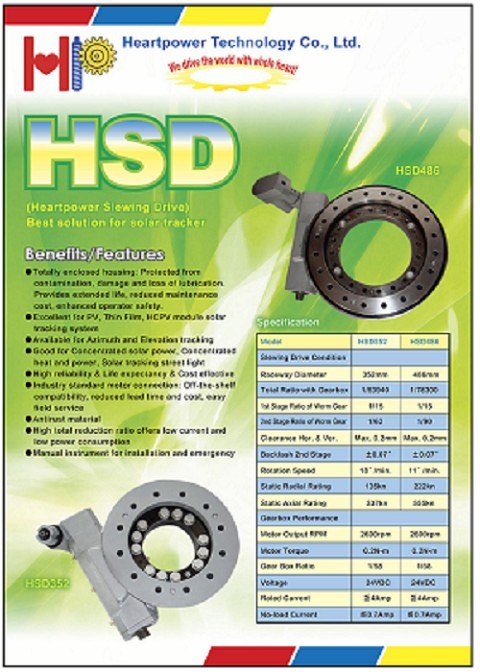

HSD
(Heartpower Slewing Drive)
Best solution for solar tracker
@Benefits/Features
1. Totally enclosed housing: Protected from contamination, damage and loss of lubrication. Provides extended life, reduced maintenance cost, enhanced operator safety.
2. Excellent for PV, Thin Film, HCPV module solar tracking system
3. Available for Azimuth and Elevation tracking
4. Good for Concentrated solar power, Concentrated heat and power, Solar tracking street light
5. High reliability & Life expectancy & Cost effective
6. Industry standard motor connection: Off-the-shelf compatibility, reduced lead time and cost, easy field service
7. Antirust material
8. High total reduction ratio offers low current and low power consumption
9. Manual instrument for installation and emergency
@Specification
Model HSD352 HSD486
Slewing Drive Condition
Raceway Diameter 352mm 486mm
Total Ratio with Gearbox 1/53940 1/78300
1st Stage Ratio of Worm Gear 1/15 1/15
2ND Stage Ratio of Worm Gear 1/62 1/90
Clearance Hor. & Ver. Max. 0.2mm Max. 0.2mm
Backlash 2ND Stage ± 0.07° ± 0.07°
Rotation Speed 18° /min. 11° /min.
Static Radial Rating 135kn 222kn
Static Axial Rating 337kn 555kn
Gearbox Performance
Motor Output RPM 2600rpm 2600rpm
Motor Torque 0.2N-m 0.2N-m
Gear Box Ratio 1/58 1/58
Voltage 24VDC 24VDC
Rated Current under4Amp under4Amp
No-load Current under0.7Amp under0.7Amp
We have over 40 years experience in shaft, screw(spindle), gear reducer, motor, actuator and controller in Taiwan enables us to provide excellent solution with competitive price. Currently, we have three factories, one has 100 employees in Taichung, Taiwan, another has 250 employees in Guangdong, China and the other has 350 employees in Taicang, Jiangsu, China. All of our factories pass the ISO certification. Advanced production equipment, precise inspection equipment, trained employees and ISO QC processes to ensure quality products delivered. The total sales volume is around US$36, 000, 000 in 2009.
We are engaged in solar tracking business since 2007. It is our pleasure to introduce a better solution in efficiency, economic and environment friendly for solar tracking system. Our Heartpower Solar Actuator(HSA), Heartpower Slewing Drive(HSD) and Heartpower Solar Controller(HSC) are best solution for solar tracker, high reliability and cost effective. Experiencing our technology and achieving "Grid Parity" wherever you are as early as possible. Let's make something great to save the Earth!
