1 Wide DC input voltage range
2 DSP controller
3 High efficiency by using advanced IGBTA and IPM
4 MPPT (Maximum Power Point Tracking) technology
5 Transformerless High efficiency
6 ln accordance with international standards
7 Quick and easy installment
8 Operation parameters can be adjusted via LCDand keys
9 The perfect Protection Function
10 Designed to suitable for critical grid environment
|

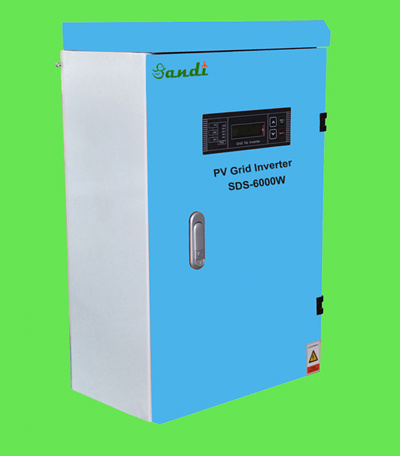

Model |
SDS 6000W |
DC Input |
MPPT Voltage Range |
DC100 ~ 500V |
Recommend PV Array
Open Circuit Voltage |
200~400V |
|
Control System |
MPPT |
AC Output |
Output Power |
6000W |
|
Rated Grid voltage |
AC230 |
|
Voltage range |
AC 185V ~ 264V (1 phase) |
|
Normal Grid Frequency |
50/60Hz (Grid frequency) |
|
Phases |
1 phase 2 wire |
|
Power Factor |
> 0.95 |
|
Current THD |
At rated power and in the sine wave < 5% |
|
Control System |
PWM |
|
Anti-islanding |
≤ 0.5 sec |
|
Total Max. Current |
27.3A |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
Structure |
Protection Class |
IP20 |
|
Cooling system |
Natural cooling |
