Good Quality with Hypertherm Plasma Generator CNC Cutting Machine for Metal Pipe Cutting & Bevelling

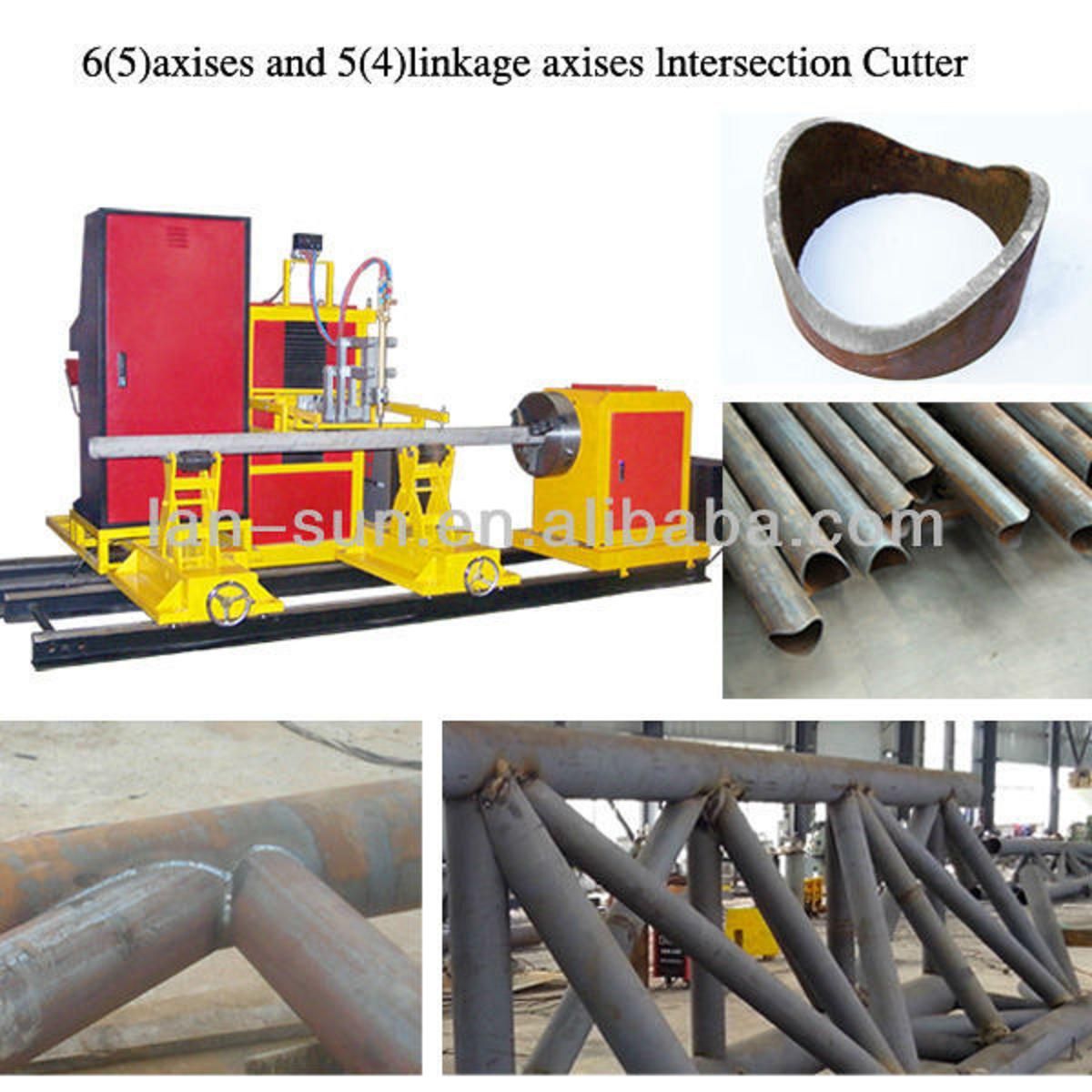

Automatic Pipe Cutter Steel Pipe Cutting Machine Suitable for cutting the cylinder branch, two, three or more layer saddle cutting of the main pipe. ZLQ seriers CNC Steel pipe cutter is special CNC equipment which is used for cutting metal pipe automatically. It can reslize auto program and auto CNC nesting work for any complicated joint type of intertube and pipe and non-inter tube. And can cut any type welding bevel at one time. This product is widely used for steel structure, ship building, bridge and heavy machine industries. Cutting technical specifications: 1. Cutting steel type: Round & square 2. Figures can be cut: Variety of graphics by outspreading intersecting line, can be with bevel 3. Control Axes: 3-4-5-6 axies, bevel cutting with six spindle and six-interlocking. 4. Diameter: 30-1000mm or customize (bigger dia. ) 5. Thickness of the pipe: Flame: 5-200mm, plasma: 1-60mm 6. Bevel cutting range: Flame 60degree, plasma 30 , 45degree. 7. Cutting way: Plasma or /and gas 8. Pipe max length: ≥ 6m 9. Pipe clamping method: Chuck 10. Power-driven: High-precision AC servo+dedicated planetary reducer 11. Control System: A dedicated intersecting line cutting system: 6-axis controlled, with quantitative intersecting line cutting macro library performance and precision mechanical movement indicators ZLQ-65 intersection Cutting Machine CNC positioning accuracy , repeatability reach JB / T 5102-99 standard , cutting up JB/T10045.3-1999 quality standards , cutting roughness Ra ≤ 12.5μm. Requirements of the moving parts in the work process run smoothly and without noticeable vibration ( beat ) phenomenon . 1 , the workpiece rotary drive        Drive System Precision gear box,:         gear transmission        Speed :                                0.1-25 rpm / min        Japanese Panasonic servo :              A5 Series AC servo system        Reset Accuracy:                         ± 0.5mm        Adjustment range:                       6-1000 2 , torch the car moved axially along the workpiece        Precision Drive System:         HUBEI Planetary gear box , gear , rack gear        Effective stroke:                12000mm torch car        Japanese Panasonic servo:      A5 Series AC servo system        Reset Accuracy :               ± 0.5mm 3 , torch fan axial plane workpiece swing axle        Precision Drive System:          HUBEI Planetary gear box , gear , rack gear        Swing angle :                   30 ° -150 °        Japanese Panasonic servo :      A5 Series AC servo system        Positioning accuracy of ± 0.3 ° 4 , torch the car moves up and down shaft        Drive system :                  linear guide, ball screw drive to pay        Torch the car up and down stroke determine:        the form of the cutter ( cutting diameter compliance requirements )        Japanese Panasonic servo:      A5 Series AC servo system        Reset Accuracy:                ± 0.2mm 5 , the workpiece torch fan oscillating axle radial plane        drive system:                     Curved rack ( arms drive )        Swing angle:                      30 ° -150 °        Japanese Panasonic servo:         A5 Series AC servo system        Positioning accuracy :              ± 0.3 ° 6, the auxiliary measurement axis: profiling measurements and the pipe surface to prevent collisions with the torch 7 , the torch moves back and forth along the tube axis radial        Drive system:                               linear guide, rack size        Move forward and backward stroke:           500mm        Japanese Panasonic servo:                   A5 Series AC servo system        Mobile accuracy:                            ± 0.2mm Structure & cutting ability of CNC  pipe cutting machine:      Pictures from cutomer's site: Certificates: Cutting video: http://www.tudou.com/home/_366244996/item
