Big Gantry plasma cutting machine for stainless/carbon steel/metal
Introduction

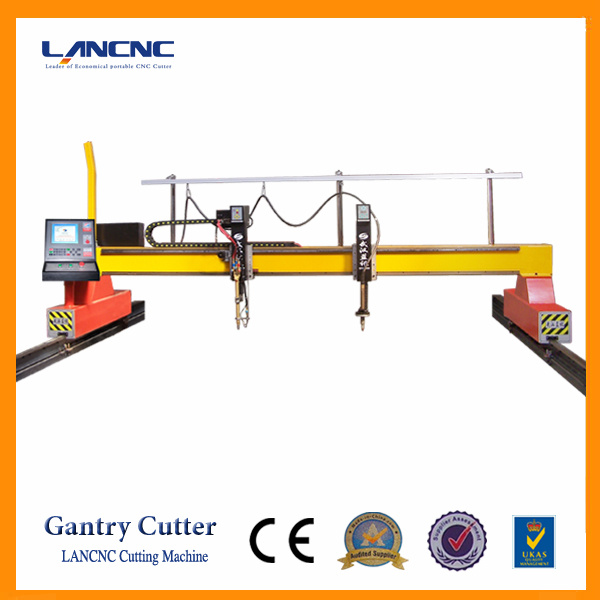

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting, it is characterized of high automation and efficiency, easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement. It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
CNC plasma/flame cutting machine main features and technical parameter:
1. The CNC cutting machine adopt gantry structure, good stability and durability;
2. Adopted Panasonic high-precision AC servo motor, high-precision running more smoothly and evenly;
3. The CNC system is based on Windows system which can use your AutoCAD drawing to cut any kinds of complicated shape;
4. With automatic ignition system and automatic torch hight adjustment system, make the operation more convenient;
5.15-inch liquid crystal display and entire Chinese/English menu, the whole touch screen keyboard closed;
6. CNC system has strong memory capacity, users are free to store as many as 40G programs;
7. CNC Nesting parts containing graphics database enable to program easier, more efficient operation;
8. USB interface support information transmission between the machine and portable hard drive;
9. Remote control network interface, support remote fault diagnosis, remote upgrade;
10. Can be allocated in accordance with customer requirements, such as plasma power.
11. Cutting tolerance: 0.5mm;
12. Cutting precision: Ra12.5;
14. Cuttng speed: 80-1000mm/min;
15. Cutting thickness: 4-150mm(flame cutting), plasma cutting thickness depands on plasma power source(4-70mm);
16. Cutting material: Mild steel, carbon steel(flame cutting), SS, HCS, HSS, copper, aluminium and other non-ferrous etc (plasma cutting);
17. Cutting mode: Flame or plasma;
18. Moving precision: 0.1mm per step;
19. Flame cutting or plasma cutting according to customer's requirement.
Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,
Aluminum, copper and other non-ferrous metal with Plasma cutting; Can configurate as you required., thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
After-sales service
1. One year warranty, free maintenance throughout service time...
2. Free technical support through Email and telephone.
3. Training and installation on-site if required.
Cross Beam Length(X axis)
|
4m (can be lengthened according to user' s demand)
|
Longitudinal Rail Length(Y axis)
|
6m (Rail can be lengthened according to user' s demand)
|
Effective Cutting Width (X axis)
|
3.2m
|
Effective Cutting Length (Y axis)
|
4.8m
|
Cutting Mode
|
Flame only; Plasma only; Flame and Plasma
|
Drive Mode
|
Dual-side
|
Drive Method
|
Rack and pinion drive for X and Y axes
|
Flame Cutting Thickness
|
5 -200mm
|
Plasma Cutting Thickness
|
1 -60mm (according to the specification of plasma power source)
|
Cutting Speed
|
0 -3500mm per minute
|
Moving Precision
|
0.01mm per step
|
Power Source
|
220V 50Hz 500-1000W
|
Cutting Gas
|
Acetylene, Propane
|
Plasma Gas
|
Pressed air, Oxygen, N2
|
Marking Tool
|
|
Torch Height Controller (AUTO)
|
CHC600
|
Capacitive height control for flame cutting
|
PHC330
|
Arc voltage height control for plasma cutting
|
Lansun specializes in researching, developping and selling ZLQ- series CNC cutting machines for 20 years. We have CNC portable, cantilever, gantry, table type and Pipe profile cutting machines.
Our mahcines are extremely easy to operate; With High rate of costs&very favourable price, our machines have been exported to Germany, England, Russia and all over the world!
