| Price: | US $ 43100/Set |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
Company introduction:
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internalmbustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets.
Our company has strong specialty, powerful technical force, a complete production plant,advanced processing technology, mature inspection method and a strict test system.
The advantage of our generator set
1. Can adapt to the changing of gas power generation, gas concentration control system has the function of gas concentration range set, through effective set concentration range, guarantee in the case of concentration changes has been in the best air/fuel ratio. To keep a stable output power and continuous.
2. Gas pressure≥5kP(Naturally aspirated generator set ),Low pressure gas transportation safety performance is good.
3. High power gas turbine control technology mature, the international famous brands such as caterpillar, wacker summer gas, natural gas units adopt the control technology.
4. Especially in 400 kw gas main important parts used only 190 engine parts, "gold medal" brand green ring USES the spare parts is one of the world's most advanced high sophisticated processing equipment, ensure the spare parts has the characteristic such as high machining precision, reliable performance, to ensure the reliability of the gas generator and durability

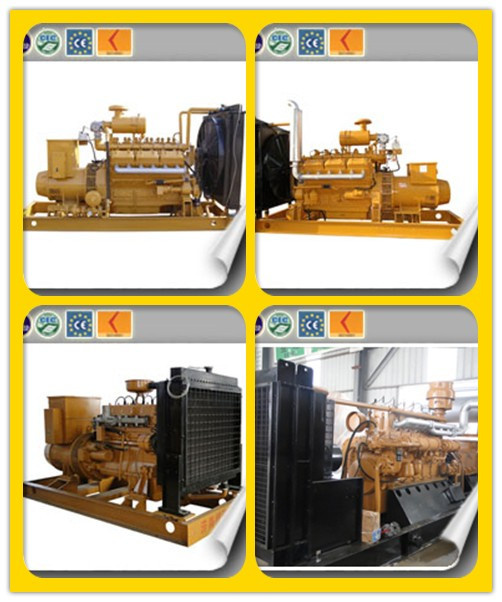

| Parameter of Biomass Generator Set | |
| Model Number (Engine Type) | LHBMG200 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 160KW/200KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤ ±2% |
| Voltage transient | ≤ ±10% |
| Voltage Stable time | ≤ 1s |
| Heat consumption | ≤ 9.8mj/kw.h |
| Lubricant consumption | ≤ 1.0g/kw.h |
| Engine Capacity | 26.9 L |
| Cylinder Number | 12-V |
| Cylinder Bore | 138mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 3250*1450*2140mm |
| Weight | 3200kg |
