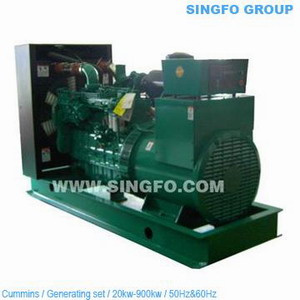

Model: SFC 160
Genset power : 160kw
Dimension: 2420*870*1527 mm
Weight: 1500kg
Engine model: 6CTA8.3-G2
In-line, 6 Cylinder, 4 Cycle, Turbo Intercooler Diesel Engine
Bore*Stroke 114mm*135mm
Displacement 8.3 Liters
Compression Ration 16.5:1
Rated Speed 1500r/min (1800r/min)
Rated Power 163kW(175kW)
Standby Power 180kW(190kW)
Fuel Injection Pump PB Injection Pump
Governor Electrical Governor
Steady Speed Droop ≤1%
Lubricant Capacity 24 Liters
Coolant Capacity 12.3 Liters
Net Weight 629 kg
Wet Weight 666kg
Overall Dimension(L*W*H) 1128mm*740mm*1084mm
Coolant Intake Size Φ50mm
Coolant Outlet Size Φ57mm
Flywheel/Flywheel Housing SAE2#/SAE2#
Cooling Way Positive Water Cooling Cycle
Technical Datasheet
Speed 1500r/min(50Hz) 1800r/min(60Hz)
Output Power Engine Output Engine Output
Standby Power 180kW 190kW
Prime Power 163kW 175kW
Test Condition
Air Intake Pressure 100kPa
Standard Light Diesel 0# Light Diesel
Air Intake Restriction 251mmHg
Exhaust Back Pressure 76mmHg
Lubricant Oil 15W40-CF4 Upgrade
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
