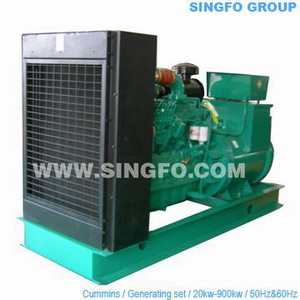

Dongfeng Cummins generator
Model: SFC 80
Genset power: 80kw(100KVA)
Dimension: 2090*850*1519 mm
Weight: 1450kg
Engine model: 6BT5.9-G2
In-line, 6 Cylinder, 4 Cycle, Turbo Diesel Engine
Bore*Stroke 102mm*120mm
Displacement 5.9 Liters
Compression Ration 17.5: 1
Rated Speed 1500r/min (1800r/min)
Rated Power 90/92kW(100kW)
Standby Power 100kW(110kW)
Fuel Injection Pump A Injection Pump
Governor Electrical Governor
RSV Mechanical Governor
Steady Speed Droop ≤ 1%
Lubricant Capacity 16 Liters
Coolant Capacity 11 Liters
Net Weight 399kg
Wet Weight 425kg
Overall Dimension(L*W*H) 996mm*711mm*992mm
Coolant Intake Size Φ 58mm
Coolant Outlet Size Φ 45mm
Flywheel/Flywheel Housing SAE3#/SAE3# or SAE2#/SAE2#
Cooling Way Positive Water Cooling Cycle
Technical Datasheet
Speed 1500r/min(50Hz) 1800r/min(60Hz)
Output Power Engine Output Engine Output
Standby Power 100kW 110kW
Prime Power 90/92KW 100kW
Test Condition
Standard Air Intake Temperature
Air Intake Pressure 100kPa
Standard Light Diesel 0# Light Diesel
Fuel Intake Temperature
Air Intake Restriction 251mmHg
Exhaust Back Pressure 76mmHg
Lubricant Oil 15W40-CF4 Upgrade
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
