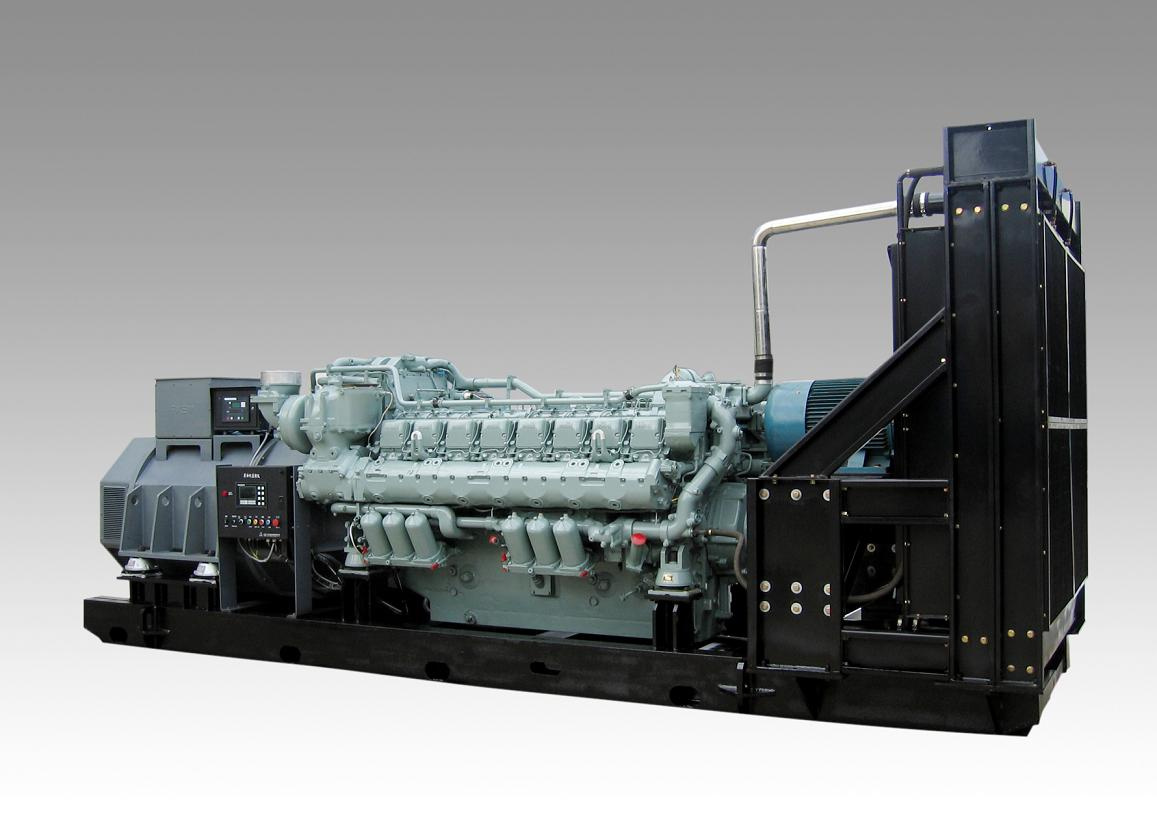

A: GENERATOR SET STANDARD SCOPE OF SUPPLY
Our diesel generator will be equipped with the following scope of supply:
1) Brand new MTU engine from German (China factory)
2) Brand new Stamford / Marathon, AC brushless alternator ( USA, Factory in China)
3) Control Module GCM338 ( Made in Hong Kong) option with Deepsea5110; Deepsea5220;
4) Circuit breaker
5) Rubber isolator for engine, alternator and control panel
6) 24V Battery with battery cables and rack
7) Industrial silencer
8) Option with base fuel tank or separately
9) Standard tools kit
10) English operation/maintenance manuals
11) Quality Certifications
12) Warranty against manufacturing defects shall be covered in a period of 18 months or 1200 running hours whichever comes first
B: GENERATOR SET ENGINE MODEL: 16V165TS3-3D
1) Brand: Doosan
2) Cooling Mode: Water Cooled
3) Rotation: 1500RPM or 1800RPM
4) Turbocharged with cooling fan, water cooling tank, 24V electric starting system
5) Overspeed Capacity: 120%
6) Overload Capacity: 110%
7) Fuel: Diesel
C: DIESEL GENERTOR ALTERNATOR MODEL: MX-1540-4
1) Brand: Marathon
2) Specifications: 50Hz OR 60Hz (avilable), 400/230V, 3 Phase / 4 Line, PF: 0.8
3) Wave Distort: Less than 10%
4) Electric System: 24V
5) Volt Fluctuation: Less than 0.5%
6) Type: H-class insulation, IP21-IP23 protection, Direct Coupled, Brushless, Synchronous, AVR
D: GENERTOR SET CONTROL PANEL
1) Controller System: GCM 338 Automatic engine shutdown protection capability with LED indicator for low oil, high engine temperature, overspeed and failure to start.
2) Control Panel
Contains voltmeter, tachometer, hour meter, frequency meter, fuel level indicator, engine temperature gauge, charging gauge and MCCB
Soundproof canopy is avilable also
FMG SERIES DIESEL GENERATOR SET TECHNICAL PARAMETER |
GENSET MODEL |
RATED POWER |
Engine model |
Fuel consumption (g/KWh) |
Engine data |
NoisedB(A) |
Net weight (kg) |
Dimension (L*W*H)(mm) |
STANDBY POWER (KW/KVA) |
Prime power (KW/KVA) |
structure |
Bore (mm) |
stroke(mm) |
Disp- (L) |
compress ration |
F MG396-1320 |
1 320/1650 |
1200/1500 |
16V165TS3-3A |
214 |
1 6V |
165 |
185 |
63.36 |
15.5:1 |
102 |
11200 |
5 600×2100×2600 |
FMG396-1 540 |
1 540/1925 |
1400/1750 |
16V165TS3-3B |
212 |
1 6V |
165 |
185 |
63.36 |
15.5:1 |
103 |
11500 |
5 600×2100×2600 |
FMG396-1650 |
1 650/2063 |
1500/1875 |
16V165TS3-3C |
212 |
1 6V |
165 |
185 |
63.36 |
15.5:1 |
103 |
12000 |
6100 ×2100×2700 |
FMG396-1760 |
1760/2200 |
1600/2000 |
16V165TS3-3D |
210 |
1 6V |
165 |
185 |
63.36 |
15.5:1 |
105 |
12580 |
6100 ×2100×2700 |
FMG396-1980 |
1 980/2475 |
1800/2250 |
16V165TS3D-3B |
210 |
1 6V |
165 |
185 |
63.36 |
15.5:1 |
106 |
13300 |
6500 ×2200×2700 |
FMG396-2200 |
2 200/2750 |
2000/2500 |
16V165TS3D-3D |
212 |
1 6V |
165 |
185 |
63.36 |
15.5:1 |
106 |
14500 |
6800 ×2350×2700 |
REMARK: 1, All above information fit with 50HZ, 1500rpm, 400/230V, power factor 0.8 lag, 3 pahse 4 line, double bearing diesel generator set |
60 HZ ALSO AVILABEL |
2, All information in this document is correct at the time of printing but may be altered subsequently by the company. |
