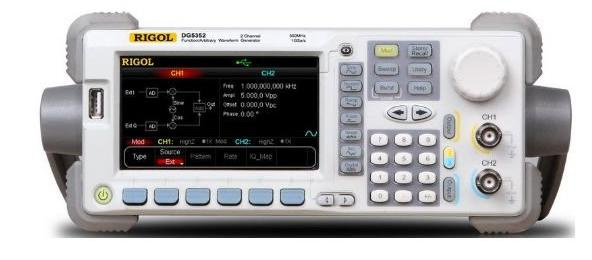

4.3 inches, 16M true color TFT LCD
350 MHz, 250 MHz or 100 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution
Single/dual-channel models. The dual-channel model supports frequency and phase coupling
The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice
Support an external power amplifier (optional) that can be configured online
Support frequency hopping output(optional) with hopping interval up to 80 ns and arbitrary editing frequency hopping patterns
14 standard waveform functions: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haversine, Lorentz, Dual Tones and DC
Rise/Fall Time of the Pulse could be adjusted separately
Enable to edit arbitrary waveform up to 512 kpts and output arbitrary waveforms up to 128 Mpts
Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
Support user-defined IQ vector signal modulation and IQ baseband/IF source output
Support Frequency Sweep and Burst output
Abundant I/O: Waveform output, synchronous signal output, modulation input, 10 MHz clock input/output, trigger input/output
Specification |
Max. Output Frequency |
100MHz |
Max, Sample rate |
1GSa/s |
Vertical Resolution |
14bits |
Max. Arb Memory Depth |
128Mpts |
Channel |
1 |
Weight |
5.8kg |
Dimension |
WxHxD: 230mmx106mmx501mm |
Square |
1uHz to 120MHz |
