*Superiority & Feature*

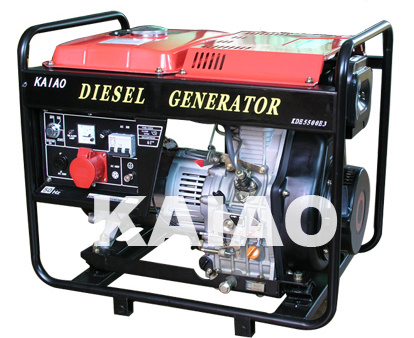

KAIAO diesel engine generator
1. New automatic voltage regulator ensures steady voltage output, with over loading protection function.
2. Low oil pressure alarm system which can shut down the engine automatically.
3. Electric starting system allows fast starting
4. Three-phase output meets the diversified demands of customers
5. Integrated cabinet ensures the set running silently.
| KDE5500X/E/X3/E3 |
| Model | KDE5500X/E | KDE5500X3/E3 |
| Frequency(HZ) | 50 | 60 | 50 | 60 |
| Rate Power(KVA) | 4.2 | 4.8 | 5.3 | 6 |
| Max. power(KVA) | 4.5 | 5.2 | 6 | 6.5 |
| Voltage(V) | 115/230 | 120/240 | 230/400 | 240/416 |
| Current(A) | 36.5/18.3 | 40/20 | 7.7 | 8.3 |
| Engine speed(r/min) | 3000 | 3600 | 3000 | 3600 |
| Phase | Single | 3-phase |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | 77 |
| Fuel tank capacity (L) | 12.5 |
| Structure | open-frame |
| Panel | Oridinary |
| Output socket | Two | One single-phase, and one3-phase |
| Output terminal post | No |
| DC12V output | Terminal post |
| Net weight(kg) | Type X: 95 Type Y: 100 |
| Dimension(L*W*H) | 760*515*710 |
| Engine Model | KA186F |
| Engine Type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Bore*stroke (mm) | 86*70 |
| Displacement (L) | 0.406 |
| Power (KW) | 5.7/3000 | 6.3/3600 | 5.7/3000 | 6.3/3600 |
| Fuel consumption rate (g. KW/h) | 271.5 | 280 | 271.5 | 280 |
| Compression ratio | 19 |
| Lubrication system | Spring |
| Engine starting system | Type X: Recoil starter Type E: Electric starter |
| Diesel oil model | Summer: 0#, Winter: -10# |
| Lube oil model | SAE10W-30(above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Battery capacity(V-AH) | 12V-36Ah |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
