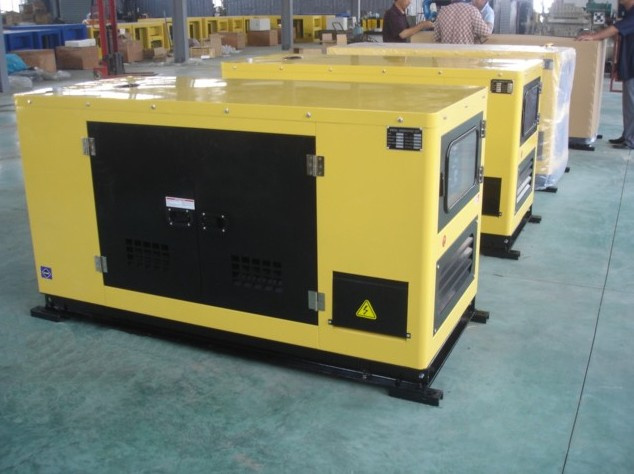

8-24kw Diesel Gensets with Yangdong Engines
MODEL OF GEN-SET 8GF(LDE) 10GF(LDE) 12GF(LDE) 15GF(LDE) 20GF(LDE) 24GF(LDE) 30GF(LDE)
Continuous output of gen-set 8KW 10KW 12KW 15KW 20KW 24KW 30KW
Diesel Engine Model YD380D YD385D YD480D YD485D YD490D YD4100D YD4102D
Type Water-cooled, Four-stroke, in-line, direct injection
No. Of cyliner 3 3 4 4 4 4 4
Bore *Stroke (mm) 80*90 85*90 80*90 85*90 90*100 100*105 102*118
Ttl. Displacement (L) 1.357 1.532 1.809 2.043 2.545 3.298 3.857
Compression ratio 22: 01 22: 01 22: 01 19: 01 17.5: 1 17.5: 1 16.5: 1
Induction system Naturally-aspirated
Rated output (KW) 12 KW 13 KW 16 KW 18KW 23KW 30KW 36KW
Rated speed (rpm) 1800
Fuel consumption (g/kw. H) ≤ 247 ≤ 262.5 ≤ 250.2 ≤ 265.2 ≤ 247.5 ≤ 237 ≤ 238
Oil consumption (g/kw. H) 2.72 2.72 2.65 2.04 1.87 1.65 1.4
Cooling method water-cooled with radiator
Starting method D. C. 12V Electric starting
Alternater Model (stamford as option) TF(D)W-8KW TF(D)W-10KW TF(D)W-12KW TF(D)W-15KW TF(D)W-20KW TF(D)W-24KW TF(D)W-30KW
Rated power 8KW 10KW 12KW 15KW 20KW 24KW 30KW
Rated voltage 120/208V, 480/277V, etc.
Rated current According to the selected voltage and phase
Rated frequency 60Hz
Rated speed (rpm) 1800
Power factor 0.8
Phase connection 1-phase or 3-phase
Windingconnection 4 -wire connected
Excitation method Brushless
Voltage regulation AVR
CONTROL PANEL V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, AVR, temp. And pressure gauges, indicating lamp, hour meter, engine protection device, key starter, etc.
G/N. WET (kg) 560/500 580/520 610/550 750/690 980/920 1000/940 1100/1000
PACKING SIZE (m) 1.75*0.95*1 1.9*0.95*1.05 1.9*0.95*1.05 2*0.96*1.1 2*0.96*1.1 2*0.96*1.1 2.3*1.1*1.3
Mindong Wanli Electric Machine Co.Ltd.Is a professional and experiential manufacture of diesel gensets, gasoline generators, LPG generators, water pumps and agriculture machines.Our products are widely used in various basic industries, and sold to Southeast Asia, Europe, South America, Middle East, and other twenty countries and regions;They are deeply favored and praised by most customers.
We have passed ISO9001, and always emphasize regularized management, utilize standard productive technology, implement normativ operation, and also own perfect detection techniques to ensure the stabilization of the quality.
Our products can satisfy customers' various strict requirements, and meet request for the special uses and needs for our customer.Meanwhile.We establish a productive system with fast reaction to service online, assure the after-sales services.We commit ourselves to being the best supplier by providing products with the best capability/price ratio.Spare parts are ready in stock for immediate production and prompt delivery to shorten your capital flow period.
Please don't hesitate to contact us for further details.We are looking forward to forming a profitable business relationship with your company in the near future.
