1) Output range: From 10kW (12.5kVA) up to 110kW (137.5kVA)
2) Engine model: Weichai, Yangdong, Cummins, new Holland and so on
3) Alternator model: Stamford.
Cummins generating
Detailed Description

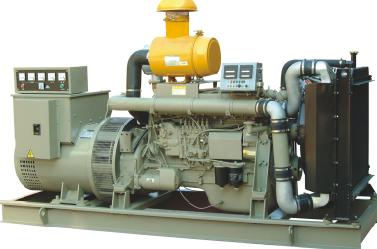

Open-frame water-cooled diesel genset
Detailed Product Description
Features:
1) Rated output: 8 - 500kW / 10kVA - 625kVA
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8
Engine: LOVOL or Deutz or Cummins or New Holland China
1) Cooling method: Closed water cooling or air force cooled
2) Starting method: Electric start
3) Rated speed: 1, 500 / 1, 800rpm
4) Noise level: 75dB to 80dB 7 meter away
Alternator:
1) Brand: Stamford or Leroysomer or Our WT series
2) Rated output: 8 - 500kW / 10kVA - 625kVA
3) Rated voltage: 400 / 230V
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1, 500rpm / 1, 800rpm
9) Excitation: Harmonic excitation or phase compound or brushless
11) Voltage regulation: Automatic
12) 1.0% voltage regulation (max. ) in static conditions
13) Protection class: IP 22 or IP23
Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
A) Standard engine instrumentation
B) Voltmeter with selector switch
C) Ammeter with selector switch
D) Frequency meter
E) Current transformers
F) Instrument fuses duly wired and ferruled
G) MCB of suitable rating with overload and short circuit protection
H) With AMF control panel or with ATS (automatic transfer syste)
I) With EPA certification
Mindong Wanli Electric Machine Co.Ltd.Is a professional and experiential manufacture of diesel gensets, gasoline generators, LPG generators, water pumps and agriculture machines.Our products are widely used in various basic industries, and sold to Southeast Asia, Europe, South America, Middle East, and other twenty countries and regions;They are deeply favored and praised by most customers.
We have passed ISO9001, and always emphasize regularized management, utilize standard productive technology, implement normativ operation, and also own perfect detection techniques to ensure the stabilization of the quality.
Our products can satisfy customers' various strict requirements, and meet request for the special uses and needs for our customer.Meanwhile.We establish a productive system with fast reaction to service online, assure the after-sales services.We commit ourselves to being the best supplier by providing products with the best capability/price ratio.Spare parts are ready in stock for immediate production and prompt delivery to shorten your capital flow period.
Please don't hesitate to contact us for further details.We are looking forward to forming a profitable business relationship with your company in the near future.
