Professional generator, OEM factory in Guangzhou
Stock available
Yangdong
SGS, Soncup
10KVA, 60KVA, 100KV, 150KVA, 200KVA, 250KVA, 300KVA, 600KVA are available
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JIUAN
Model Number: Generator CDY15KVA
Output Type: AC Three Phase
Speed: 1500/1800RPM
Frequency: 50/60HZ
Rated Power: 15KVA/12KW
Rated Voltage: 110-440V
Rated Current: 23A@380V
Generator Engine: China brand good engine Yangdong
Generator Alternator: Stamford, Marathon etc
Generator Controller: Digital (auto) or meter panel
Color: According to customers request
China Brand Generator: Yangdong Generator
Packaging & Delivery
Packaging Details: Generator standard export packing: Steel frame and pollywood
Delivery Detail: 20 days or generator stock available
Specifications
China Brand Generator Good
1.65dBA at 7 meter, automatic
2. Auto transfer with city power
3. Fuel save, strong power, run stable
Generator
1. Open type or silent type (soundproof type), Super Silent
2. Generator powered by Engine: Cummins, engine, Lovol, Deutz, WeiChai, Yangdong, ISUZU
3. Alternator: Stamford, Marathon, Leroy Somer etc
Generator Rated output: 5KVA - 2000KVA
Rated frequency 50/60 HZ
Rated voltage 230/400V, 220/380V, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
Option: ATS, AMF, Trailer, Container
|

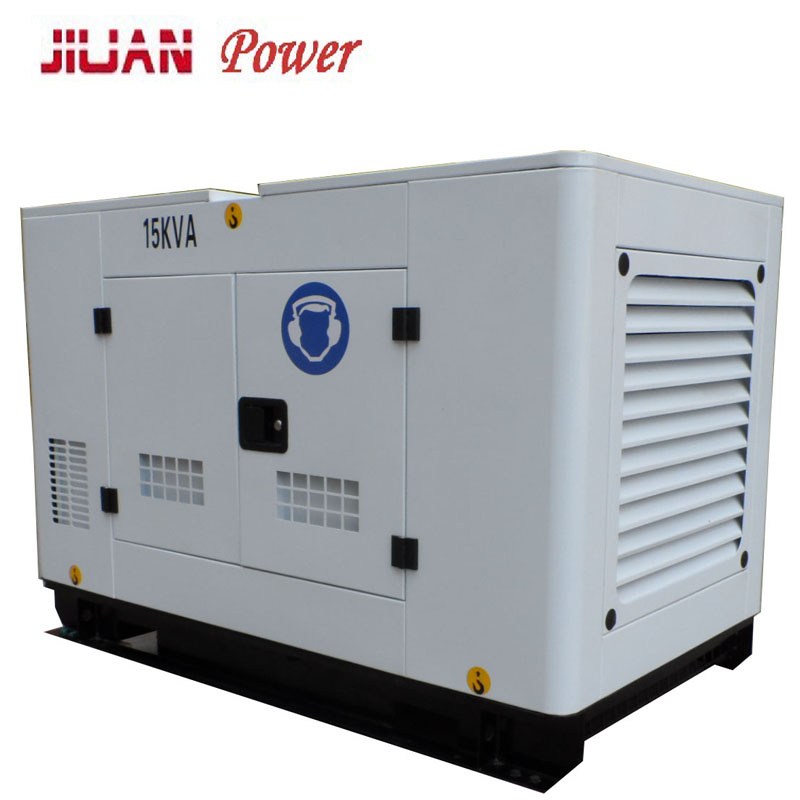

Diesel Generator Set 15 KVA |
Generator
Specifications |
Generator Model |
CDY15KVA/12KW |
|
Generator Prime Power |
15KVA/12KW |
|
Generator Standby Power |
|
|
Generator Engine Model |
YD485 |
|
Generator Alternator |
Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
|
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
|
Controller |
Smartgen PI044Gor DeepseaLTG164G |
|
Dimensions (L*W*H) |
1680*960*1060mm |
|
20FT/40HQFT Container |
2PCS/4PCS |
|
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
|
Generator MOQ |
1PCS |
|
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
|
Payment |
T/T or Cash |
|
Please give detail needs in your inquiry, so that we can make power solutions for you. |
China Brand Generator
Model
|
CDY-12kw/15kva |
Generator Set Power
|
12kw/15kva
|
|
Generator Powered by Yangdong Engine |
|
Diesel Engine Model |
YD485 |
|
Engine Characters |
Water-cooled, in line, 4-cycle, direct injection, 1500rpm
|
Bore x Stroke (mm)
|
85x95
|
Rated Output
|
17kw/21kva
|
Fuel Consumption (g/kw.hr)
|
262
|
Lube Consumption (g/kw.hr)
|
2.72
|
Compression Ratio
|
18
|
Starting
|
Electric (12V)
|
ALTERNATOR MODEL
|
Stamford copy 164D
|
Rated Power
|
12kw/15kva
|
Voltage (V)
|
220/380 240
|
Current (A)
|
21
|
Frequency (Hz)
|
50
|
Power Factor (cos )
|
0.8
|
Brush/Brushless
|
Brushless
|
Dimensions (LxWxH) mm
|
S: 1680x960x1060
|
Gross Weight (KGS)
|
600
|
20FT
|
12 PCS
|
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
