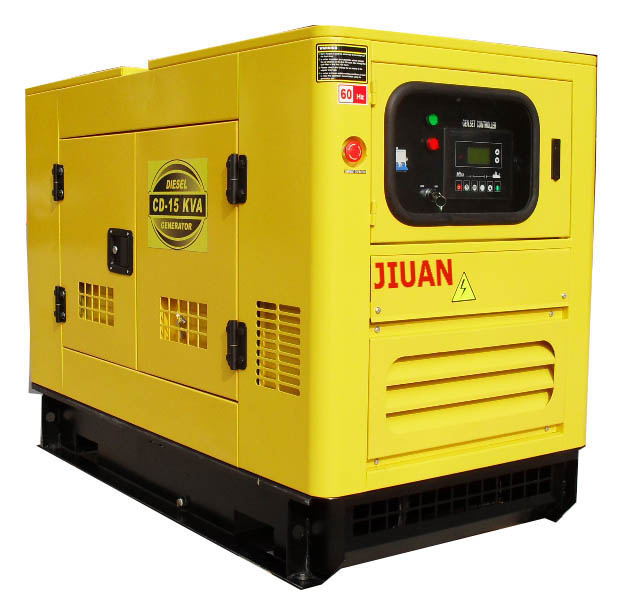

Generator for Sale Price for 15kVA Power Generator (15kVA)

.Professional generator OEM factor in guangzhou
. small diesel generator Stock available
. Generator 10kva
. SGS, SONCUP

Factory Directly! Professional generator OEM factory Guangzhou
2. Super silent 60dB(A) at 7 meters
3. Certificate: SGS, Soncap approval
4. Super silent brand new Cummins engine/Stamford alternator/auto start

Generator stock 30kVA 15kVA 60kVA 100kVA 150kVA 200kVA Shipping at once.

1. description of products

PERKINS Diesel Generator Set - Model CD-P15KVA

MODEL	CD-P12KW/15KVA
Powered by PERKINS Engine
Standby Power (50HZ)	12KW/15KVA
Prime Power (50HZ)	11KW/14KVA
Engine Model	Original Uk Perkins 403D-15G
Engine Prime Power (50HZ)	12.2KW
Engine Standby Power (50HZ)	13.5KW
Speed	1500rpm
Cylinders	3L
Bore x Stroke	84 x 90 mm
Fuel Consumption(100% loading)	3.6 L/H
Displacement (L)	1.496
Compression Ratio	22.5:1
Cooling Method	Water - cooled
Starting Method	12V DC electrical start
Alternator Model	LEADTECH OR STAMFORD 164C
Voltage	220V/380V
Electric Current	22A
Power Factor	0.8
Phase	3-phases
Brush/Brushless	Brushless
Insulation Grade	H
Protection Grade	IP23
G.W	600 KGS
Overall Size	1680x900x1100 MM SILENT 2100*900*1200MM SUPER SILENT
20FT	12 PCS
OPTIONAL	ATS(auto transfer switch)
	Auto Battery Charger
	AMF (auto mains failure)
	SUPER SILENT

Features of Gen.set with China Yangdong Engine (China engine):

1.12 months parts warranty service

2.Short delivery time,as we always have Yangdong engine in stock

3.Spare parts are easy to get from worldwide market with much cheaper price

4.Perfect after-sales service network

5.Both 50HZ @1500rpm and 60HZ@1800rpm are available

6.Rigorous test including 50% load,100% load and 110% load

7.Stronger power with affordable price

8.China good brand engine

Standard configuration of generator with China Yangdong design:
1.Original engine

2.Alternator coupled with Stamford alternator, copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer
mounted,Containerized
4.Controller Smartgen 6110

5.Circuit breaker CHNT

6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.

7.Free-maintenance battery with Auto Battery Charger

8.Industrial silencer each 2 PCS per set with flexible exhaust hose.



Alternator Features:

1. World famous brand AC alternator: Stamford, Leroy somer, Marathon, Faraday, copy Stamford
2. Brush less with AVR
3. Brush less 4 poles, rotation magnet
4. AVR Voltage regulation less than ± 1%, AVR self-regulated
5. Protection class IP23
6. Insulation system is class "H"
Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display: English; Spanish; Russian; Chinese
Data Display: Power, Voltage, Current, Frequecny, Speed, Oil pressure, Water Temperature, Fuel Level
Protection (auto alarm system): High voltage; Low voltage; High Speed; Low Speed; Over Current; Lose Phase; Low oil pressure; High water temperature
Functions: Auto start; Auto stop; ATS(auto transfer system); AMF(auto mains failure system)

JIUAN Genset testing items:
1. Loading testing: All qualified generator sets are subjected to a comprehensive performance test which includes 0% load, 25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2. Parts fault testing.
3. Fuel tank pressure testing.
4. Bolt tightening torque testing.
5. Voltage bearing and insulation testing
6. Noise level testing

3. After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611

4. Terms of Payment
1. T/T
2. Western Union
3. Cash

1. Introduction of Company
Business Type: Manufacturer
Location: Guangzhou, China (Mainland)
Year Established: 2008
Registration No.: 440111000040106
Main Products:
Professional diesel generator OEM factory.


3. Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 50kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck

4. Where Our Generator Used for?
Home, Factory, Hotel, Restaurant, Building site, Super market, Hospital etc

5. Why Choose Us?
Good Reasons Why You Choose JIUAN Generator:
1. Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3. High quality products at affordable prices.
4. Products lines verified by professional inspectors.
5. Place orders safety.
6. All engines and alternators are brand new and original - Credible.
7. Controller Deepsea or Smartgen -BIG Brand.
8. Air Breaker ABB CHNT Schneider ASK - Safety.
9.1% parts free are available for your order.


6. Welcome to contact us
Www.Jiuan-power.Com10kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA, 600kVA, Available

Diesel Generator Set 10 KVA
Generator Specifications	Generator Model	CD-P12kw/15kva
	Generator Prime Power	11KW/14KVA
	Generator Standby Power	12KW/15KVA
	Generator Engine Model	403D-15G
	Generator Alternator	Stamford;Marathon;Leroy Somer;Faraday;Stamford copy
	Canopy for Choice	Super silent;Silent;Open frame;Trailer
	Controller	Smartgen or Deepsea
	Dimensions (L*W*H)	1700*960*1060mm=1.72992CBM
	20FT/40HQFT Container	12PCS
Generator Warranty	1800 hours or 1 year subject to the ealier one.
Generator MOQ	1PCS
Certificate	SGS;Cummins Authorized Factory;TUV;Soncap
Payment	T/T or Cash
Please give detail needs in your inquiry, so that we can make power solutions for you
