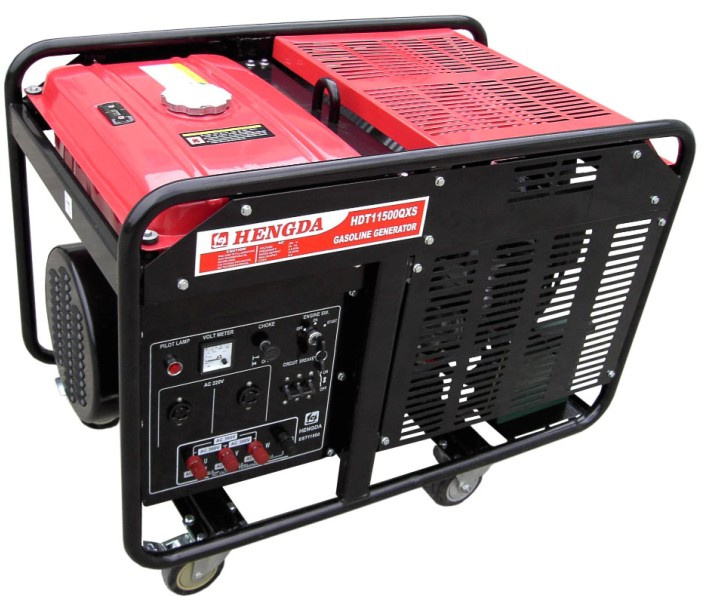

Generator
( Model ) Es Series
Hd11000qxs Hdt11500qxs
Engine Model Ch20 Ch20
Type Air-Cooled 4-Stroke Air-Cooled 4-Stroke
Displacement (Ml) 614
Max Output Hp/Rpm 20/3600
Fuel Gasoline
Fuel Tank Capacity 26l
Ignition System T.C.I
Starting System Electric Start
Generator Type Brushless/Brush
Voltage Regulator A.V.R
Frequency (Hz) 50 60 50 60
Rated Voltage (V) 220 220 400 230/400
Max Output (Kva) 9.5 10.5 10.5 11.5
Rated Output (Kva) 8.5 9.5 9.5 10.5
Phase Single-Phase Three-Phase
Power Factor 1.0 0.8
Standard Features
Large Air Cleaner With With
Large Vulome Fueltank With With
Large Muffler With With
Fuel Meter With With
Volt Meter With With
Ac Circuit Breaker With With
Oil Protect System With With
Storage Battery With With
Wheel With With
Optional 12v Dc Output With With
Packing Dimensions L&Times;W&Times;H (Mm) 960&Times;618&Times;630 960&Times;618&Times;630
G.W (Kg) 196 206
N.W (Kg) 190 198
Ningde Mindong HED Electric Co., Ltd., founded in 2002, is a professional manufacturer of motors, welders, generators and generator sets.
We are located in Fu'an City, Fujian Province. At present, we export about 15, 000PCS of motor products per month to the markets of America, Italy, Germany, and the Netherlands. Most of our products are approved by CE or UL and each component is produced according to European Union RoHS Standard.
Our generator sets are at the leading position of our patented products. For example, the series of welding and generator, the series of single-phase and three-phase two-way generator set with constant power output, the series of dual voltage generator set, and the series of low noise generator set with ATS are exported to North America with EPA Certificate and to Europe with CE Certificate. Till 2006, the amount value of our export reaches more than USD5, 000, 000.
After developing for many years, our company covers 9, 800 square meters and has more than 300 workers now. We have talented technique group and can make designs independently and make production as customers' demands. In addition, our production and management are all running strictly with the ISO9001 System. We are famous for our persistent guideline which regards credence and client as the uppermost goal.
We sincerely expect to make full use of the international market and cooperate with more abroad partners.
