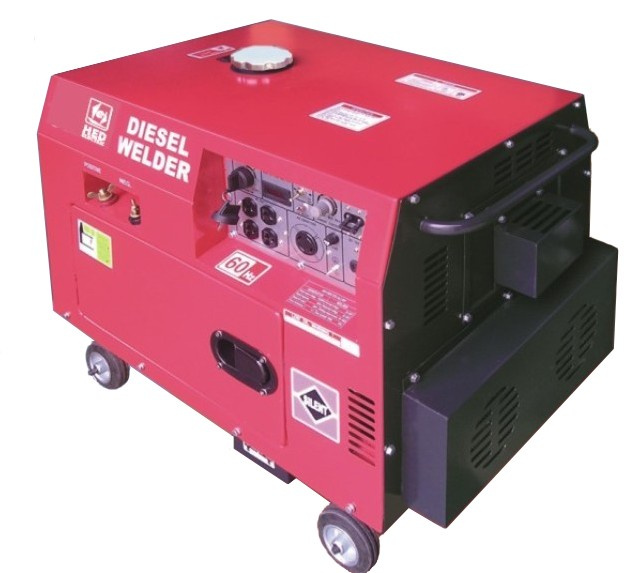

Model HD180CXS-AC/SP
ENGINE
Type 186FD
Combustion mode Direct injection
Displacement CC 406
Max output HP/rpm 10/3600
Fuel tank capacity L 15
Fuel consumption rate g/KWh 250
Cooling method Forced-air
Starting method Electric
WELDERDC
No-load voltage(AC) V 5880
Working voltage(AC) V 2228
Welding current range(AC) A 50180
Duty CycleAt welding current160A % 40
GENERATOR
Phase number 1 3
Rated outputAC KVA 2 1.5
Rated frequency Hz 60 60
Rated voltage V 110/220 380
Power factor 1.0 1.0
STANDARD FEATURES
Electric Cable without
Electrode Holder without
DC 12V Electric Cable with
Plugs with
Truckle with
Storage battery 24AH
SET
Overall dimensionWith truckle mm
965 X 515 X 750mm
Net weight Kg 163
Gross weight Kg 171
20 FT set 66
Ningde Mindong HED Electric Co., Ltd., founded in 2002, is a professional manufacturer of motors, welders, generators and generator sets.
We are located in Fu'an City, Fujian Province. At present, we export about 15, 000PCS of motor products per month to the markets of America, Italy, Germany, and the Netherlands. Most of our products are approved by CE or UL and each component is produced according to European Union RoHS Standard.
Our generator sets are at the leading position of our patented products. For example, the series of welding and generator, the series of single-phase and three-phase two-way generator set with constant power output, the series of dual voltage generator set, and the series of low noise generator set with ATS are exported to North America with EPA Certificate and to Europe with CE Certificate. Till 2006, the amount value of our export reaches more than USD5, 000, 000.
After developing for many years, our company covers 9, 800 square meters and has more than 300 workers now. We have talented technique group and can make designs independently and make production as customers' demands. In addition, our production and management are all running strictly with the ISO9001 System. We are famous for our persistent guideline which regards credence and client as the uppermost goal.
We sincerely expect to make full use of the international market and cooperate with more abroad partners.
