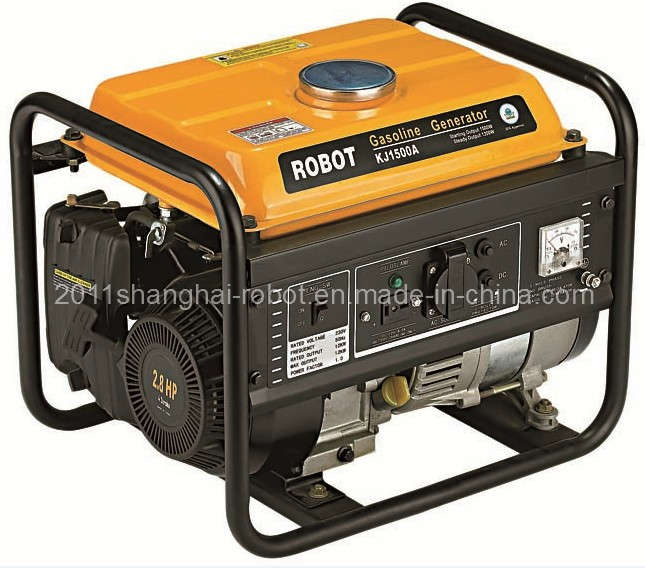

Specification KJ1500A-2
Type Brush, Revolving Magetic Field, 2 Poles, Single-phase
Frame Φ 19mm Steel Tube
Rate AC Output 1.2KW
Max. AC Output 1.5KW
Frequency 60Hz
Voltage 120V
Voltage Regulator AVR(automatic voltage regulator)
Power Factor Cos=1.0
Engine Model 154F 2.8HP
Type Air-cooled, 4 stroke, OHV, single cylinder
Bore× Stroke 53mm× 38mm
Displacement 84ml
Recommended Fuel Unleaded Gasoline
Fuel tank capacity 5.5L
Fuel consumption ≤ 450g/KW-hour
Engine Oil Capacity 0.4L
Start Mode Recoil and hand-operated
Oil Alert with
Fuel Gauge with
AC Voltmeter with
Indicator Light without
AC Circuit Breaker with
Electric Starter without
DC socket (12V/8.3A) with
DC Circuit Breaker with
Bottom Rubber with
Foam Packing without
Battery(12V) without
Handle without
4 Wheel without
Cont. Working time 6-7h
Noise level (7m) 63-65dB(A)
Packing Dimension L× W× H 460× 370× 385mm
Net Weight 26kg
Gross Weight 27kg
Per 20' GP CNT 461Sets
Per 40' GP CNT 740Sets.
Shanghai Robot Power Machinery Co., Ltd is Located at Shanghai Fengjing Industrial Area, the Yangtze River Delta, Shanghai Robot Machinery Co., Ltd. was founded in 2003, covers an area of 60 mu. (The first phase of 22, 000 m2 and the second phase of 16, 000 m2 construction area has been completed). Robot now has more than 180 employees including 48 junior and senior engineers and techinicians, the most advanced R&D center developing gasoline engines (horizontal shaft and vertical shaft) and garden machinery using these engines.
Shanghai Robot is a high-tech enterprise with the right to do import and export business. Robot now has 10 auto-assembly lines, advanced research and development center, testing center and laboratory. At present, Robot has an annual production capacity of 1, 200, 000 units general-purpose gasoline engines and 400, 000 sets garden machinery including mower, cultivator, snow sweeper.
By integrating scientific research, manufacturing, marketing, logistics together, Robot has built a platform to synchronize itself with the international market and started doing business in accordance with the eperating mode of big international companies.
Robot Company has passed ISO9002 quality system certifications, and its products also have passed such certifications as EPA, CSA, CARB, CE, EUII, EMC, AND GS, Robot Company has its own brand named "ROBOT" and three patents for its engines with vertical shaft.
