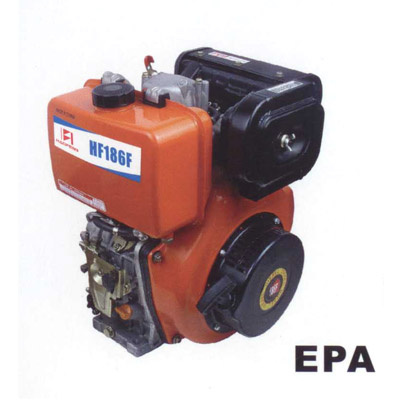

Model: HF186F / HF186FA
Type: Forced air-cooled, 4-stroke, Single cylinder Diesel Engine
Bore*Stroke: 86*70 / 86*72
Displacement (cc): 406 / 418
Compression Ration: 19: 1 / 19: 1
Engine Speed: 3000 3600 / 3000 3600
Max. Output( Hp/rpm): 8. 8 10. 0 / 9. 0 10. 2
Max. Torque(N. M/rpm): 7. 7 9. 0 / 7. 9 9. 2
Ignition System: Direct Injection
Starting System: Recoil(Recoil+Electric start)
Fuel: : Direct Light Fuel
Fuel Tank capacity(L): 5. 5
Fuel Consumption(g/Hp. H): 275
Oil: : SAE 10W30(Above CC grade)
Oil capacity(L): 1. 65
Net Dimension L*W*H(mm): 470*417*494
Overall Dimension L*W*H(mm): 510*510*570
N. W/G. W(kg): 48/53
20GP\40GP\40HQ: 176/368/368
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
