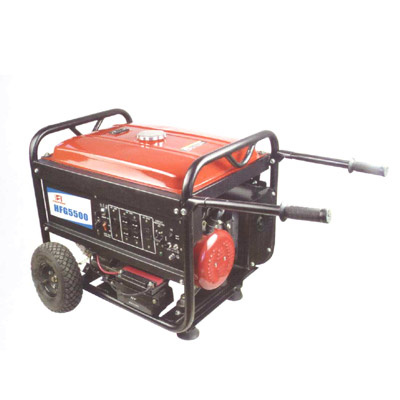

Model: HFG5500
Model: 188F
Tape: Forced air-cooled 4-stroke OHV single cylinder
Displacement(ml): 389
Maximum Output(hp/rpm): 13Hp/3600rpm
Ignition system: Non-contact transistorized magneto
Starting system: Recoil and hand-operated
Fuel tank capacity(l): 25
Fuel consumption(L/H): 2. 7
Continuous operating Hours(H): 9
Engine oil capacity: 1. 1
Operating Noise at 7m(dB): 74
Phase number: Single phase/three phase
Rated freqyebct(Hz): 50/60 50/60
Rated Voltage(V): 220/110 380/220
Power factor: 1. 0 1. 0
Rated output(KW): 5. 0 5. 0
Maximum AC output(KW): 5. 5 5. 5
Dc output in low voltage: 12V, 8. 3A
Dimension L*w*H(mm): 685*560*575
N. W. /G. W. (Kg): 86/88
20Gp/40Gp: 128/272
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
