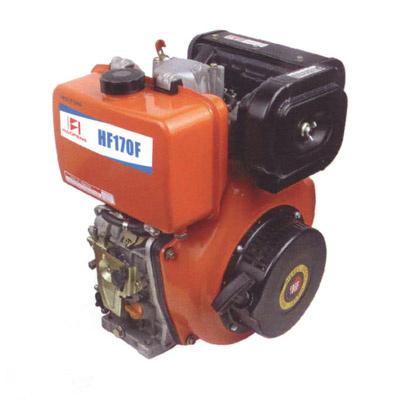

Model: HF170F / HF170FA
Type: Forced air-cooled, 4-stroke, Single cylinder Diesel Engine
Bore*Stroke: 70*55 / 70*57
Displacement (cc): 211 / 219
Compression Ration: 20/1 / 20/1
Engine Speed: 3000 3600 / 3000 3600
Max. Output( Hp/rpm): 3. 8 4. 2 / 3. 85 4. 25
Max. Torque(N. M/rpm): 3. 4 3. 8 / 3. 45 3. 85
Ignition System: Direct Injection
Starting System: Recoil(Recoil+Electric start)
Fuel: Direct Light Fuel
Fuel Tank capacity(L): 2. 5
Fuel Consumption(g/Hp. H): 280
Oil: SAE 10W30(Above CC grade)
Oil capacity(L): 0. 75
Net Dimension L*W*H(mm): 392*332*416
Overall Dimension L*W*H(mm): 430*345*470
N. W/G. W(kg): 27/32
20GP\40GP\40HQ: 420/870/870
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
