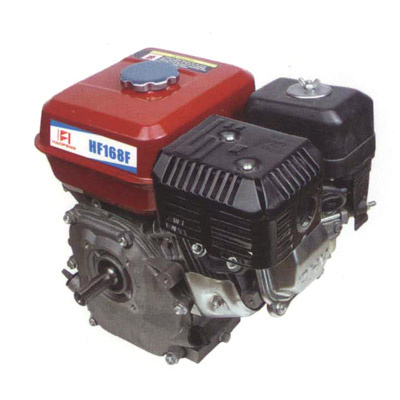

Model: HF168F / HF168F-1
Type: Forced air-cooled, 4-stroke, OHV single cylinder
Bore*Stroke: 68*54 / 68*54
Displacement (cc): 163 / 196
Compression Ration: 8. 5: 1 / 8. 5: 1
Max. Output( Hp/rpm): 5. 5/3600 / 6. 5/3600
Max. Torque(N. M/rpm): 1. 1/2500 / 1. 3/2500
Ignition System: T. C. I.
Starting System: Recoil(Recoil+Electric start)
Fuel: Unleaded Gasoline
Fuel Tank capacity(L): 3. 6
Fuel Consumption(g/Hp. H): 230
Oil: SAE 10W30(Above CC grade)
Oil capacity(L): 0. 6
Net Dimension L*W*H(mm): 362*312*335
Overall Dimension L*W*H(mm): 390*340*390 (445*347*390)
N. W/G. W(kg): 15/17 16/18
20GP\40GP\40HQ: 600/1200/1200(480/990/990)
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
