Standard Equipment:
Frame/machine Cover(all Frame),Volt,Meter,Circuit Breaker,Engine Oil warning system,Big Air Cleaner,Avr Type,A.C.Machine Annex
| FOB NINGBO PRICE | ||

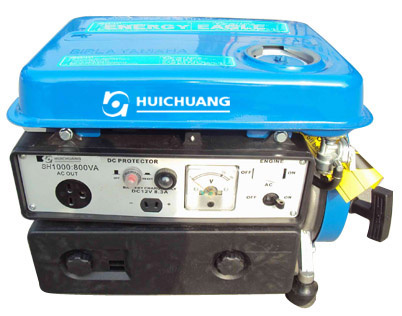

| Specification | HC1000 650W | |
| Generator | Type | Brushless,Revolving Magnetic Field, Self-excitating, 2 Poles, Single-phase |
| Frame | — | |
| Rate AC Output | 0.65KW | |
| Max.AC Output | 0.75KW | |
| Frequency | 50Hz | |
| Voltage | 220-240 | |
| Voltage Regulator | Condenser | |
| Power Factor | Cos=1.0 | |
| Engine | Model | 1E45F 2.0HP |
| Type | Forced Air-cooled, 2-Stroke, Single-cylinder, Reed Valve | |
| Bore×Stroke | 45mm×42mm | |
| Displacement | 63cc | |
| Recommended Fuel | Unleaded Gasoline | |
| Fuel tank capacity | 4.2L | |
| Fuel consumption | ≤544g/KW-hour | |
| Engine Oil Capacity | Gasoline and Oil mixing ratio 40:1 | |
| Start Mode | Recoil and hand-operated | |
| Standard Features | Oil Alert | |
| Fuel Gauge | ||
| AC Voltmeter | ||
| Indicator Light | ||
| AC Circuit Breaker | ||
| Electric Starter | ||
| Option | DC socket (12v) | |
| DC Circuit Breaker | ||
| Battery(12V) | ||
| Handle | ||
| 4 Wheel | ||
| Set | Cont. working time | 5.9-6.3h |
| Noise level (7m) | 60-61dB(A) | |
| Packing Dimension L×W×H | 380×325×335mm | |
| Net Weight | 16.8kg | |
| Gross Weight | 17.8kg | |
| Per 20’ GP CNT | 725Sets | |
| Per 40’ HQ CNT | 1500sets | |
| Prod Model: | HC1000 |
|---|
