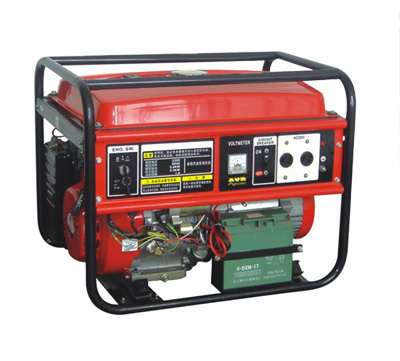

Generator Model: SRSG3300, SRSG3800, SRSG4500, SRSG5500 Gasoline Generators
Engine Model: 173F, 177F, 182F, 188F
Engine Type: Forced air-cooled 4-stroke OHV single cylinder
Displacement(ml): 242, 270, 337, 389
Maximum output(HP/rpm): 9.0Hp/3600rpm, 9.0Hp/3600rpm, 1.1Hp/3600rpm, 13Hp/36rpm
Lgition System: Non-contact Transistorized Magneto
Starting System: Recoil and hand-operated
Fuel Tank Capacity(L): 25, 25, 25, 25
Fuel Consumption(L/H): 2, 2.2, 2.45, 2.7
Continuous Operating Hours(H): 12.5, 11, 10, 9
Engine Oil Capacity: 1.1, 1.1, 1.1, 1.1
Operating Noise at 7m(dB): 69, 71, 72, 74
Generator Phase number: Single phase, Three phase, Single phase, Three phase, Single phase, Three phase
Generator Rated Frequency(Hz): 50/60, 50/60, 50/60, 50/60, 50/60, 50/60, 50/60, 50/60
Reted Voltage(V): 220/110, 380/220, 220/110, 380/220, 220/110, 380/220, 220/110, 380/220,
Power Factor: 1.0, 1.0 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0
Reted Output(KW): 3.0, 3.0, 3.5, 3.5, 4.0, 4.0, 5.0, 5.0
Maximum AC Output(KW): 3.3, 3.3, 3.8, 3.8, 4.3, 4.3, 5.3, 5.3
DC Output in low voltage: 1.2v. 8.3A, 1.2v. 8.3A, 1.2v. 8.3A, 1.2v. 8.3A
The Whole Dimension LXWXH(mm): 685 x 560 x 575, 685 x 560 x 575, 685 x 560 x 575, 685 x 560 x 575
N. W/G. W(kg): 68/70, 73/75, 80/82, 86/88
20GP/40GP: 128/272, 128/272, 128/272, 128/272
Hong Kong Shirun International Co., Limited China Branch(Shirun Smart China Ltd. ) is an integrative manufacturer and exporter enterprise, such as: Chain saw, brush cutter, water pump, we also produce high quality sprayer, Lawn mower, gasoline and diesel generator, motor scooter, etc. Some of our products are with EPA, EEC Certificate; Most of them passed CE approval. For the aim to develop worldwide market, we constantly plan to design and develop new high quality products every year to lead China smart machinery.
Our warranty period is longer than common suppliers in China. Because the high quality is under '' ISO 9001 quality control'', serious inspection and checkout system, that is why the period is much longer than our competitors. For example, we offer 2 years warranty of EPA. EEC models, one year for other high quality products. And also, we keep ''best service'' in mind to satisfy our clients. We understand that all the clients' demand is the aim that we always stick to. All of the business rules must can bring us good fame and more and more continuous orders. Multilateral profits achieved among the clients and us.
If you need any helps on the products, please e-mail us today, your enquiry and suggestion are very appreciated and will be responded quickly. Thanks a lot.
