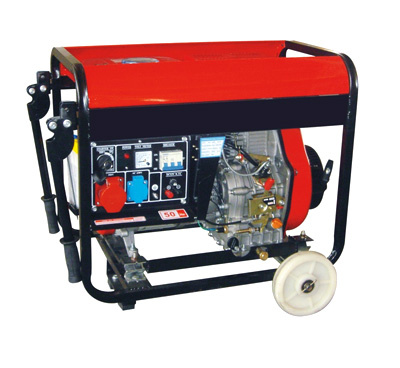

Model: SRS6500LN Diesel Generator
Engine Model: 186F
Engine Type: Forced air-cooled 4-stroke OHV single cylinder
Cylinder diameterxstroke(mm)DXS: 86 x72
Stopcock discharge(L): 0. 420
Rated rotation speed(r/min): 3000, 3600,
Rated power(Kw/Ps): 5. 8/7. 90, 6. 7/9. 10
Fuel consumption(g/kw/h): ≤ 4. 20
Crank cumgyrate direction deasil: viewed from flywheel
Cooling mode: Forced air-cooled
Lubricate mode: Pressure splash
Start system: Recol and hand-operated electric-operated
Generator Phase number: Single phase, Three phase
Generator Rated Frequency(Hz): 50/60, 50/60,
Rated Voltage(V): 220/110, 380/220,
Power Factor: 1. 0, 1. 0,
Rated Output (kw): 5. 5, 5. 5
Maximum AC Output(KW): 6. 0, 6. 0
DC Output in low voltage: 12v. 8. 3A
The whole Dimension LXWXH(mm): 750 x 490 x 655
N. W. /G. W. (KG): 112/115
20GP/40GP: 99/207
Hong Kong Shirun International Co., Limited China Branch(Shirun Smart China Ltd. ) is an integrative manufacturer and exporter enterprise, such as: Chain saw, brush cutter, water pump, we also produce high quality sprayer, Lawn mower, gasoline and diesel generator, motor scooter, etc. Some of our products are with EPA, EEC Certificate; Most of them passed CE approval. For the aim to develop worldwide market, we constantly plan to design and develop new high quality products every year to lead China smart machinery.
Our warranty period is longer than common suppliers in China. Because the high quality is under '' ISO 9001 quality control'', serious inspection and checkout system, that is why the period is much longer than our competitors. For example, we offer 2 years warranty of EPA. EEC models, one year for other high quality products. And also, we keep ''best service'' in mind to satisfy our clients. We understand that all the clients' demand is the aim that we always stick to. All of the business rules must can bring us good fame and more and more continuous orders. Multilateral profits achieved among the clients and us.
If you need any helps on the products, please e-mail us today, your enquiry and suggestion are very appreciated and will be responded quickly. Thanks a lot.
