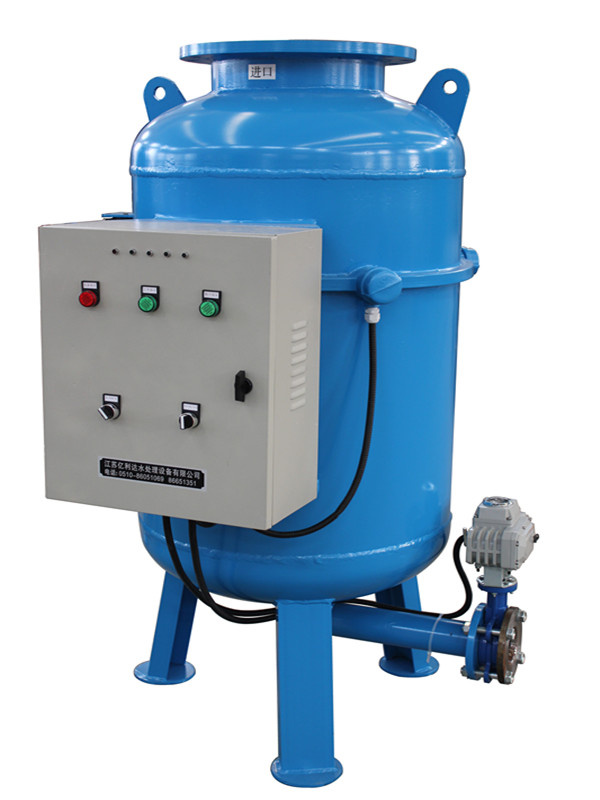

Full Procedures Comprehensive Water Processor

Product introduction
Comprehensive water processor is a comprehensive equipment integrating the functions like removal and prevention of the scale, sterilization and algae killing, anticorrosion and ultrafiltration. It is a water processor with the function of total process processing, automatic inspection and control, automatic switch the water flow direction under the conditions of large diameter and high load realize the automatic drainage. Focusing on the universal four main issues in the water circulation system like corrosion, scaling, bacteria and algae as well as turbidity of the water, the comprehensive water processor effectively solves the key problems like the interference and the restriction between the kinds of frequency spectrums and corona fields and realizes the comprehensive optimized processing of the water for scale prevention, anticorrosion, sterilization, algae killing and ultra filtration.



Work principle
1. Prevention and removal of the scale- After heating there is scale in the water with the hard scale like calcium ion and magnesium ion as the main components. But actually, there is also the compound scale made up of the composition of the rust scale, the dirt scale from the impurity sedimentation with the hard scale. The comprehensive water processor solves comprehensively the compound scale issue with the control of the hard scale and the dirt. The first is to filter and condense the kinds of substances which could form the scale and reduce the concentration to reach the aim of controlling the dirt and most of the hard scales through the 3 ml comprehensive filter of active iron filter membrane, stop of the mechanical variable aperture and corona field effect. The second is to transmit the energy of the certain radio frequency energy to the processed water with the transducer to make the molecule arrange in order and stop the calcium ion and magnesium ion to form the crystal nucleus and further to reach the aim of scale prevention.


2. Sterilization and algae killing- The survival and the reproduction of the bacteria and algae require certain environment. The comprehensive water processor first will concentrate and drain the suspended matter, part of microorganism and impurity in the water to effectively reduce the water turbidity. It will deteriorate the reproduction environment of the bacteria and algae to reach the aim of restraining the reproduction. And then the processor will take use of the energy of the high-frequency wave to destroy the enzyme system of the bacteria and algae to restrain the metabolism and further to control the reproduction of the bacteria and algae.


3. Anticorrosion and filtration- In principle, the corrosion resulted from the contact of the water and metal is the electrochemical corrosion that is the microbattery effect. The work principle of the comprehensive water processor is to weaken and restrain this effect. The first is to make the water produce the negative state of the electron with the special frequency spectrum and form a dynamic charge coat on the inner wall of the pipe with the skin effect and further to change the potential difference of the different metal compositions of the wall of the metal pipe so that the battery circuit is cleared to restrain the electrochemical corrosion. The second is to filter and condense through the 3 ml comprehensive filter of active iron filter membrane, stop of the mechanical variable aperture and corona field effect and then to reduce the turbidity and chromaticity by discharging the iron ion, manganese ion and suspended mailer with the backwashing so that to reduce the electric conductivity and restrain the electrochemical corrosion.






Scope of application
It is applicable for the circulating water system of the central air conditioning, industrial cooling circulating water system, heat exchange system, hot water boiler system and the water supply system for production and living.






Technical parameters:

Model	Water pipe diameter (mm)	Processing flow and scope(T/h)	Overall dimension				Net weight(kg)
			Φ1	Φ2	W	H
YS-50	50	10-18	325	25	425	700	175
YS-80	80	18-45	325	25	425	850	195
YS-100	100	45-60	430	40	570	850	265
YS-125	125	60-110	430	40	570	950	285
YS-150	150	110-158	430	50	570	1050	310
YS-200	200	158-280	525	50	665	1250	585
YS-250	250	280-440	525	65	665	1350	760
YS-300	300	440-640	630	65	790	1500	1085
YS-350	350	640-865	720	80	880	1700	1135
YS-400	400	865-1130	720	80	880	1700	1770
YS-450	450	1130-1430	800	100	960	1800	2200
YS-500	500	1430-1800	800	100	960	1800	2315
