Francis Turbine

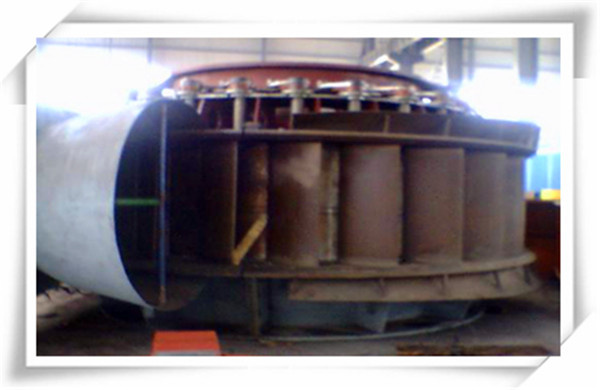

Francis turbine fits for the condition of head between 20m and 400m.The structure of this unit with mature technique and reliable operation is compact and it has high efficiency. So it is the main unit in China.
Generally speaking ,it is metal spiral case and the hydraulic flow state is good .We can provide you the single unit capacity ≤100MW.
| Turbine | Governor | Main valve | Generator |
| Type | Head(m) | Discharge(m3/s) | Speed(rpm) | Power(kW) | Regulation Work(kgm) | Diameter(mm) | Diameter(mm) | Press(Mpa) | Seat No. |
| HLHT100-WJ-60 | ≤45 | 2.18~2.97 | 600~1000 | 400~1000 | 300~600 |
| 800 | 6 | 1180 |
| HLHT100-WJ-71 | ≤45 | 2.9~3.69 | 500~750 | 500~1000 | 600~1000 |
| 1000 | 6 | 1430 |
| HLHT100-WJ-84 | ≤45 | 3.68~5.4 | 375~500 | 500~1600 | 600~1000 |
| 1250 | 6 | 1430~1730 |
| HLHT100-LJ-100 | ≤45 | 4.89~7.8 | 300~428.6 | 630~2500 | 600~1800 |
| 1500~1750 | 6 | 2150 |
| HLHT100-LJ-120 | ≤45 | 7.34~10.71 | 250~375 | 1000~3200 | 1000~3000 |
| 1750 | 6 | 2150~2600 |
| HLHT100-LJ-140 | ≤45 | 9.69~15.22 | 214.3~333.3 | 1250~5000 | 1800~5000 |
| 2000 | 6 | 2600~3250 |
| HLHT100-LJ-160 | ≤45 | 12.54~19.57 | 187.5~300 | 1600~6300 | 3000~ | 100 | 2250 | 6 | 3250 |
| HLHT100-LJ-180 | ≤45 | 16.27~23.63 | 166.7~250 | 2000~6300 |
| 100 | 2500 | 6 | 3250 |
| HLHT100-LJ-200 | ≤45 | 19.34~30.58 | 150~214.3 | 2500~10000 |
| 100 | 3400 | 6 | 3250~4250 |
| HLHT100-LJ-225 | ≤45 | 24.55~38.49 | 125~187.5 | 3200~12500 |
| 100 | 4000 | 6 | 4250 |
| HLHT100-LJ-250 | ≤45 | 30.31~47.02 | 115.4~187.5 | 4000~16000 |
| 100 | 4000 | 6 | 5100 |
| HLHT100-LJ-275 | ≤45 | 36.92~58.19 | 107.1~166.7 | 5000~20000 |
| 100 | 4500 | 6 | 5500 |
| HLHT100-LJ-300 | ≤45 | 44.78~65.36 | 93.8~136.4 | 6300~20000 |
| 100 | 4600 | 6 | 5500 |
| HLHT100-LJ-330 | ≤45 | 54.85~79.20 | 88.2~125 | 8000~25000 |
| 100~150 | 4600 | 6 | 6400 |
| HLHT100-LJ-410 | ≤45 | 138 | 107 | 45000 |
| 150 | 5000 | 6 | 9000 |
| HLHT110-WJ-71 | ≤60 | 3.19~4.34 | 500~750 | 630~1600 | 600~1000 |
| 1000 | 10 | 1430 |
| HLHT110-WJ-84 | ≤60 | 4.63~6.77 | 500~750 | 1000~3200 | 600~1800 |
| 1250 | 10 | 1430~1730 |
| HLHT110-LJ-100 | ≤60 | 6.22~9.84 | 428.6~600 | 1250~5000 | 1000~3000 |
| 1500 | 10 | 2150~2600 |
| HLHT110-LJ-120 | ≤60 | 9.25~13.45 | 375~500 | 2000~6300 | 3000~5000 |
| 1750 | 10 | 2600 |
| HLHT110-LJ-140 | ≤60 | 13.34~19.29 | 300~428.6 | 3200~10000 | 3000~ | 100 | 2000 | 10 | 2600~3250 |
| HLHT110-LJ-160 | ≤60 | 19.78~24.75 | 300~375 | 6300~12500 |
| 100 | 2500 | 10 | 3250 |
| HLHT110-LJ-180 | ≤60 | 23.18~32.27 | 250~375 | 6300~16000 |
| 100 | 2800 | 10 | 3250 |
| HLHT110-LJ-200 | ≤60 | 30.58~38.6 | 250~300 | 10000~20000 |
| 100 | 3400 | 10 | 4250 |
| HLHT110-LJ-250 | ≤60 | 44.13~60.21 | 187.5~250 | 12500~32000 |
| 100 | 4000 | 10 | 4250 |
| HLHT110-LJ-300 | ≤60 | 65.69~88.65 | 150~214.3 | 20000~50000 |
| 100~150 | 4600 | 10 | 5100~5500 |
| HLHT110-LJ-330 | ≤60 | 74.68~100.59 | 125~187.5 | 20000~50000 |
| 100~150 | 4600 | 10 | 5500~6400 |
| HLHT120-LJ-84 | ≤100 | 4.77~6.95 | 600~750 | 1600~5000 | 1000~1800 |
| 1250 | 16 | 1730 |
| HLHT120-LJ-100 | ≤100 | 6.94~10.16 | 500~750 | 2500~8000 | 1800~3000 |
| 1500 | 16 | 2150~2600 |
| HLHT120-LJ-120 | ≤100 | 9.61~14.98 | 375~600 | 3200~12500 | 3000~5000 |
| 1750 | 16 | 2150~2600 |
| HLHT120-LJ-140 | ≤100 | 13.6~19.98 | 333.3~500 | 5000~16000 |
| 100 | 2000 | 16 | 2600~3250 |
| HLHT120-LJ-160 | ≤100 | 17.54~27.8 | 300~428.6 | 6300~25000 |
| 100 | 2250 | 16 | 3250 |
| HLHT120-LJ-180 | ≤100 | 23~33.47 | 250~375 | 8000~25000 |
| 100 | 2500 | 16 | 3250 |
| HLHT120-LJ-200 | ≤100 | 27.25~43.10 | 250~375 | 10000~40000 |
| 100 | 2800 | 16 | 4250 |
| HLHT120-LJ-250 | ≤100 | 42.68~67.15 | 187.5~300 | 16000~63000 |
| 100 | 3400 | 16 | 5100 |
| HLHT120-LJ-300 | ≤100 | 63.11~92.3 | 150~250 | 25000~80000 |
| 100 | 4000 | 16 | 5500 |
| HLHT120-LJ-330 | ≤100 | 77.3~114.7 | 150~214.3 | 32000~100000 |
| 100 | 4500 | 16 | 6400 |
| HLHT130-WJ-71 | ≤200 | 1.63~2.2 | 750~1000 | 1000~2500 | 1000 |
| 800 | 25 | 1430 |
| HLHT130-WJ-84 | ≤200 | 2.2~3.42 | 600~1000 | 1250~5000 | 1000~1800 |
| 800 | 25 | 1730 |
| HLHT130-LJ-100 | ≤200 | 3.2~4.65 | 500~750 | 2000~6300 | 1000~1800 |
| 1000 | 25 | 2150 |
| HLHT130-LJ-140 | ≤200 | 6.26~9.1 | 375~600 | 4000~12500 | 3500 | 100 | 1300 | 25 | 2600 |
| HLHT130-LJ-180 | ≤200 | 10~14.61 | 300~428.6 | 6300~20000 |
| 100 | 1750 | 25 | 3250 |
| HLHT130-LJ-200 | ≤200 | 12.52~19.65 | 250~428.6 | 8000~32000 |
| 100 | 2000 | 25 | 4250 |
| HLHT130-LJ-250 | ≤200 | 19.2~30.91 | 214.3~300 | 12000~50000 |
| 100 | 2400 | 25 | 5500 |
| HLHT130-LJ-300 | ≤200 | 28.78~42.12 | 187.5~250 | 20000~63000 |
| 100 | 2800 | 25 | 5500 |
| HLHT130-LJ-330 | ≤200 | 35~51.5 | 166.7~250 | 25000~80000 |
| 100 | 2800 | 25 | 6400 |
| HLHT140-WJ-71 | ≤300 | 1.47~1.72 | 1000 | 1250~2500 | 600 |
| 800 | 40 | 1430 |
| HLHT140-WJ-84 | ≤300 | 1.84~2.69 | 600~1000 | 1250~4000 | 600~1000 |
| 800 | 40 | 1730 |
| HLHT140-LJ-100 | ≤300 | 3.12~3.62 | 750 | 3200~6300 | 1800 |
| 1000 | 40 | 2150 |
| HLHT140-LJ-140 | ≤300 | 6.06~9.85 | 500~750 | 6300~25000 | 3500 | 100 | 1300 | 40 | 2600~3250 |
| HLHT140-LJ-180 | ≤300 | 10.19~14.97 | 375~600 | 10000~32000 |
| 100 | 1600 | 40 | 3250 |
| HLHT140-LJ-200 | ≤300 | 12.12~19.23 | 333.3~500 | 12500~50000 |
| 100 | 2000 | 40 | 4250 |
| HLHT140-LJ-250 | ≤300 | 18.9~30.05 | 272.7~428.6 | 20000~80000 |
| 100~150 | 2000 | 40 | 5500 |
| HLHT140-LJ-300 | ≤300 | 28.17~38.13 | 250~333.3 | 32000~80000 |
| 150 | 2800 | 40 | 5500 |
| HLHT140-LJ-330 | ≤300 | 34.33~46.2 | 214.3~300 | 40000~100000 |
| 150 | 2800 | 40 | 6400 |
| HLHT150-WJ-71 | ≤400 | 1.1~1.29 | 1000 | 1000~1600 | 600 |
| 600 | 40 | 1430 |
| HLHT150-WJ-84 | ≤400 | 1.48~2.18 | 750~1000 | 1250~4000 | 600~1000 |
| 600 | 40 | 1730 |
| HLHT150-LJ-140 | ≤400 | 4.23~7.23 | 500~750 | 4000~20000 | 3500 | 100 | 1300 | 40 | 2600~3250 |
| HLHT150-LJ-250 | ≤400 | 13.11~22.43 | 250~428.6 | 12500~63000 |
| 100 | 2000 | 40 | 5500 |
| HLHT150-LJ-300 | ≤400 | 20.96~30.87 | 250~333.3 | 25000~80000 |
| 150 | 2000 | 40 | 5500 |
| HLHT150-LJ-330 | ≤400 | 23.77~39.03 | 214.3~300 | 25000~100000 |
| 150 | 2400 | 40 | 5500 |
