Kaplan S Type Water Turbine/ Tube Hydro Turbine for Low-Head (GD006-WZ-275)
Price: |
US $ 340000-344000/Set |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |

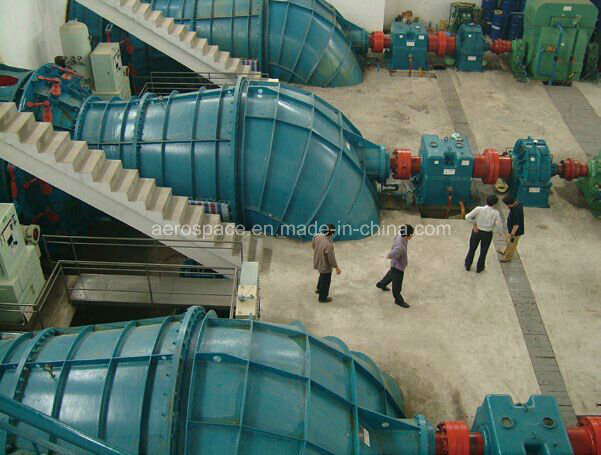

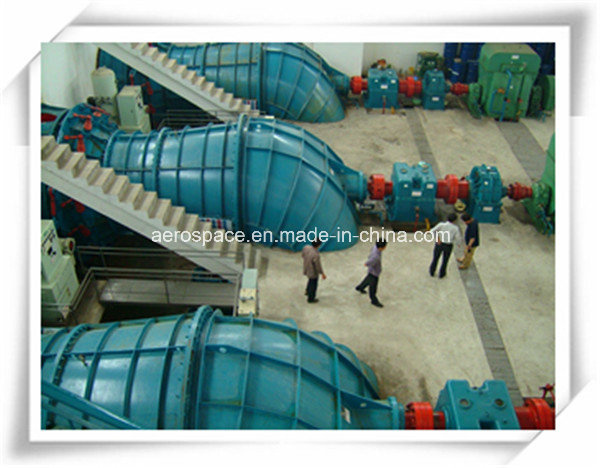

Kaplan S Type TurbineTube turbine [S-type turbine] is one kind of units that fits for the low-head and small-Capacity conditions. This turbine with compact structure and good hydraulic effect is easy to set and maintain.And its maximum diameter of runner ≤3.3m and its minimum diameter of runner is 0.6m.Turbine | Governor | Transmission |
|
Type | Head (m) | Discharge (m3/s) | Speed (rpm) | Power (kW) | Regulation Work (kgm) |
|
|
008 | | | | | | |
GD008-WZ-160 | 2.5-8 | 6.2-17.1 | 214.3-300 | 345-880 | 600-1800 | Speed increase or Directly coupling |
GD008-WZ-180 | 2.5-8 | 8.5-22.3 | 166.7-250 | 353-1136 | 600-1800 | Speed increase or Directly coupling |
GD008-WZ-200 | 2.5-8 | 10.6-21.8 | 166.7-250 | 440-1420 | 1000-3000 | Speed increase or Directly coupling |
GD008-WZ-225 | 2.5-8 | 15.6-36.2 | 166.6-235 | 686-1830 | 1800-4000 | Speed increase or Directly coupling |
GD008-WZ-250 | 2.5-8 | 20.2-38.1 | 125-223 | 889-2263 | 1800-4000 | Speed increase |
GD008-WZ-275 | 2.5-8 | 32-52 | 113-214.3 | 1110-2710 | 1800-5000 | Speed increase |
GD008-WZ-300 | 2.5-8 | 39.5-61.9 | 96-206 | 1196-3451 | 3000-6500 | Speed increase |
GD008-WZ-330 | 2.5-8 | 44.1-73.8 | 81-186 | 1309-4233 | 3000-8000 | Speed increase |
006 | | | | | | |
GD006-WZ-160 | 3.0-12 | 5.6-16.4 | 272.7-333.3 | 450-1396 | 600-1800 | Directly coupling |
GD006-WZ-180 | 3.0-12 | 7.2-22.3 | 250-300 | 560-1763 | 600-1800 | Directly coupling |
GD006-WZ-200 | 3.0-12 | 9-27.2 | 250-272.7 | 696-2198 | 1000-3000 | Directly coupling |
GD006-WZ-225 | 3.0-12 | 11.2-35 | 214.3-250 | 899-2688 | 1800-4000 | Directly coupling |
GD006-WZ-250 | 3.0-12 | 13.4-42.6 | 187.5-214.3 | 1100-3396 | 1800-4000 | Directly coupling |
GD006-WZ-275 | 3.0-12 | 17.6-51 | 113-214.3 | 1360-4600 | 1800-5000 | Speed increase or Directly coupling |
GD006-WZ-300 | 3.0-12 | 23.6-64.5 | 96-200 | 1783-5630 | 3000-10000 | Speed increase or Directly coupling |
GD006-WZ-330 | 3.0-12 | 30.8-76.4 | 71-200 | 2341-6731 | 4000-12000 | Speed increase or Directly coupling |
007 | | | | | | |
GD007-WZ-160 | 10.0-18 | 5.7-20.5 | 250-375 | 500-2860 | 600-1800 | Directly coupling |
GD007-WZ-180 | 10.0-18 | 7.2-25.9 | 214.3-333.3 | 626-3620 | 1000-3000 | Directly coupling |
GD007-WZ-200 | 10.0-18 | 8.8-31.6 | 214.3-300 | 772-4470 | 1800-4000 | Directly coupling |
GD007-WZ-225 | 10.0-18 | 11.2-40.5 | 187.5-272.7 | 978-5657 | 1800-4000 | Directly coupling |
GD007-WZ-250 | 10.0-18 | 13.8-50 | 166.6-250 | 1208-6984 | 1800-5000 | Directly coupling |
GD007-WZ-275 | 10.0-18 | 16.7-60.5 | 136.4-250 | 1461-8451 | 1800-8000 | Speed increase or Directly coupling |
GD007-WZ-300 | 10.0-18 | 20-72 | 125-214.3 | 1739-10058 | 3000-14000 | Speed increase or Directly coupling |
GD007-WZ-330 | 10.0-18 | 24.1-87.1 | 115.3-200 | 2104-12170 | 4500-17000 | Speed increase or Directly coupling |
Y269 | | | | | | |
GDY269-WZ-160 | 2.5-8 | 7.2-17.4 | 176.5-333 | 250-1030 | 600-1800 | Speed increase or Directly coupling |
GDY269-WZ-180 | 2.5-8 | 9.07-22 | 150-300 | 316-1304 | 600-1800 | Speed increase or Directly coupling |
GDY269-WZ-200 | 2.5-8 | 11,2-27.1 | 140-275 | 391-1610 | 1000-3000 | Speed increase |
GDY269-WZ-225 | 2.5-8 | 14.2-34.2 | 124-250 | 495-2037 | 1000-3000 | Speed increase |
GDY269-WZ-250 | 2.5-8 | 17.5-42.4 | 112-217 | 611-2515 | 1800-4000 | Speed increase |
GDY269-WZ-275 | 2.5-8 | 21.2-52.3 | 101-200 | 740-3044 | 1800-5500 | Speed increase |
GDY269-WZ-300 | 2.5-8 | 25.2-61 | 93-180 | 880-3622 | 3000-7000 | Speed increase |
GDY269-WZ-330 | 2.5-8 | 30.5-73.8 | 84-164 | 1064-4383 | 3500-9000 | Speed increase |
WELCOME TO OUR COMPANY AND VISIT!
Prod Model: |
GD006-WZ-275 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Head: |
3.0-12m |
Discharge: |
17.6-51 M3/S |
Power: |
1360-4600kw |
Regulation Work: |
1800-5000kgm |
Size: |
Medium &Small |
Bearing Support: |
Thin Oil Lubrication Cylindrical or Split Type |
Jiangsu Aerospace Hydraulic Equipments Co., Ltd. (formerly State-owned Gaoyou Water Pump Factory), a state grade II enterprise and the state high-tech enterprise, is the professional manufacturer of large-scale water pump and hydro turbine unit, designated by the former ministry of machinery industry; And a key enterprise of Jiangsu province machinery industry. Now it becomes the enterprise under the No. 6 Institute of China Aerospace Science and Technology Group, with strong supports of the application technology of aerospace fluid technology and materials. Our company is the domestic large production base with the first class comprehensive ability for design and manufacturing of medium and large pump, hydro-equipments.
The main products of the company: Medium-sized and large series axial flow pump and mixed flow pump (full adjustable, semi-regulation); Medium and large series of axial flow, mixed flow, tubular Hydro Generating Units; Open series centrifugal pump, mixed flow pump, the mobile pumping station and other industrial, municipal pumps.
The company covers an area of 20 hectares, has the modern industrial workshops of 45, 000 square meters, equipped with large-scale manufacturing and CNC processing center at the leading position among the same field in China. The Company has Hydraulic Machinery Research Institute and the hydraulic test center, for research and developing on high quality complete sets of hydraulic machinery. The quality system passed the ISO9002 international quality certification. The company has is qualified of import and export business. Large scale pump and turbine generator units, has received the awards of the National Science Conference, the pump research award of the National South-North Water Diversion Project, and national and provincial science and technology progress awards.
The company is located in Economic Development Zone of Gaoyou City, Jiangsu Province, China, close to the Beijing-Shanghai Expressway, Beijing- Shanghai High-speed Railway, Yangzhou Airports, the traffic is convenient. Warmly welcome friends from home and abroad to visit and instruct us.
