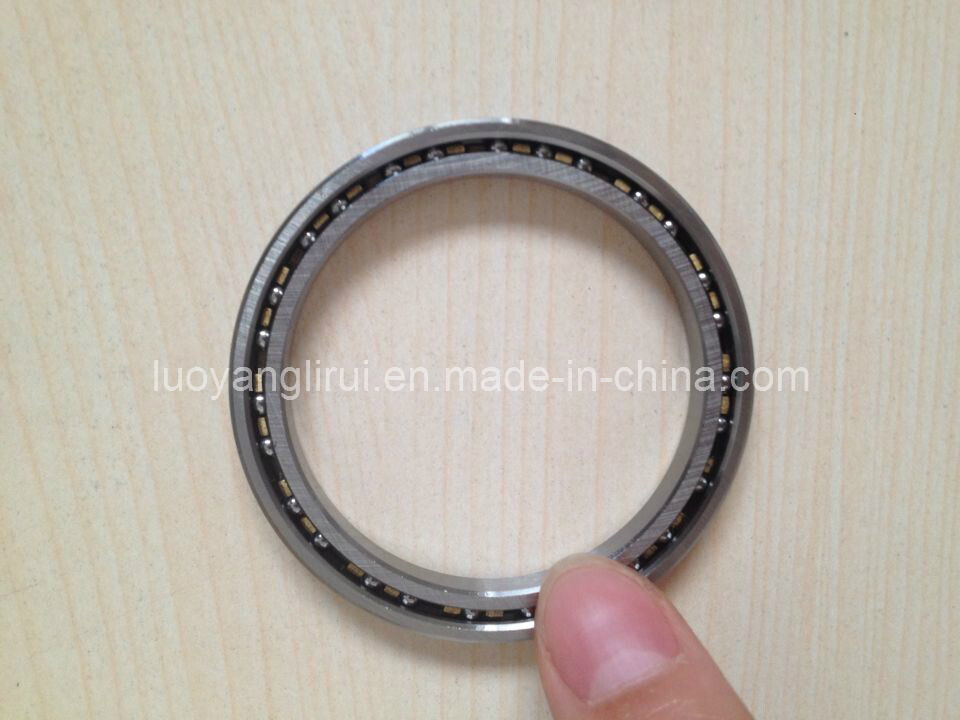

Four-Point Ball Bearing, Ka042xpo, Motorcycle, Auto Spare Part
| Price: |
US $ 0.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Paypal |
Luoyang Lirui Bearing Co. Ltd is a professional company engaged in the production of bearings, such as series of thin-wall deep groove ball bearing, angular contact bearing, four-point contact ball bearing.
There are three kinds of structure of thin-wall bearing, such as ARO, CPO, XPO, which are short for thin-wall angular contact series, thin-walled deep groove ball series and thin-wall four-point contact ball series.
We also specialize in the production of American KAYDON substitute precision thin section bearing, and Germany substitute thin section bearing, imported substitute bearing, and Japan NTN substitute precision thin section bearing.
Thin section four-point contact ball bearing is an ideal choice for supporting moment heavy pressure. It successfully satisfies the four points contact between raceway and steel ball in order to support moment load and reversing axial load. Though it can be applied to withstand light load, it cannot completely substitute the radial contact ball bearing and angular contact ball bearing when supporting pure radial load.
Four-point contact ball bearing can bear radial load and two-way axial load
A single bearing can replace the positive combination or the back combination of angular contact ball bearings.
They apply to pure axial load or synthetic load with larger axial load in it.
Contact Angle (alpha) will be formed when the bearing withstand axial load from any direction, so the ring can always be in contact with the ball in any online points
Main applicable cage: Copper alloy cutting cage
Main use: Aircraft jet engines, gas turbine.
| Model | Dimension |
|
| d | D | Width | L1 | L2 |
|
|
| inch |
|
| KA020XP0 | 2.00 | 2.50 | 0.25 | 2.19 | 2.31 |
|
| KA025XP0 | 2.50 | 3.00 | 0.25 | 2.69 | 2.81 |
|
| KA030XP0 | 3.00 | 3.50 | 0.25 | 3.19 | 3.31 |
|
| KA035XP0 | 3.50 | 4.00 | 0.25 | 3.69 | 3.81 |
|
| KA040XP0 | 4.00 | 4.50 | 0.25 | 4.19 | 4.31 |
|
| KA042XP0 | 4.25 | 4.75 | 0.25 | 4.44 | 4.56 |
|
| KA045XP0 | 4.50 | 5.00 | 0.25 | 4.69 | 4.81 |
|
| KA047XP0 | 4.75 | 5.25 | 0.25 | 4.94 | 5.06 |
|
| KA050XP0 | 5.00 | 5.50 | 0.25 | 5.19 | 5.31 |
|
| KA055XP0 | 5.50 | 6.00 | 0.25 | 5.69 | 5.81 |
|
| KA060XP0 | 6.00 | 6 .5 | 0.25 | 6.19 | 6.31 |
|
| KA065XP0 | 6.50 | 7.00 | 0.25 | 6.69 | 6.81 |
|
| KA070XP0 | 7.00 | 7.50 | 0.25 | 7.19 | 7.31 |
|
| KA075XP0 | 7.50 | 9.00 | 0.25 | 7.69 | 7.81 |
|
| KA080XP0 | 8.00 | 8.50 | 0.25 | 8.19 | 8.31 |
|
| KA090XP0 | 9.00 | 9.50 | 0.25 | 9.19 | 9.31 |
|
| KA100XP0 | 10.00 | 10.50 | 0.25 | 10.19 | 10.31 |
|
| KA110XP0 | 11.00 | 11.50 | 0.25 | 11.19 | 11.31 |
|
| KA120XP0 | 12.00 | 12.50 | 0.25 | 12.19 | 12.31 |
|
| KB020XP0 | 2.00 | 2.63 | 0.31 | 2.23 | 2.39 |
|
| KB025XP0 | 2.50 | 3.13 | 0.31 | 2.73 | 2.89 |
|
| KB030XP0 | 3.00 | 3.63 | 0.31 | 3.23 | 3.39 |
|
| KB035XP0 | 3.50 | 4.13 | 0.31 | 3.73 | 3.89 |
|
| KB040XP0 | 4.00 | 4.63 | 0.31 | 4.23 | 4.39 |
|
| KB042XP0 | 4.25 | 4.88 | 0.31 | 4.48 | 4.64 |
|
| KB045XP0 | 4.50 | 5.13 | 0.31 | 4.73 | 4.89 |
|
| KB047XP0 | 4.75 | 5.38 | 0.31 | 4.98 | 5.14 |
|
| KB050XP0 | 5.00 | 5.63 | 0.31 | 5.23 | 5.39 |
|
| KB055XP0 | 5.50 | 6.13 | 0.31 | 5.73 | 5.89 |
|
| KB060XP0 | 6.00 | 6.63 | 0.31 | 6.23 | 6.39 |
|
| KB065XP0 | 6.50 | 7.13 | 0.31 | 6.73 | 6.89 |
|
| KB070XP0 | 7.00 | 7.63 | 0.31 | 7 .231 | 7.39 |
|
| KB075XP0 | 7.50 | 8.13 | 0.31 | 7.73 | 7.89 |
|
| KB080XP0 | 8.00 | 8.63 | 0.31 | 8.23 | 8.39 |
|
| KB090XP0 | 9.00 | 9.63 | 0.31 | 9.23 | 9.39 |
|
| KB100XP0 | 10.00 | 10.63 | 0.31 | 10.23 | 10.39 |
|
| KB110XP0 | 11.00 | 11.63 | 0.31 | 11.23 | 11.39 |
|
| KB120XP0 | 12.00 | 12.63 | 0.31 | 12.23 | 12.39 |
|
| KB140XP0 | 14.00 | 14.63 | 0.31 | 14.23 | 14.39 |
|
| KB160XP0 | 16.00 | 16.63 | 0.31 | 16.23 | 16.39 |
|
| KB180XP0 | 18.00 | 18.63 | 0.31 | 18.23 | 18.39 |
|
| KB200XP0 | 20.00 | 20.63 | 0.31 | 20.23 | 20.39 |
|
| KC040XP0 | 4.00 | 4.75 | 0.38 | 4.28 | 4.47 |
|
| KC042XP0 | 4.25 | 5.00 | 0.38 | 4.53 | 4.72 |
|
| KC045XP0 | 4.50 | 5.25 | 0.38 | 4.78 | 4.97 |
|
| KC047XP0 | 4.75 | 5.00 | 0.38 | 5.03 | 5.22 |
|
| KC050XP0 | 5.00 | 5.75 | 0.38 | 5.28 | 5.47 |
|
| KC055XP0 | 5.50 | 6.25 | 0.38 | 5.78 | 5.97 |
|
| KC060XP0 | 6.00 | 6.75 | 0.38 | 6.28 | 6.47 |
|
| KC065XP0 | 6.50 | 7.25 | 0.38 | 6.78 | 6.97 |
|
| KC070XP0 | 7.00 | 7.75 | 0.38 | 7.28 | 7.47 |
|
| KC075XP0 | 7.50 | 8.25 | 0.38 | 7.78 | 7.97 |
|
| KC080XP0 | 8.00 | 8.75 | 0.38 | 8.28 | 8.47 |
|
| KC090XP0 | 9.00 | 9.75 | 0.38 | 9.28 | 9.47 |
|
| KC100XP0 | 10.00 | 10.75 | 0.38 | 10.28 | 10.47 |
|
| KC110XP0 | 11.00 | 11.75 | 0.38 | 11.28 | 11.47 |
|
| KC120XP0 | 12.00 | 12.75 | 0.38 | 12.28 | 12.47 |
|
| KC140XP0 | 14.00 | 14.75 | 0.38 | 14.28 | 14.47 |
|
| KC160XP0 | 16.00 | 16.75 | 0.38 | 16.28 | 16.47 |
|
| KC180XP0 | 18.00 | 18.75 | 0.38 | 18.28 | 18.47 |
|
| KC200XP0 | 20.00 | 20.75 | 0.38 | 20.28 | 20.47 |
|
| KD040XP0 | 4.00 | 5.00 | 0.50 | 4.37 | 4.63 |
|
| KD042XP0 | 4.25 | 5.25 | 0.50 | 4.62 | 4.88 |
|
| KD045XP0 | 4.50 | 5.50 | 0.50 | 4.87 | 5.13 |
|
| KD047XP0 | 4.75 | 5.75 | 0.50 | 5.12 | 5.38 |
|
| KD050XP0 | 5.00 | 6.00 | 0.50 | 5.37 | 5.63 |
|
| KD055XP0 | 5.50 | 6.50 | 0.50 | 5.87 | 6.13 |
|
| KD060XP0 | 6.00 | 7.00 | 0.50 | 6.37 | 6.63 |
|
| KD065XP0 | 6.50 | 7.50 | 0.50 | 6.87 | 7.13 |
|
| KD070XP0 | 7.00 | 8.00 | 0.50 | 7.37 | 7.63 |
|
| KD075XP0 | 7.50 | 8.50 | 0.50 | 7.87 | 8.13 |
|
| KD080XP0 | 8.00 | 9.00 | 0.50 | 8.37 | 8.63 |
|
| KD090XP0 | 9.00 | 10.00 | 0.50 | 9.37 | 9.63 |
|
| KD100XP0 | 10.00 | 11.00 | 0.50 | 10.37 | 10.63 |
|
| KD110XP0 | 11.00 | 12.00 | 0.50 | 11.37 | 11.63 |
|
| KD120XP0 | 12.00 | 13.00 | 0.50 | 12.37 | 1 2.63 |
|
| KD140XP0 | 14.00 | 15.00 | 0.50 | 14.37 | 14.63 |
|
| KD160XP0 | 16.00 | 17.00 | 0.50 | 16.37 | 16.63 |
|
| KD180XP0 | 18.00 | 19.00 | 0.50 | 18.37 | 18.63 |
|
| KD200XP0 | 20.00 | 21.00 | 0.50 | 20.37 | 20.63 |
|
| KF040XP0 | 4.00 | 5.50 | 0.75 | 4.56 | 4.95 |
|
| KF042XP0 | 4.25 | 5.75 | 0.75 | 4.81 | 5.20 |
|
| KF045XP0 | 4.50 | 6.00 | 0.75 | 5.06 | 5.45 |
|
| KF047XP0 | 4.75 | 6.25 | 0.75 | 5.31 | 5.70 |
|
| KF050XP0 | 5.00 | 6.50 | 0.75 | 5.56 | 5.95 |
|
| KF055XP0 | 5.50 | 7.00 | 0.75 | 6.06 | 6.45 |
|
| KF060XP0 | 6.00 | 7.50 | 0.75 | 6.56 | 6.95 |
|
| KF065XP0 | 6.50 | 8.00 | 0.75 | 7.06 | 7.45 |
|
| KF070XP0 | 7.00 | 8.50 | 0.75 | 7.56 | 7.95 |
|
| KF075XP0 | 7.50 | 9.00 | 0.75 | 8.06 | 8.45 |
|
| KF080XP0 | 8.00 | 9.50 | 0.75 | 8.56 | 8.95 |
|
| KF090XP0 | 9.00 | 10.50 | 0.75 | 9.56 | 9.95 |
|
| KF100XP0 | 10.00 | 11.50 | 0.75 | 10.56 | 10.95 |
|
| KF110XP0 | 11.00 | 12.50 | 0.75 | 11.56 | 11.95 |
|
| KF120XP0 | 12.00 | 13.50 | 0.75 | 12.56 | 12.95 |
|
| KF140XP0 | 14.00 | 15.50 | 0.75 | 14.56 | 14.95 |
|
| KF160XP0 | 16.00 | 17.50 | 0.75 | 16 .555 | 16.95 |
|
| KF180XP0 | 18.00 | 19.50 | 0.75 | 18.56 | 18.95 |
|
| KF200XP0 | 20.00 | 21.50 | 0.75 | 20.56 | 20.95 |
|
| KG040XP0 | 4.00 | 6.00 | 1.00 | 4.74 | 5.26 |
|
| KG042XP0 | 4.25 | 6.25 | 1.00 | 4.99 | 5.51 |
|
| KG045XP0 | 4.50 | 6.50 | 1.00 | 5.24 | 5.76 |
|
| KG047XP0 | 4.75 | 6.75 | 1.00 | 5.49 | 6.01 |
|
| KG050XP0 | 5.00 | 7.00 | 1.00 | 5.74 | 6.26 |
|
| KG055XP0 | 5.50 | 7.50 | 1.00 | 6.24 | 6.76 |
|
| KG060XP0 | 6.00 | 8.00 | 1.00 | 6.74 | 7.26 |
|
| KG065XP0 | 6.50 | 8.50 | 1.00 | 7.24 | 7.76 |
|
| KG070XP0 | 7.00 | 9.00 | 1.00 | 7.74 | 8.26 |
|
| KG075XP0 | 7.50 | 9.50 | 1.00 | 8.24 | 8.76 |
|
| KG080XP0 | 8.00 | 10.00 | 1.00 | 8.74 | 9.26 |
|
| KG090XP0 | 9.00 | 11.00 | 1.00 | 9.74 | 10.26 |
|
| KG100XP0 | 10.00 | 12.00 | 1.00 | 10.74 | 11.26 |
|
| KG110XP0 | 11.00 | 13.00 | 1.00 | 11.74 | 12.26 |
|
| KG120XP0 | 12.00 | 14.00 | 1.00 | 12.74 | 13.26 |
|
| KG140XP0 | 14.00 | 16.00 | 1.00 | 14.74 | 15.26 |
|
| KG160XP0 | 16.00 | 18.00 | 1.00 | 16.74 | 17.26 |
|
| KG180XP0 | 18.00 | 20.00 | 1.00 | 18.74 | 19.26 |
|
| KG200XP0 | 20.00 | 22.00 | 1.00 | 20.74 | 21.26 |
|
| Prod Model: |
KA042XPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter: |
4.2500 Inches |
| Inner Diameter: |
4.7500 Inches |
| Breadth: |
0.2500 Inch |
| Weight: |
0.091 Kg |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Medium and Large(',120-190mm) |
| Load Direction: |
Radial Bearing |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
