Solar panel

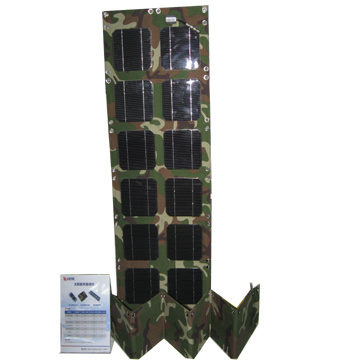

Solar panel using Ersol solar cell
Sell at real power, Offer 2yrs Warranty
Pm no less than 90% in 10 yrs
Electrical Characteristics
Module Type
NES
NES36-6-40M
Max. Poweratt(Peak)
Pm(W)
130
Power tolerance
(%)
± 3%
Max. System voltage
(VDC)
1000
Max. Power voltage
Vmp (V)
17.5
Max. Power current
Imp(A)
7.43
Open circuit voltage
Voc(V)
22.2
Short circuit current
Isc(A)
8.04
Specification(Mechanical Characteristics )
Number, type and arrangement of cells
36PCS. Monocrystalline silicon (4× 9)
Cell Size
Mm
156× 156
Dimensions: Length*Width*Height
Mm
1482× 676× 35
Weight
Kg
12
Cable type, Diameter and Length
Copper core cable, 4mm2, TUV certified, 900mm
Frame(type, material)
Aluminum Alloy
Front glass
High Transmission, Low Iron, Tempered Glass, 3.2mm
Absolute Ratings
Dielectric Insulation Voltage
VDC
3000 max
Operating Temperature
-45~+85
Storage Temperature
-45~+85
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods. Our Testing Equipments & Machinery are from high quality manufacturers from around the world and also from within China. We also have the largest setup for the lowest frequency Anechoic Chamber in China. Our Computer Aided Design Center (CAD), Simulation Laboratory, Testing Centre, Precision Component Manufacturing Center are considered the best in the industry.
New Energy Sector is the primary division of No. 36 Research Institute, which specializes in Design, Development, Manufacture, and Distribution of High Quality Solar Modules & Solar Application System and offers Technology Services. The products include High Efficiency Mono Crystalline & Polycrystalline Solar Panel ranging between 10 Watts & 300 Watts; Solar Power Generation Systems for Home & Commercial establishments for use with different appliances; Solar Off Network / Grid connected Power Generation Systems and customized products tailor made to specific requirements. The New Energy Sector is equiped with advanced testing and manufacturing devices to cater with and excellent product line. We are capable of conducting a thorough Analysis & Evaluation of Raw Materials, Performance & Finished Products. Our products have been Certified by bodies such as: TUV, CGC, and CE.
