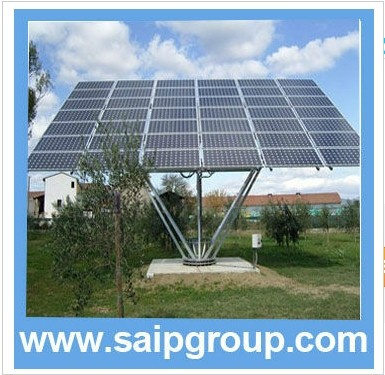

Flat Dual-Axis Tracker Solar Tracking System (SP-ZTF-S-7)
~~~~~~~~~~~~~~~~~``
Name: Flat dual-axis tracker
Type: 1-6kw
Remark: Traditional Dual-axis tracker
~~~~~~~~~~~~~~~~~~~~
Specifications:
~~~~~~~~~
1. Flat dual-axis tracker Solar Tracking System
2. Accuracy&Efficiency;
3. Safety&Durability
4. Quick&Easy Installation
5. Cost-effective
ABOUT US:
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
|
Name |
Unit |
SPZTF-S-1 |
SPZTF-S-2 |
SPZTF-S-5 |
SPZTF-S-6 |
SPZTF-S-10 |
SPZTF-S-17 |
|
Type of pv panels(suggest) |
|
180W, 1580*808*45mm |
|
Quantity of panels |
pcs |
8 |
15 |
28 |
36 |
60 |
99 |
|
Arrangement of panels |
R*C |
4×2 |
5×3 |
7×4 |
4×9 |
5×12 |
11×9 |
|
Network area |
M 2 |
10.56 |
19.68 |
47.27 |
47.57 |
78.44 |
132.53 |
|
Tracking method |
|
Dual-axis |
Dual-axis |
Dual-axis |
Dual-axis |
Dual-axis |
Dual-axis |
|
Motor power |
W |
≤20 |
≤20 |
≤20 |
≤20 |
≤40 |
≤50 |
|
Rotational angle(horizontal) |
° |
360 |
360 |
360 |
360 |
360 |
360 |
|
Rotational angle(vertical) |
° |
180 |
180 |
180 |
180 |
180 |
180 |
|
Tracking accuracy |
°/s |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
|
Peak power |
KWP |
1.45 |
2.7 |
5.04 |
6.3 |
10.8 |
17.8 |
|
Size |
mm |
3200*3300*2650 |
4800*4100*3050 |
7984*5920*3958 |
7432*6400*4000 |
9830*7980*4230 |
14468*9160*4360 |
|
Max anti-wind speed |
m/s |
34 |
34 |
34 |
34 |
34 |
34 |
|
machanical life |
year |
30 |
30 |
30 |
30 |
30 |
30 |
|
Load bearing weight |
KG |
130 |
250 |
460 |
585 |
970 |
1600 |
|
N.W.(not include panels) |
KG |
800 |
900 |
1250 |
1800 |
2900 |
4000 |
|
Working temperature |
|
Temperature range-40°C~+70°C |
|
Ambient humidity |
|
RH≤80% |
|
Material |
|
Hot-dipped galvanized steel |
|
Packaging volumn(1 unit) |
M 3 |
3.38 |
6.05 |
8.78 |
9.77 |
11.45 |
13.75 |
|
G.W. |
KG |
850 |
960 |
1310 |
1860 |
2950 |
4100 |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
