Farming Crops Irrigation Magnetic Water Descaling System Tired of hard water problems? Our magnetic water treatment systems are specifically designed to soften water by removing scale buildup in your pipes and hot water tank. You can prevent future buildup or even remove current buildup that has accumulated over the years. Purified water is healthy for humans, animals, and plantsPhysical Benefits of Magnetized Water
1. Salinity
Magnetic treatment of saline irrigation water can be used as an effective method for soil desalinization.
The application of a magnetic field on water decreases the hydration of salt ions and colloids, having a positive effect on salt solubility, accelerated coagulation and salt crystallization. Field experiments
conducted in Egypt showed that, sandy loam soil pots irrigated with normal highly saline water of an
electrical conductivity value of 8.2 mmohs/cm retained salts compared to pots irrigated with
magnetized saline water. The study showed that MW increased leaching of excess soluble salts,
lowered soil alkalinity and dissolved slightly soluble salts.
2. pH
Joshi and Kamat and Busch et al. have observed pH changes with the application of a magnetic
field to water. Parsons et al. confirmed a decrease in pH in a study using sodium hydroxide to
stabilize pH at 8.5 then applying magnetic treatment to the solution. In this study, the magnetically
treated water required up to 2.5 times more sodium hydroxide compared to the controls to stabilize
pH. pH has been shown to decrease from 9.2 to 8.5 after magnetic treatment in a system with
Ca(OH)2 , where the degree of the reduction was dependent on the strength of the magnetic
treatment. Busch et al. showed an initial decrease in pH from 7.0 to 6.5, that was followed by an
increase in pH with time from 7.5 - 8.0.

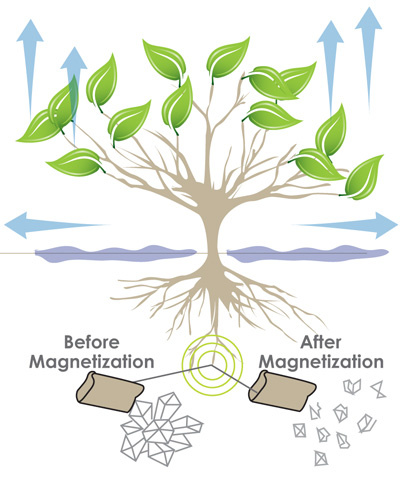

3. Permeability
Water becomes degassed in the process of being magnetized and this degassing increases soil
permeability, which creates an increase in irrigation efficiency (Bogatin et al., 1999). In addition
to soil permeability, MW water interacts with the structural calcium in cell membranes, making the
cells more permeable (Goldsworthy et al., 1999). The reduced surface tension observed in MW
results in better infiltration of water and a reduction in water and chemical use. At the Indianapolis
500 Brickyard Crossing Golf Course a MTD has been installed to treat irrigation water. An
improvement in the infiltration distribution of water has all but eliminated wet and dry area,
reducing 80 hours of weekly hand watering to less than 10 hours a week (Ritchie & Lehnen, 2001).
The improvement in uniformity distribution of irrigation water has saved money in labor, hand watering
and roping off wet areas, and golf cart damage.
How it works Water is "hard" when it contains calcium, magnesium, lime scale, iron, bacteria, or minerals.
Over time, these particles will stick to pipe walls and begin to accumulate, forming scale buildup.
When a magnetic field is applied to the particles they become suspended in water, allowing them to flow with ease and avoid sticking to walls.
Our water treatment systems use powerful neodymium magnets to purify your water. Other systems use weaker, ceramic magnets. Neodymium magnets are seven times stronger than ceramic magnets!
Applications Agriculture Irrigation
Scale and Hardness Control
Golf Course & Turf Irrigation
Well Drilling and Pump & Well Maintenance
Natural Gas Combustion
Wastewater, and More!

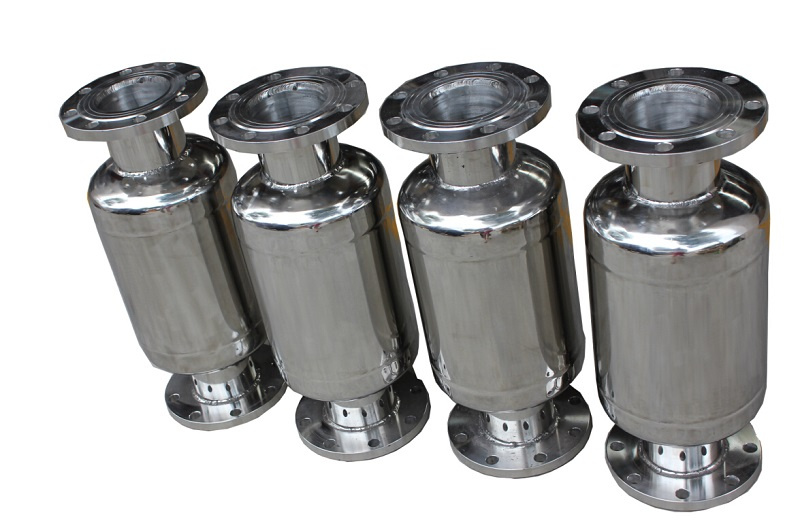

Technical parameters:model | inlet and outlet | dimension(mm) | flow rate | Vertical center | Working medium | weight |
mm | inch | diameter*length | m 3 /h | strong magnetism (mt) | temperature ( . C) | Kg |
YLC-1 | 25 | 1 | 108×330 | 4.9 | 160 | 0-90 | 10 |
YLC-1.5 | 40 | 1.5 | 108×330 | 12 | 160 | 0-90 | 20 |
YLC-2 | 50 | 2 | 159×450 | 19 | 160 | 0-90 | 30 |
YLC-2.5 | 65 | 2.5 | 159×450 | 28 | 160 | 0-90 | 40 |
YLC-3 | 80 | 3 | 159×450 | 50 | 160 | 0-90 | 45 |
YLC-4 | 100 | 4 | 219×560 | 80 | 160 | 0-90 | 50 |
YLC-5 | 125 | 5 | 219×600 | 125 | 160 | 0-90 | 60 |
YLC-6 | 150 | 6 | 273×740 | 180 | 160 | 0-90 | 70 |
YLC-8 | 200 | 8 | 325×790 | 320 | 160 | 0-90 | 90 |
YLC-10 | 250 | 10 | 377×850 | 480 | 160 | 0-90 | 110 |
YLC-12 | 300 | 12 | 426×800 | 600 | 160 | 0-90 | 130 |
YLC-14 | 350 | 14 | 478×950 | 750 | 160 | 0-90 | 160 |
YLC-16 | 400 | 16 | 530×1000 | 850 | 160 | 0-90 | 210 |
YLC-18 | 450 | 18 | 630×1050 | 950 | 160 | 0-90 | 260 |
YLC-20 | 500 | 20 | 720×1100 | 1100 | 160 | 0-90 | 330 |
