| Price: | US $ 12000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Factory Price 10kw -1000kw biogas Cogeneration Biogas Generator
Biogas generator core features :
Original manufacturer supply
Rate power supply range: 10kw - 1100kw
Prime power supply range: 8kw - 880kw
Warranty: 12 months, life-long after sale service
Capacity: 1CBM biogas produce 1.5-2.5kw.h power
Fuel: Household waste, animal waste, other organic exist in waste water and rubbish etc.
Biogas Generator parameter:
Model Number | LHNG10-1000 |
Brand Name | Lvhuan |
Rated Power | 10-1000 |
Rated Speed | 1000/1500rpm |
Rated Frequency | 50/60 Hz |
Rated Voltage | 400/230V |
Phase | AC 3 phase 4 wire |
Starting system | 24V DC electric motor |
Cooling method | water cooler |
Lubricant method | passive and splash |
Isolation class | H |
Protection | IP23 |
Power Factor | 0.8 lagging |
Exciting method | Brush less |
Voltage Stability | ≤±2% |
Voltage Transient | ≤±10% |
Voltage Stable time | ≤1 s |
Engine Capacity | 1.81-71.45L |
Cylinder Number | 2-16 |
Cylinder Diameter | 100-190mm |
Range | 115-210mm |
Heat consumption | ≤9.8mj/kw.h |
Oil consumption | ≤1.63g/kw. |
Biogas generator Work site requirements:
The work site needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required.
Biogas generator Fuel gas requirement:
1m distance away from generator set's pressure regulating valve of inlet
Temperature of biogas ≤40ºC;
Pressure of biogas 5~20kPa, velocity of pressure≤ 1kPa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Coke tar content≤20mg/Nm3;
Impurities particle size≤5μm; impurity content≤30mg/Nm3;
Moisture Content of biogas ≤40g/Nm3;
Biogas gas calorific value≥4.2MJ/Nm3.
Purification of biogas have a significant impact on machine life and continuous running time!

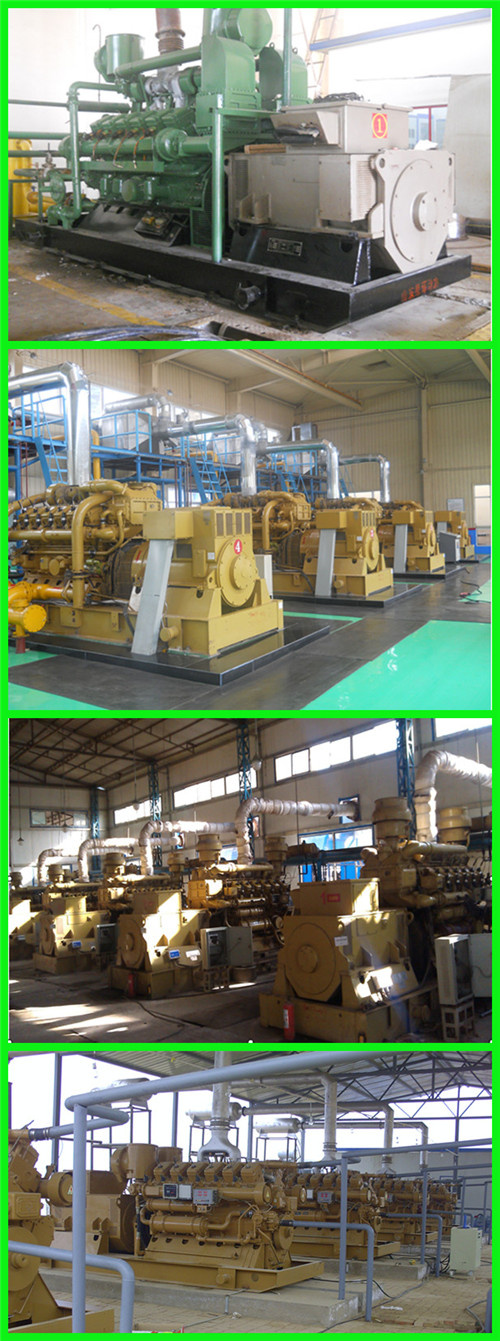

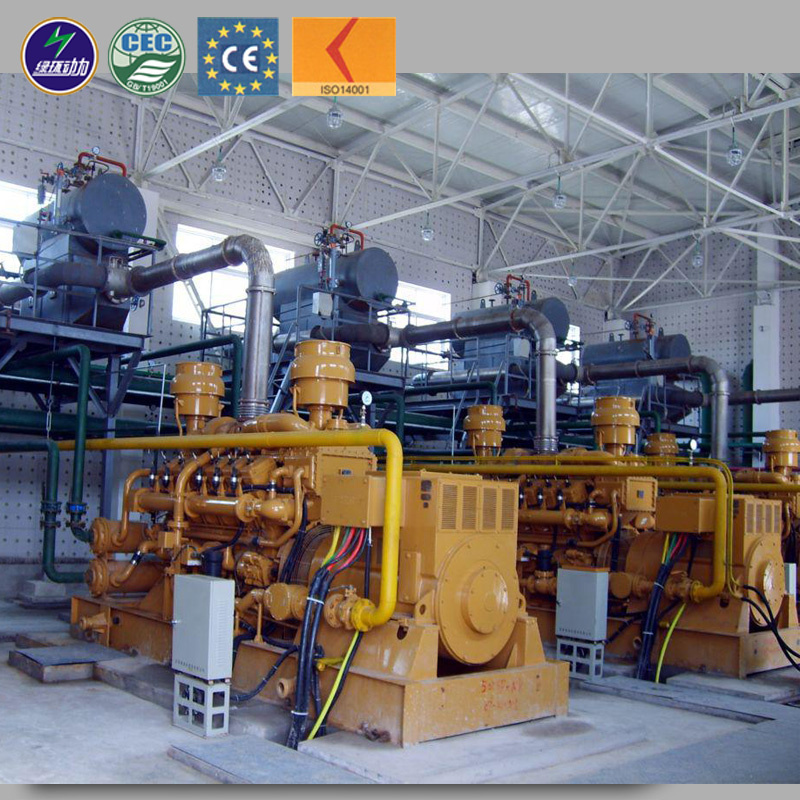

Biogas generator photos:
Biogas generator features:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Biogas generator Supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.

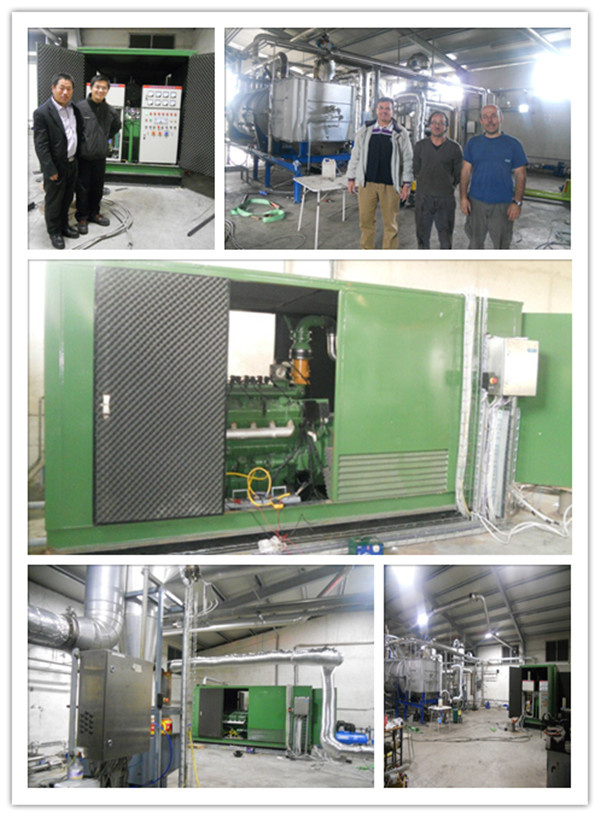

On sile installation in Italy:
Visitors form oversea:
RFQ:
1.How to choose the right model? A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power. The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Any questions, please contact me freely.
| Prod Model: | Biogas Generator |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Biogas Generator Fuel: | Biogas Generator Standard Biogas Power Generator |
| Biogas Generator Applied Voltage: | 220V / 380V |
| Biogas Generator Frequency: | 50/60Hz |
| Power Factor: | 0.8 |
| Speed: | 1000/1500rpm |
| Voltage Regulation Mode: | Automatic |
| Exciting Mode: | Brussless |
| Biogas Generator Warranty: | 12 Months |
| Installation Abroad: | Yes, Guide Installation |
| Biogas Generator By Product: | Hot Water |
| Gas Source: | Biogas |
